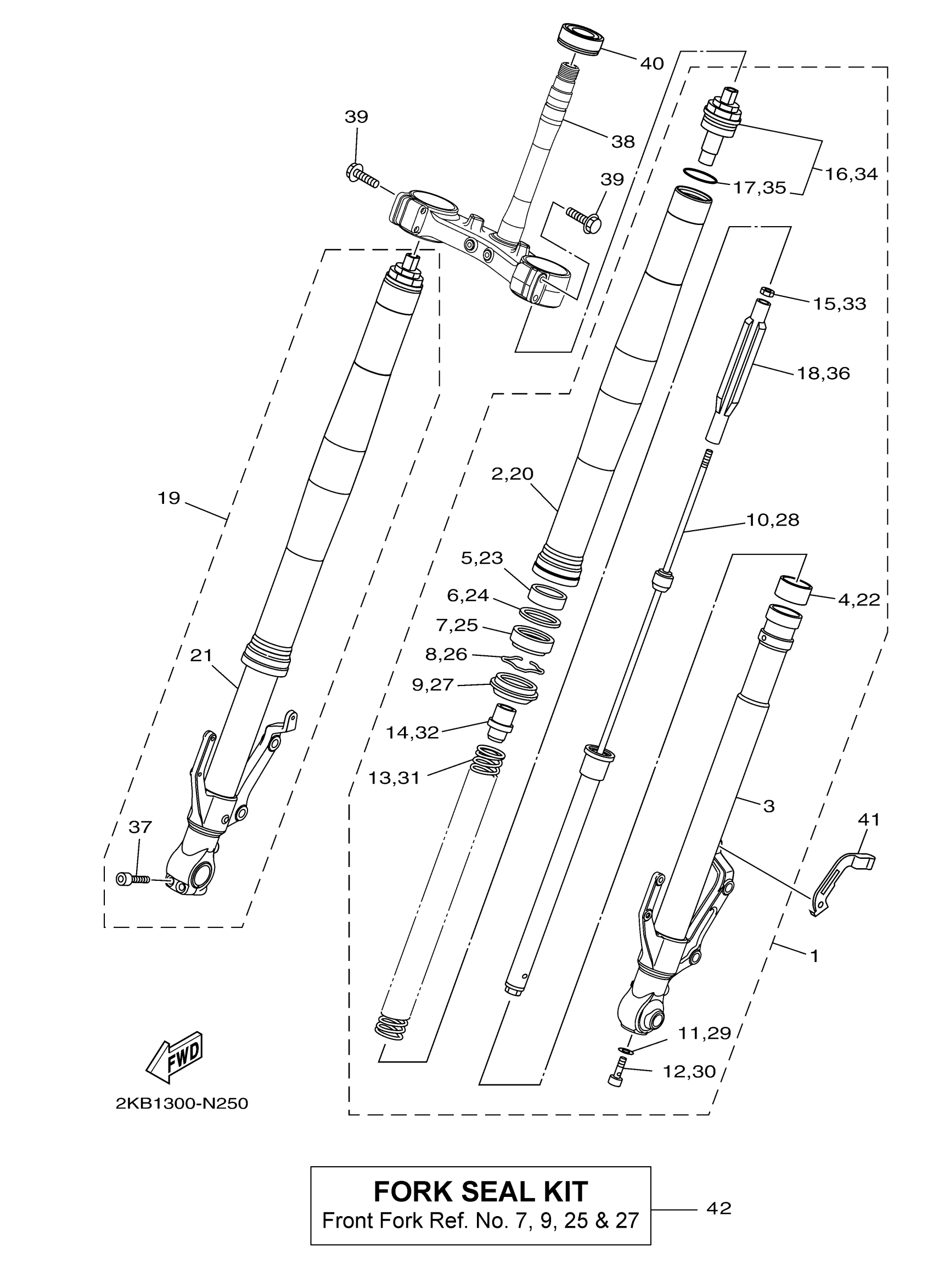

Yamaha XTZ12EHL (SUPER TENERE ES) 2KBT 2017 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

2KB-23102-01-00

Unavailable

2

TUBE, OUTER (RIGHT)

23P-23136-10-00

Unavailable

3

INNER TUBE COMP.1

2KB-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5EB-23171-00-00

$26.98

5

METAL, SLIDE 1

5EB-23125-00-00

$25.47

6

WASHER

4V4-23146-L0-00

$5.55

7

OIL SEAL

4PU-23145-01-00

$19.58

8

RING, SNAP

4V4-23153-L0-00

$8.08

9

SEAL, DUST

4PU-23144-00-00

$18.82

10

CYLINDER COMP., FR

2KB-23170-10-00

$270.71

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

SPRING, FRONT FORK

2KB-23141-00-00

Unavailable

14

SPACER

2KB-23118-00-00

Unavailable

15

NUT

3LC-23357-00-00

$6.33

16

BOLT, CAP

2KB-23111-00-00

Unavailable

17

O-RING

39P-23147-00-00

Unavailable

18

GUIDE, SPRING

2KB-23117-00-00

Unavailable

19

FRONT FORK ASSY (R

2KB-23103-01-00

Unavailable

20

TUBE, OUTER (RIGHT)

23P-23136-10-00

Unavailable

21

INNER TUBE COMP.2

2KB-23120-00-00

Unavailable

22

PISTON, FRONT FORK

5EB-23171-00-00

$26.98

23

METAL, SLIDE 1

5EB-23125-00-00

$25.47

24

WASHER

4V4-23146-L0-00

$5.55

25

OIL SEAL

4PU-23145-01-00

$19.58

26

RING, SNAP

4V4-23153-L0-00

$8.08

27

SEAL, DUST

4PU-23144-00-00

$18.82

28

CYLINDER COMP., FR

2KB-23170-00-00

Unavailable

29

GASKET

509-23158-L0-00

$13.39

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

31

SPRING, FRONT FORK

2KB-23141-00-00

Unavailable

32

SPACER

2KB-23118-00-00

Unavailable

33

NUT

3LC-23357-00-00

$6.33

34

BOLT, CAP

2KB-23111-00-00

Unavailable

35

O-RING

39P-23147-00-00

Unavailable

36

GUIDE, SPRING

2KB-23117-00-00

Unavailable

37

BOLT,SOCKET

91314-08040-00

Unavailable

38

UNDER BRACKET COMP.

23P-23340-00-00

Unavailable

39

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

40

BEARING(4SR)

93332-00081-00

Unavailable

41

HOLDER, BRAKE HOSE 1

23P-25875-00-00

Unavailable

42

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
