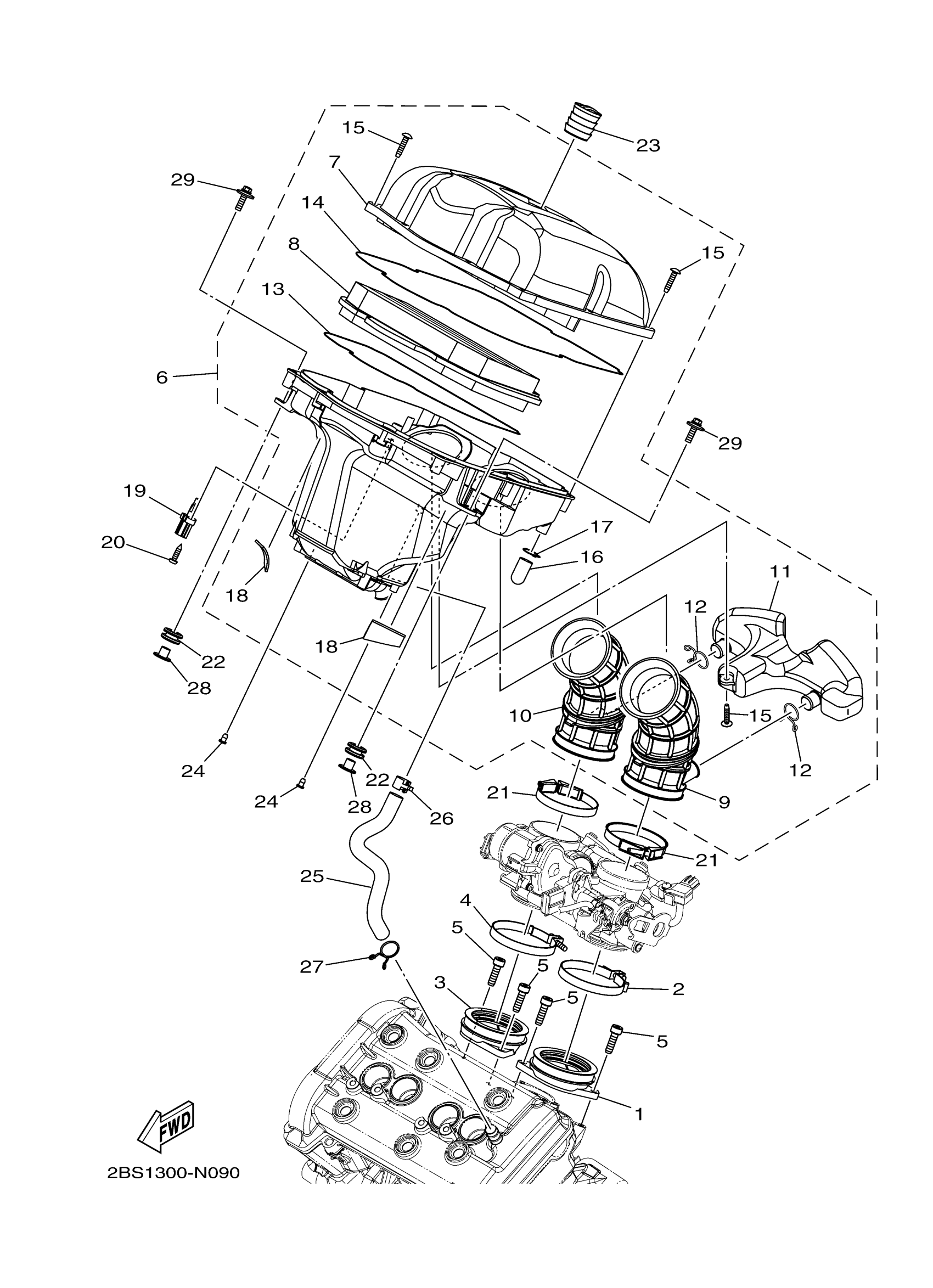

Yamaha XTZ12EGCB (SUPER TENERE ES CA) 2KBP 2016 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

23P-13586-00-00

$84.99

2

HOSE CLAMP ASSY

90450-69001-00

Unavailable

3

JOINT, CARBURETOR 2

23P-13596-00-00

$84.99

4

HOSE CLAMP ASSY

90450-69001-00

Unavailable

5

BOLT,SOCKET HEAD

91314-06020-00

$1.49

6

AIR CLEANER ASSY.

23P-14410-00-00

Unavailable

7

CASE, AIR CLEANER 2

23P-14421-00-00

Unavailable

8

ELEMENT, AIR CLEANER

23P-14451-00-00

$40.99

9

JOINT, AIR CLEANER 1

23P-14453-00-00

Unavailable

10

JOINT, AIR CLEANER 2

23P-14463-00-00

Unavailable

11

CHAMBER, AIR

23P-13581-00-00

Unavailable

12

CLIP

90467-180A1-00

$8.49

13

SEAL

23P-14452-00-00

$7.99

14

SEAL

23P-14462-00-00

$9.99

15

SCREW, ROUND TAPPING

90160-05013-00

$8.49

16

PIPE, DRAIN

23P-1443E-00-00

Unavailable

17

CLIP

23P-14159-00-00

Unavailable

18

DAMPER

5JW-2139X-00-00

Unavailable

19

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

20

SCREW, PAN TAP.2 SLIT

97707-50620-00

Unavailable

21

HOSE CLAMP ASSY

90450-67003-00

Unavailable

22

GROMMET (16R)

90480-14329-00

Unavailable

23

PLUG

23P-14862-00-00

Unavailable

24

PLUG 378212790000

90338-05056-00

Unavailable

25

PIPE, BREATHER 1

23P-11166-10-00

Unavailable

26

CLIP

90467-15168-00

Unavailable

27

CLIP

90467-140A4-00

Unavailable

28

COLLAR(735)

90387-06033-00

Unavailable

29

BOLT, WITH WASHER(2WG)

90119-06172-00

Unavailable
