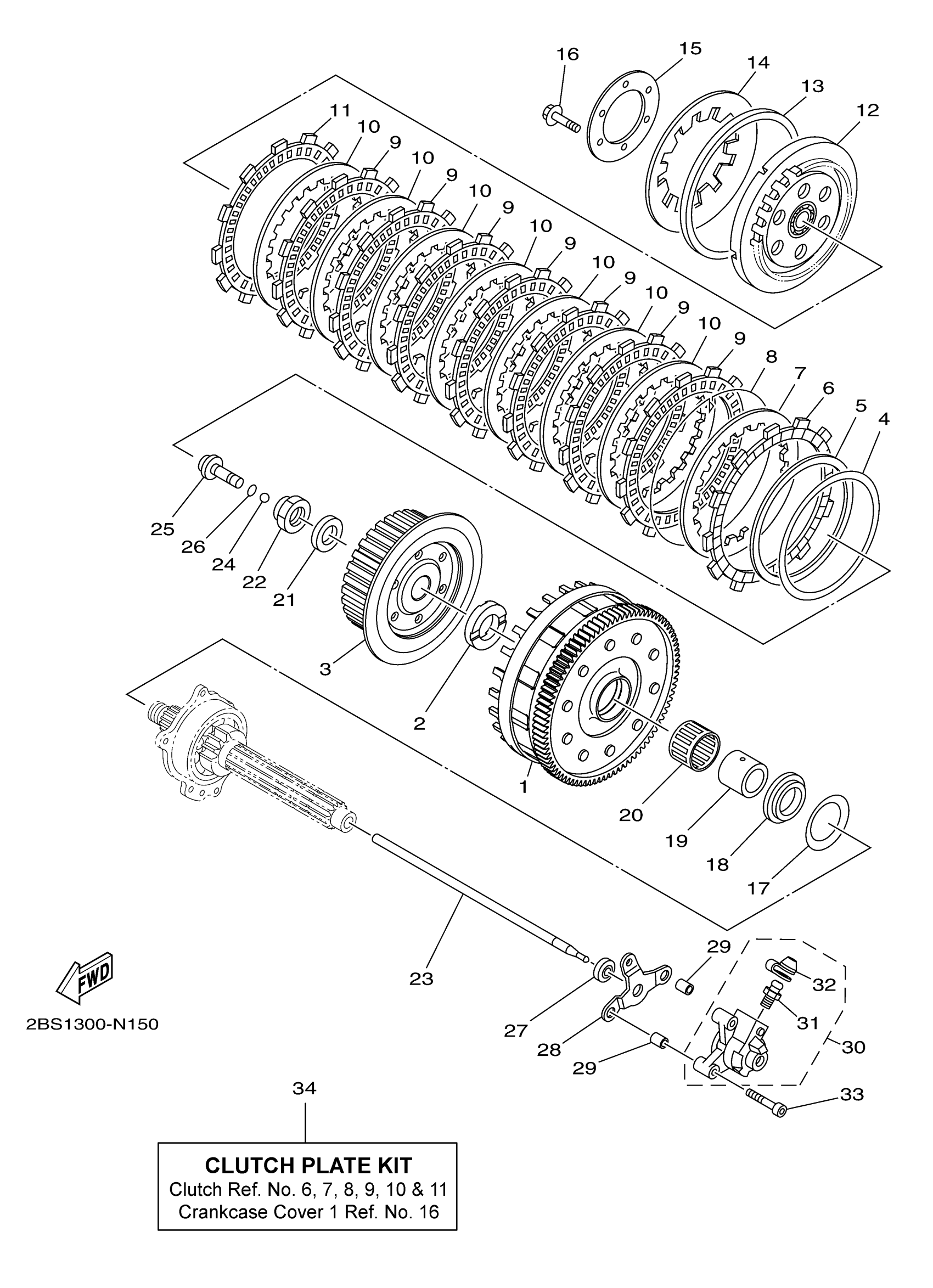

Yamaha XTZ12EGCB (SUPER TENERE ES CA) 2KBP 2016 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

2BS-16150-00-00

$507.58

2

PLATE, THRUST 1

5YU-16154-00-00

Unavailable

3

BOSS, CLUTCH

23P-16371-00-00

Unavailable

4

PLATE, SEAT

36Y-16384-00-00

$21.21

5

SPRING, CLUTCH BOSS

36Y-16383-00-00

$54.37

6

PLATE, FRICTION 2

4XV-16331-00-00

$19.95

7

PLATE, CLUTCH 2

2H7-16325-10-00

$10.61

8

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

$20.50

9

PLATE, FRICTION

5JW-16321-10-00

$24.60

10

PLATE, CLUTCH 2

2H7-16325-10-00

$10.61

11

PLATE, FRICTION

5YU-16321-00-00

$20.91

12

PRESSURE PLATE ASSY

23P-16350-00-00

Unavailable

13

HOUSING, SPRING

36Y-16335-00-00

$29.63

14

SPRING, CLUTCH 2

5JW-16334-00-00

$74.09

15

PLATE, PRESSURE 2

1TX-16352-00-00

$32.00

16

BOLT, FLANGE

90105-06191-00

Unavailable

17

SPRING, SHOCK ABSORBER

3P6-16587-00-00

Unavailable

18

SPACER 3

3P6-16183-00-00

Unavailable

19

SPACER 1

23P-16181-00-00

Unavailable

20

BEARING

93310-33560-00

Unavailable

21

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

22

NUT

90179-20022-00

Unavailable

23

ROD, PUSH 2

23P-16357-00-00

Unavailable

24

BALL (498)

93511-32027-00

Unavailable

25

ROD, PUSH 1

4KG-16356-00-00

Unavailable

26

O-RING (26H)

93210-06632-00

Unavailable

27

OIL SEAL(12E)

93109-08061-00

Unavailable

28

SHIM, KICK SHAFT

23P-15645-00-00

Unavailable

29

PIN, DOWEL

99590-08012-00

Unavailable

30

PUSH LEVER COMP.

23P-16381-00-00

Unavailable

31

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

32

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

33

BOLT, SOCKET

91314-06035-00

Unavailable

34

CLUTCH KIT

23P-W001G-00-00

Unavailable
