Partiron

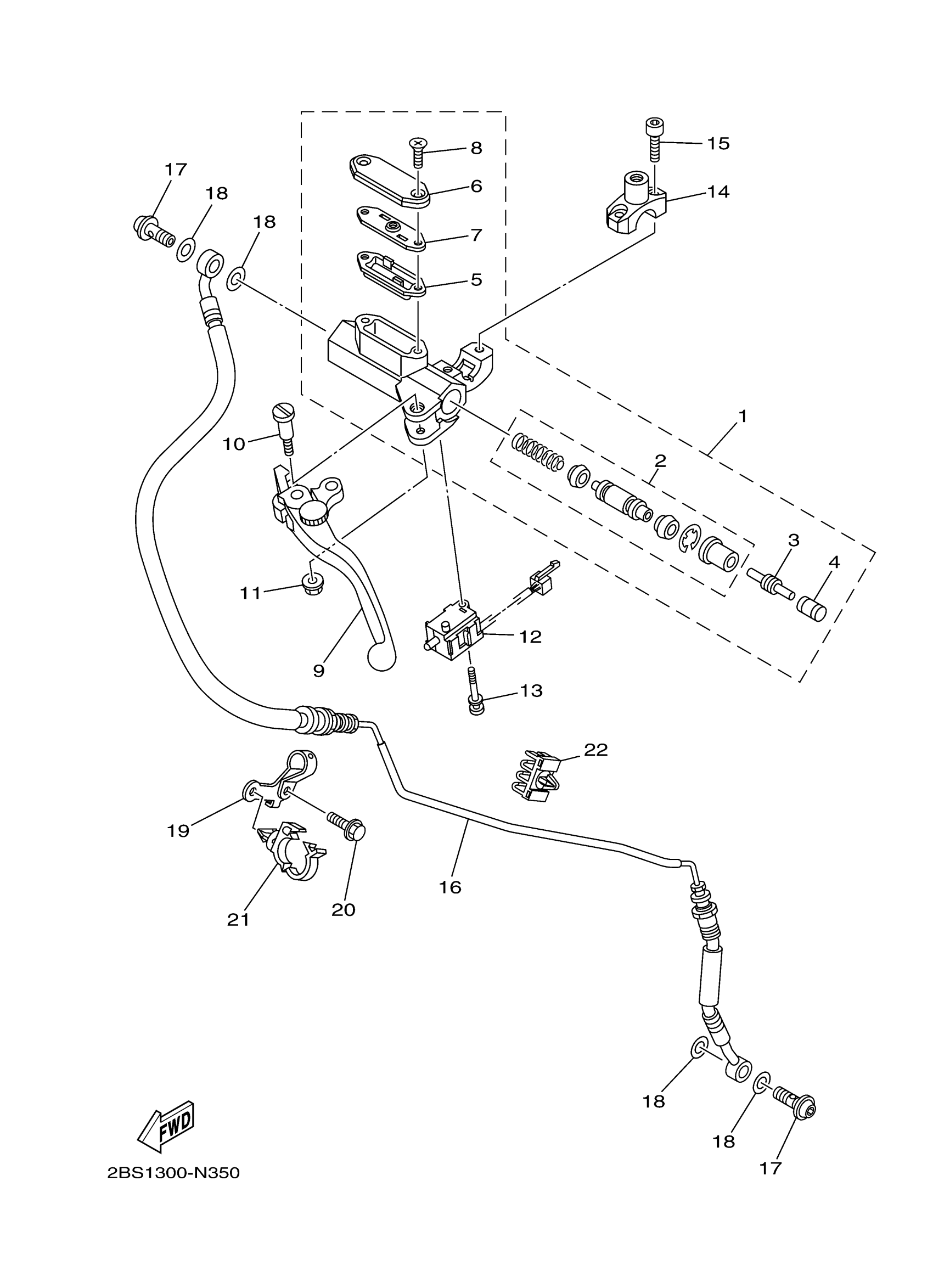

Yamaha XTZ12EFR (SUPER TENERE ES) 2KBG 2015 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SU

2BS-26401-00-00

$294.97

2

CYLINDER KIT, MAST

2BS-26402-00-00

$39.31

3

ROD, PUSH

5YU-26464-00-00

Unavailable

4

BUSH

3GM-26455-00-00

$17.59

5

DIAPHRAGM, RESERVOIR

5YU-25854-50-00

Unavailable

6

CAP, RESERVOIR

5YU-25852-50-00

$28.70

7

BUSH,DIAPHRAGM

5YU-25855-50-00

$8.19

8

SCREW, FLAT

98707-04012-00

$1.34

9

LEVER 1

5YU-83912-11-00

$98.21

10

BOLT, LEVER

23P-2589F-00-00

$10.15

11

NUT, SELF-LOCKING

95617-06100-00

$2.17

12

SWITCH

1MC-82917-02-00

$130.71

13

SCREW, PAN HEAD WITH WASHER

97602-04230-00

$3.07

14

HOLDER

5YU-26393-10-00

$30.68

15

BOLT

5YU-26332-00-00

Unavailable

16

HOSE, CLUTCH

23P-26470-00-00

Unavailable

17

BOLT, UNION

90401-10172-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

HOLDER, 2

23P-26481-00-00

Unavailable

20

BOLT, FLANGE

95022-06010-00

Unavailable

21

CLAMP

90464-20010-00

Unavailable

22

CLAMP

90464-07262-00

Unavailable
