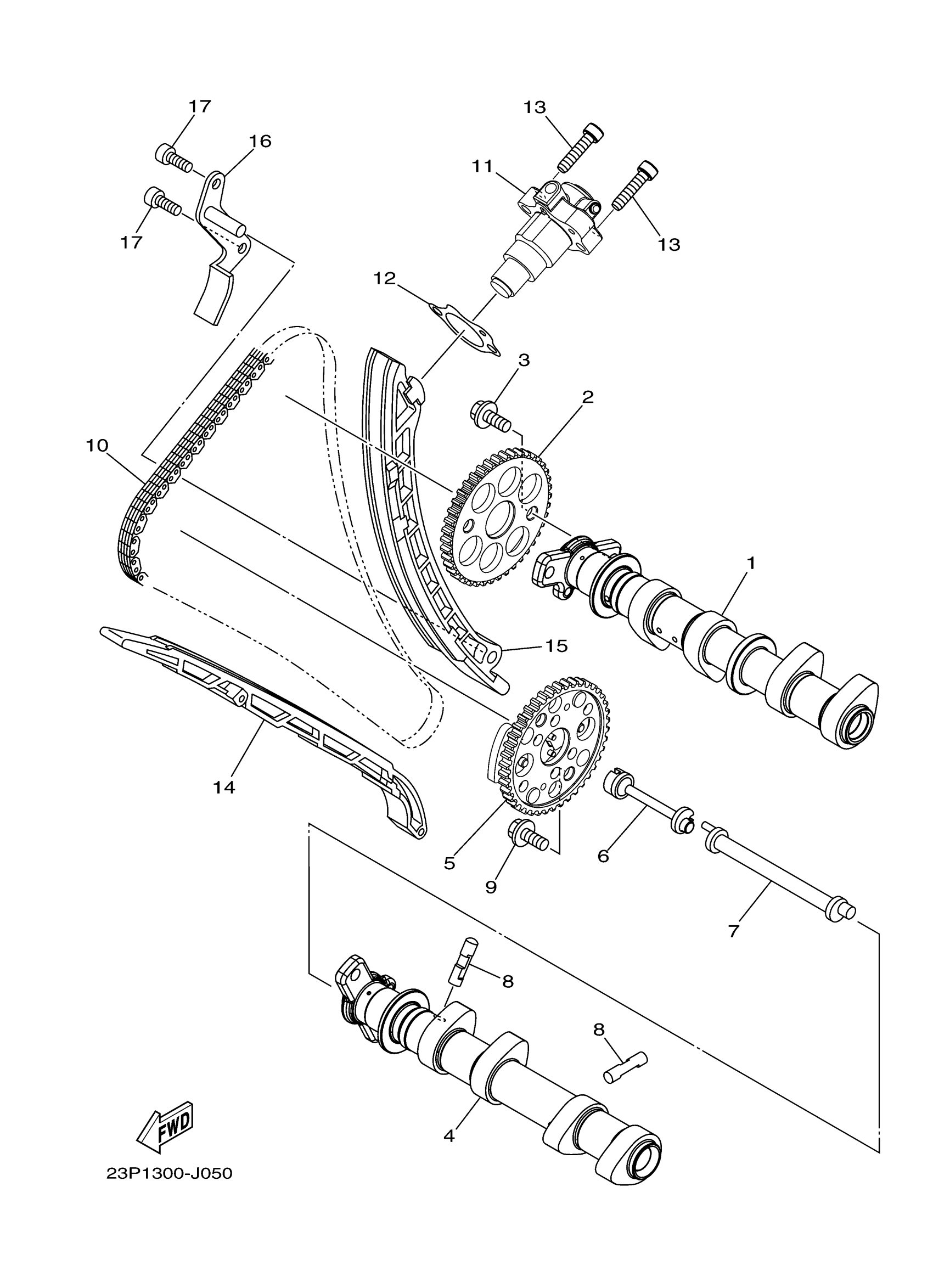

Yamaha XTZ12EFR (SUPER TENERE ES) 2KBG 2015 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

23P-12170-00-00

Unavailable

SPROCKET, CAM CHAIN

23P-12176-00-00

Unavailable

BOLT, FLANGE

90105-07006-00

$5.84

CAMSHAFT 2

23P-12181-00-00

Unavailable

DECOMPRESSION ASSY

23P-12280-00-00

Unavailable

SHAFT, TENSIONER

23P-12247-00-00

Unavailable

SHAFT 2

23P-12257-00-00

Unavailable

CAM, DECOMPRESSION

23P-12288-00-00

Unavailable

BOLT, FLANGE

90105-07006-00

$5.84

CHAIN

94591-61150-00

$36.30

TENSIONER ASSY, CA

2BS-12210-02-00

$273.17

GASKET, TENSIONER CASE

14B-12213-00-00

$6.29

BOLT,SOCKET

91317-06025-00

$1.91

DAMPER, CHAIN 1

23P-12251-00-00

$32.23

DAMPER, CHAIN 2

23P-12252-00-00

$82.44

PLATE, GUIDE STOPPER 1

23P-12233-00-00

Unavailable

BOLT,SOCKET

91317-06012-00

Unavailable
