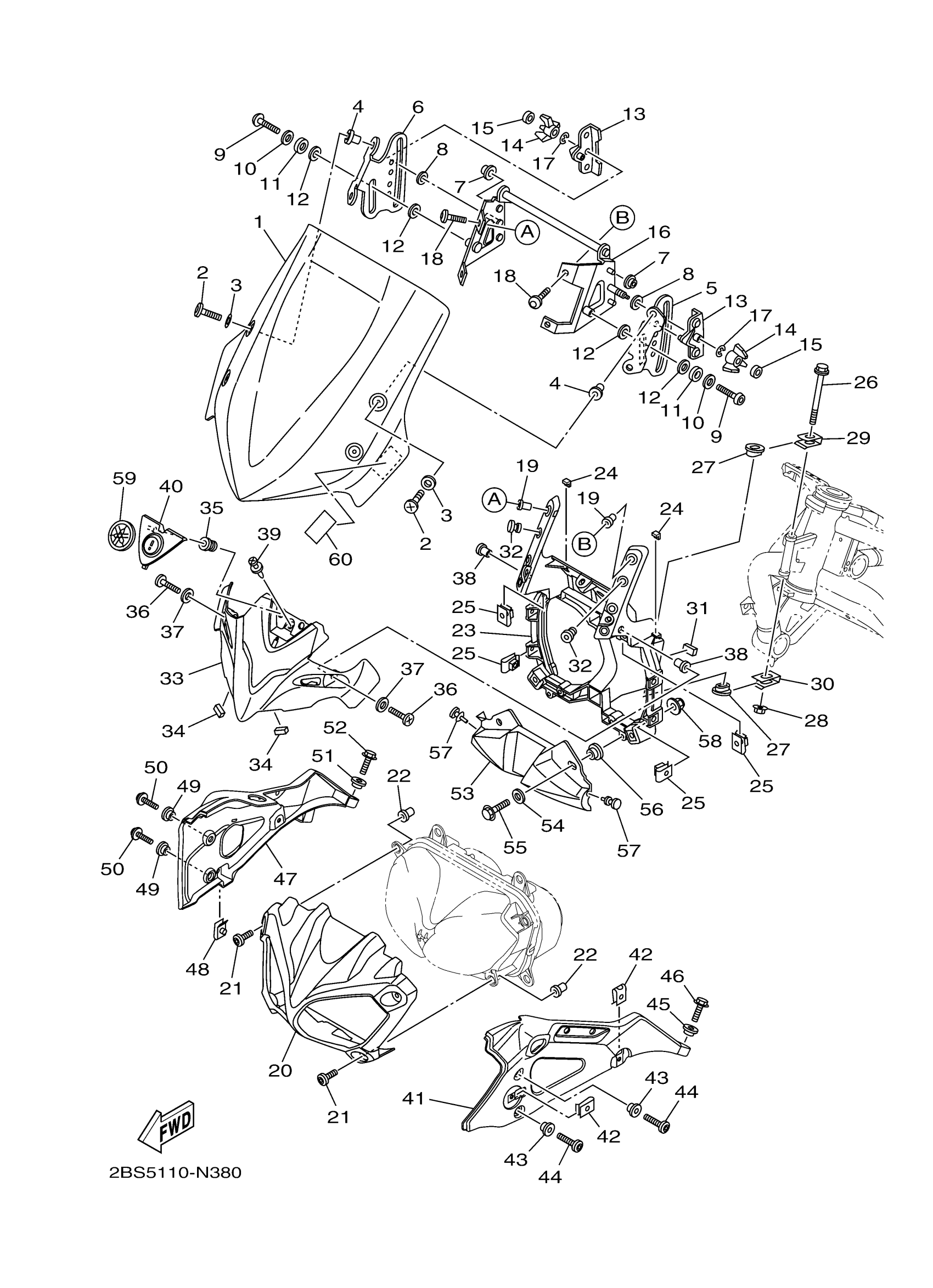

Yamaha XTZ12EEGY (SUPER TENERE ES) 2KB5 2014 WINDSHIELD Diagram
#
1
WINDSHIELD
2BS-28381-20-00
Unavailable
5
STAY, SIDE 1
2BS-2831U-00-00
Unavailable
6
STAY, SIDE 1
2BS-2832U-00-00
Unavailable
7
BUSH
90386-07MA2-00
Unavailable
10
WASHER, PLATE
90201-06021-00
Unavailable
11
GASKET
90430-12072-00
Unavailable
12
WASHER, PLATE (J17)
90201-123F2-00
Unavailable
16
STAY, MAIN 1
2BS-2831R-00-00
Unavailable
17
CIRCLIP(6L5)
99080-03600-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
19
NUT(1KT)
90179-05523-00
Unavailable
20
BODY, FRONT UPPER 1
23P-2835G-00-00
Unavailable
21
BOLT
90111-06038-00
Unavailable
22
NUT(1WT)
90179-06520-00
Unavailable
23
STAY 1
23P-28356-01-00
Unavailable
24
DAMPER, PLATE
90520-02005-00
Unavailable
25
NUT, SPRING
90183-060A1-00
Unavailable
26
BOLT, WASHER BASED
90105-085A5-00
Unavailable
27
COLLAR
5PS-28373-01-00
Unavailable
28
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
29
PLATE
23P-28336-00-00
Unavailable
30
PLATE 2
23P-28397-00-00
Unavailable
31
TAPE
23P-28344-00-00
Unavailable
32
PLUG (17J)
90338-10132-00
Unavailable
33
DEFLECTOR
2BS-283M3-00-00
Unavailable
34
DAMPER 2
1HX-28227-00-00
Unavailable
35
GROMMET
90480-10003-00
Unavailable
39
RIVET
90269-06081-00
Unavailable
40
COVER, METER
2BS-83559-00-00
Unavailable
41
PANEL, CONSOLE 1
23P-2837L-00-00
Unavailable
42
NUT, SPRING
90183-060A6-00
Unavailable
43
COLLAR
90387-06048-00
Unavailable
44
BOLT
90111-06051-00
Unavailable
45
COLLAR
90387-08080-00
Unavailable
46
BOLT, FLANGE
95814-08016-00
Unavailable
47
PANEL, CONSOLE 2
23P-2837M-00-00
Unavailable
48
NUT, SPRING
90183-060A6-00
Unavailable
49
COLLAR
90387-06048-00
Unavailable
50
BOLT
90111-06051-00
Unavailable
51
COLLAR
90387-08080-00
Unavailable
52
BOLT, FLANGE
95814-08016-00
Unavailable
53
COVER
2BS-28365-01-00
Unavailable
54
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
55
BOLT, FLANGE
95817-06025-00
Unavailable
56
COLLAR
90387-06200-00
Unavailable
57
GROMMET (5BS)
90480-04166-00
Unavailable
58
NUT, CROWN
90176-06016-00
Unavailable
59
TUNING FORK MARK
8GC-2836B-02-00
Unavailable
60
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
Unavailable
