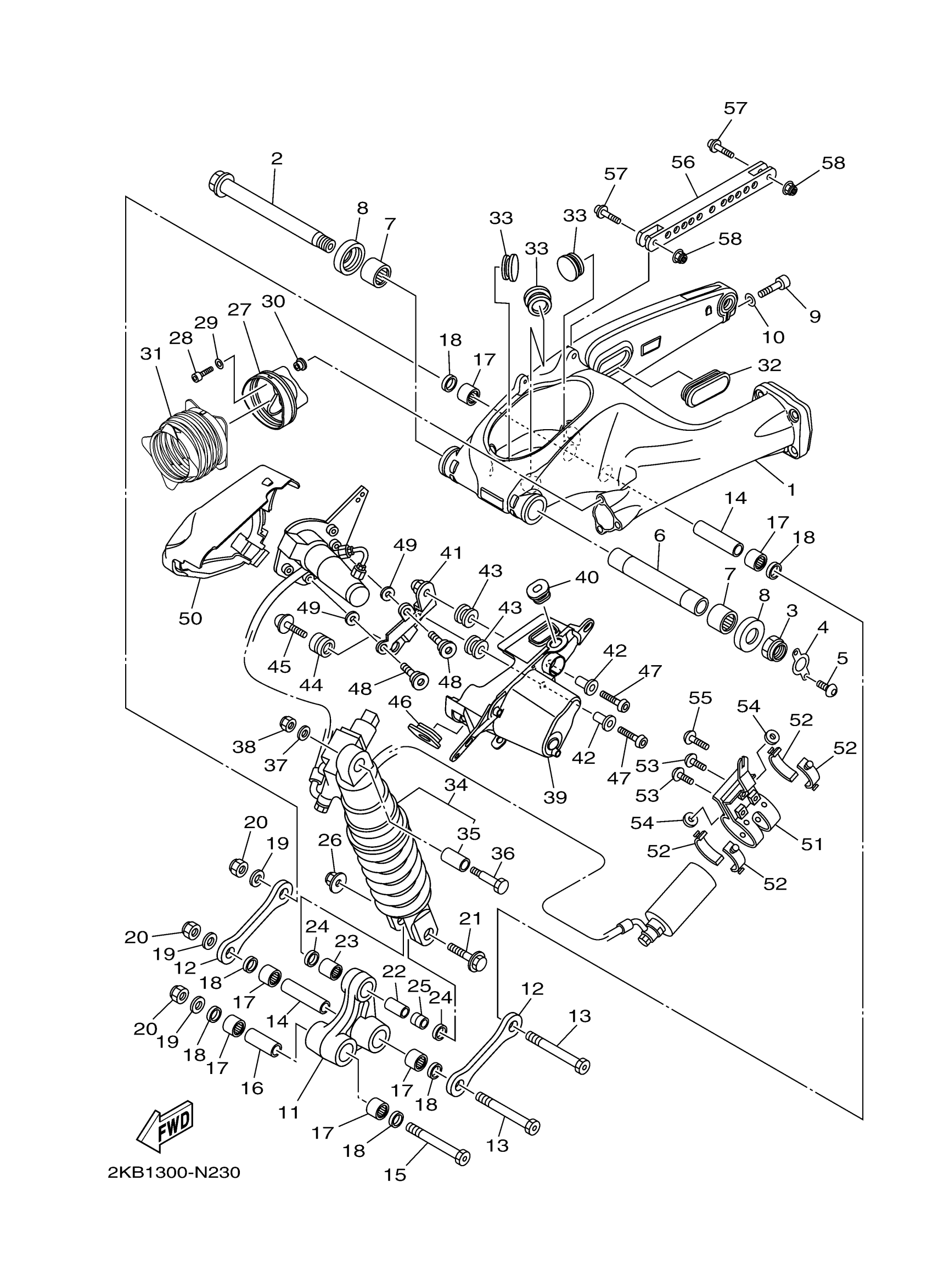

Yamaha XTZ12EEGY (SUPER TENERE ES) 2KB5 2014 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

23P-22110-00-00

$915.99

2

SHAFT, PIVOT

23P-22141-00-00

Unavailable

3

NUT, SELF-LOCKING

90185-22009-00

$19.99

4

BRACKET

23P-22163-00-00

Unavailable

5

BOLT, BUTTON HEAD

92012-05008-00

$2.82

6

BUSH

23P-22184-00-00

Unavailable

7

BEARING

93317-330A0-00

$35.99

8

COVER, THRUST 1

23P-22128-00-00

Unavailable

9

BOLT

91312-10040-00

Unavailable

10

WASHER, PLATE

92990-10600-00

Unavailable

11

ARM, RELAY

2KB-2217A-00-00

Unavailable

12

ARM 1

2KB-2217M-00-00

Unavailable

13

BOLT

90109-14008-00

$24.99

14

COLLAR

90387-14014-00

Unavailable

15

BOLT

90109-14009-00

Unavailable

16

COLLAR

90387-14015-00

Unavailable

17

BEARING, CYLINDRICAL(3MH)

93315-32057-00

Unavailable

18

OIL SEAL

93109-20076-00

Unavailable

19

WASHER, PLATE

90201-14027-00

Unavailable

20

NUT, SELF-LOCKING

90185-14010-00

Unavailable

21

BOLT, FLANGE

90105-10378-00

Unavailable

22

COLLAR

90387-10104-00

Unavailable

23

BEARING

93315-31759-00

Unavailable

24

OIL SEAL

93109-17071-00

Unavailable

25

COLLAR

90387-10105-00

Unavailable

26

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

27

COVER, DUST

23P-2217H-00-00

Unavailable

28

BOLT

91312-05014-00

Unavailable

29

. WASHER, PLAIN

92990-05200-00

Unavailable

30

COLLAR

90387-05035-00

Unavailable

31

BOOT, RUBBER

23P-22189-00-00

Unavailable

32

COVER

5JW-2219X-00-00

Unavailable

33

PLUG

90338-30267-00

Unavailable

34

SHOCK ABSORBER ASS

2KB-22210-10-00

Unavailable

35

BUSH, REAR SHOCK A

5RM-22216-00-00

Unavailable

36

BOLT

90109-10028-00

Unavailable

37

WASHER, PLATE

90201-10036-00

Unavailable

38

NUT, U

95617-10100-00

Unavailable

39

COVER, DUST

2KB-22325-00-00

Unavailable

40

GROMMET(4DN)

90480-01558-00

Unavailable

41

STAY, DUST COVER

2KB-22324-00-00

Unavailable

42

COLLAR(36Y)

90387-067K8-00

Unavailable

43

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

44

DAMPER

5J0-83513-00-00

Unavailable

45

SCREW, TAPPING

90164-05001-00

Unavailable

46

GROMMET

90480-13027-00

Unavailable

47

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

48

BOLT

90109-06182-00

Unavailable

49

WASHER, PLATE 8087752500

90201-07081-00

Unavailable

50

MOLE, SIDE COVER 1

2KB-2171L-00-00

Unavailable

51

HOLDER, SUB TANK

2KB-22262-00-00

Unavailable

52

DAMPER, SUB TANK

24X-22261-00-00

Unavailable

53

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

54

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

55

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

56

BAR, TENSION

23P-25371-00-00

Unavailable

57

BOLT, HEXAGON SOCKET HEAD

90110-08007-00

Unavailable

58

NUT, SELF-LOCKING

95602-08200-00

Unavailable
