Description

Price

1

HANDLEBAR

23P-26111-00-00

$157.99

2

GRIP (LEFT)

5JW-26241-00-00

Unavailable

3

GRIP ASSY

23P-26240-00-00

Unavailable

4

THROTTLE CABLE ASSY

23P-26302-01-00

$50.99

5

CAP, GRIP UPPER

3XW-26281-01-00

$31.99

6

CAP, GRIP UNDER

23P-26282-00-00

Unavailable

7

BOLT,SOCKET

91317-05035-00

$8.49

8

REAR VIEW MIRROR ASSY (LEFT)

23P-26280-09-00

$62.99

9

CAP

23P-26133-00-00

$6.99

10

REAR VIEW MIRROR ASSY (RIGHT)

23P-26290-09-00

Unavailable

11

CAP

23P-26133-00-00

$6.99

12

GUARD,BRUSH 1

23P-26141-01-00

$42.99

13

BRACKET, HANDLE 1

23P-26223-00-00

Unavailable

14

BOLT, BUTTON HEAD

92014-05014-00

$8.49

15

COLLAR

90387-05017-00

$5.60

16

END, GRIP

23P-26246-00-00

Unavailable

17

COLLAR

90387-08089-00

Unavailable

18

BOLT, BUTTON HEAD

92014-08060-00

Unavailable

19

BRACKET, HANDLE 3

23P-2622A-00-00

Unavailable

20

COLLAR

90387-05021-00

Unavailable

21

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

22

GUARD, BRUSH 2

23P-26142-01-00

Unavailable

23

BRACKET, HANDLE 2

23P-26224-00-00

Unavailable

24

BOLT, BUTTON HEAD

92014-05014-00

$8.49

25

COLLAR

90387-05017-00

$5.60

26

END, GRIP

23P-26246-00-00

Unavailable

27

COLLAR

90387-08089-00

Unavailable

28

BOLT, BUTTON HEAD

92014-08060-00

Unavailable

29

BRACKET, HANDLE 4

23P-2622E-00-00

Unavailable

30

COLLAR

90387-05021-00

Unavailable

31

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

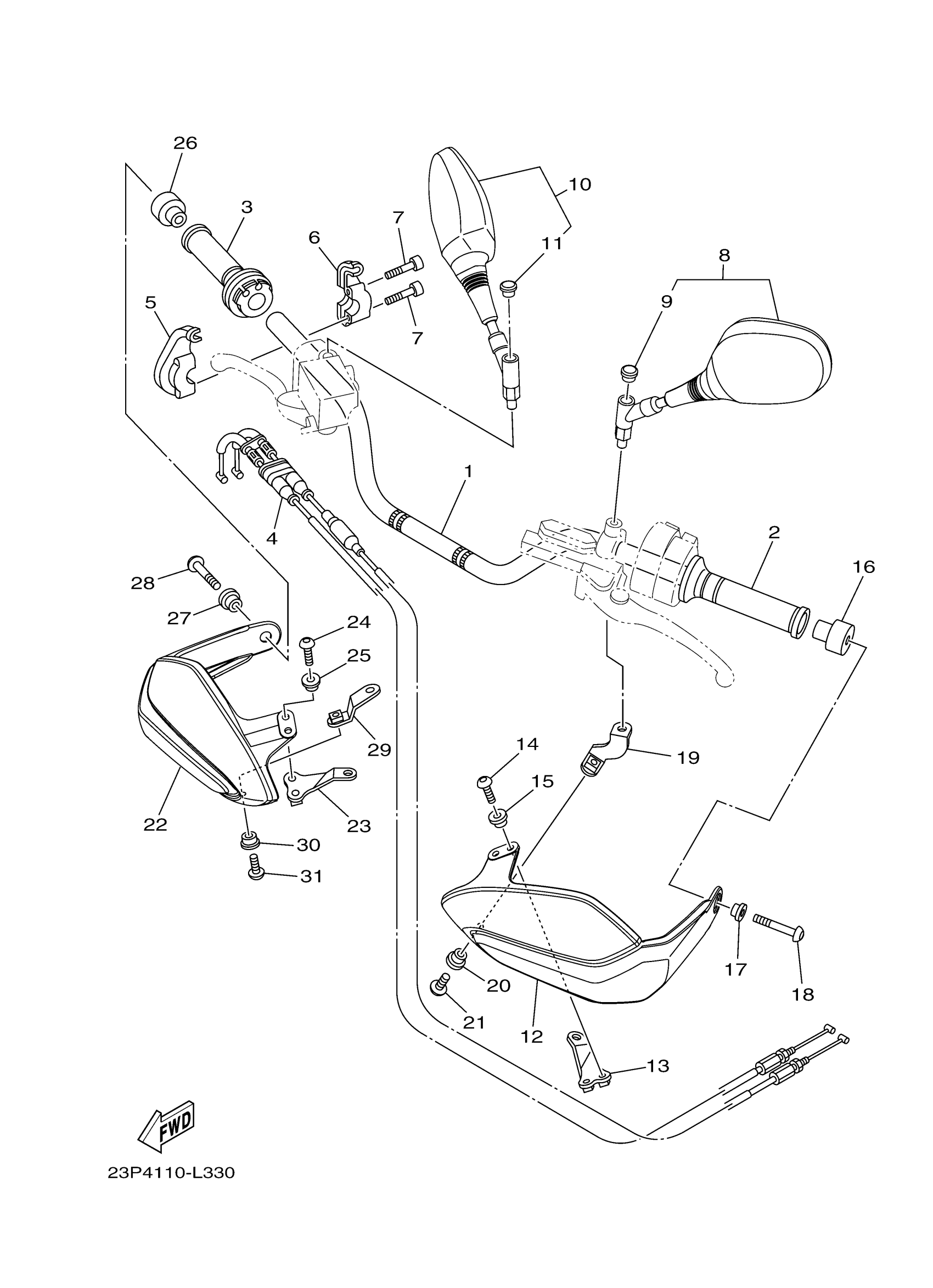

Yamaha XTZ12DW (SUPER TENERE) 23PJ0 2013 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP (LEFT)

GRIP ASSY

THROTTLE CABLE ASSY

CAP, GRIP UPPER

CAP, GRIP UNDER

BOLT,SOCKET

REAR VIEW MIRROR ASSY (LEFT)

CAP

REAR VIEW MIRROR ASSY (RIGHT)

CAP

GUARD,BRUSH 1

BRACKET, HANDLE 1

BOLT, BUTTON HEAD

COLLAR

END, GRIP

COLLAR

BOLT, BUTTON HEAD

BRACKET, HANDLE 3

COLLAR

BOLT, BUTTON HEAD

GUARD, BRUSH 2

BRACKET, HANDLE 2

BOLT, BUTTON HEAD

COLLAR

END, GRIP

COLLAR

BOLT, BUTTON HEAD

BRACKET, HANDLE 4

COLLAR

BOLT, BUTTON HEAD
