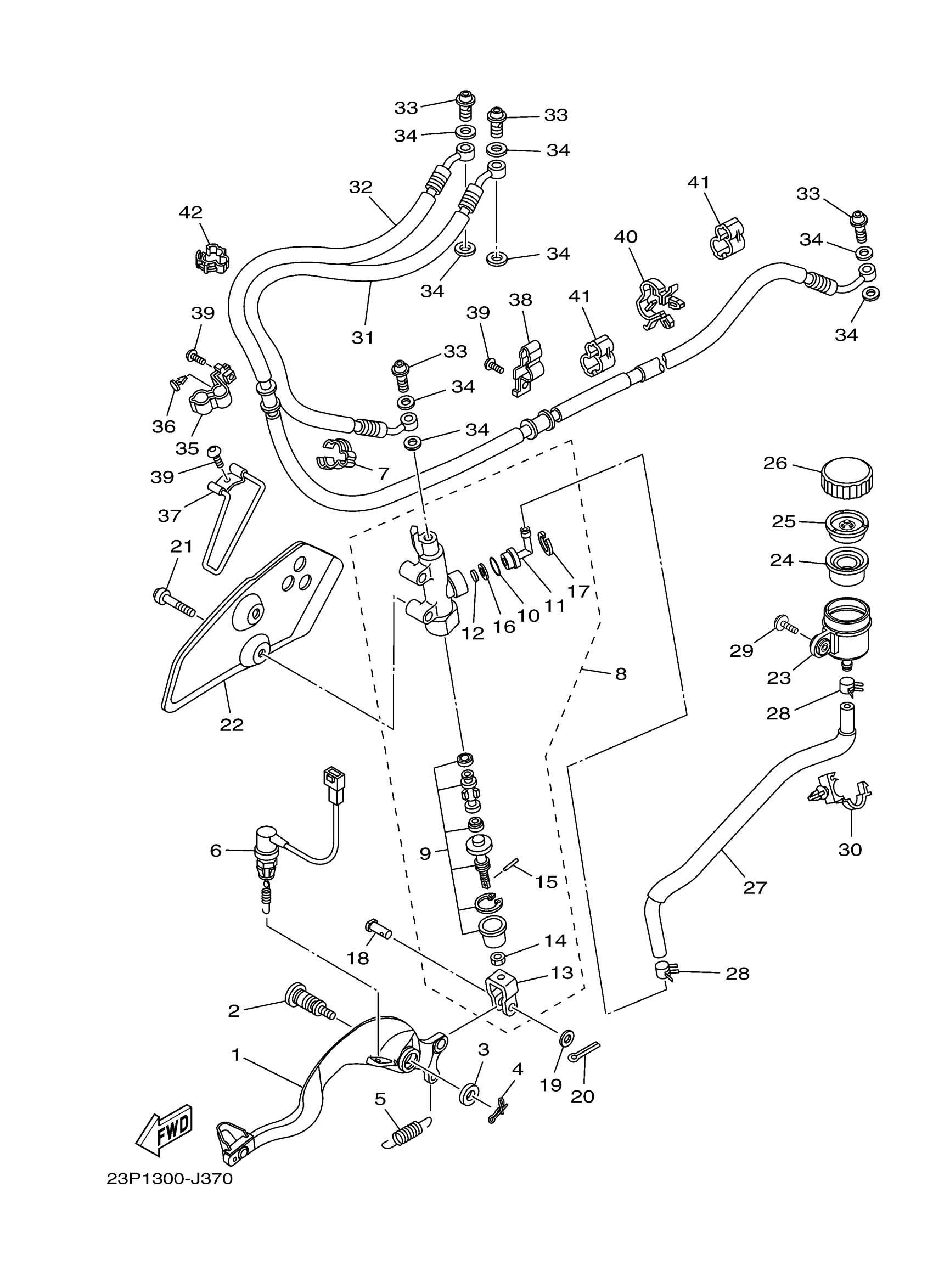

Yamaha XTZ12DW (SUPER TENERE) 23PJ0 2013 REAR MASTER CYLINDER Diagram

PEDAL, BRAKE

23P-27200-00-00

Unavailable

BOLT

5XC-27217-90-00

$30.99

WASHER, PLATE

90201-08060-00

$10.49

CLIP(3YF)

90468-16191-00

$8.49

SPRING, TENSION (2X3)

90506-20193-00

$14.99

STOP SWITCH ASSY

23P-82530-00-00

Unavailable

CLAMP(1NL)

90465-14310-00

$4.35

RR. MASTER CYLINDER ASSY.

23P-2583V-00-00

$283.99

CYLINDER KIT, MASTER

23P-W0042-50-00

Unavailable

O-RING (22U)

93210-15566-00

$7.49

JOINT

4ML-2582A-50-00

$14.49

FILTER

23P-2586G-00-00

$4.68

JOINT

23P-27222-00-00

Unavailable

NUT, HEXAGON SMALL

95317-08700-00

$9.49

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

PLATE, FILTER

23P-2586H-00-00

Unavailable

CIRCLIP

2VN-25866-00-00

Unavailable

PIN, CLEVIS(2VM)

90240-08120-00

Unavailable

WASHER, PLATE

90201-08044-00

Unavailable

PIN, COTTER (648)

91490-20015-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

PLATE 2

23P-27446-10-00

Unavailable

TANK, RESERVOIR

2D1-25894-00-00

Unavailable

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

Unavailable

BUSH,DIAPHRAGM

5SL-25855-00-00

Unavailable

CAP, RESERVOIR

5SL-25852-00-00

Unavailable

HOSE, RESERVOIR

23P-25895-00-00

Unavailable

CLIP

90467-120A3-00

Unavailable

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable

CLAMP

90464-17003-00

Unavailable

HOSE, BRAKE 4

23P-2581J-00-00

Unavailable

HOSE, BRAKE 5

23P-2581K-00-00

Unavailable

BOLT, UNION

90401-10172-00

Unavailable

GASKET

90430-10005-00

Unavailable

HOLDER, BRAKE HOSE

23P-25886-00-00

Unavailable

RIVET

90269-07011-00

Unavailable

HOLDER

23P-27911-00-00

Unavailable

HOLDER, BRAKE HOSE

23P-2587A-00-00

Unavailable

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

CLAMP(4NX)

90464-23239-00

Unavailable

CLAMP(4GL)

90464-10233-00

Unavailable

CLAMP

90464-12013-00

Unavailable
