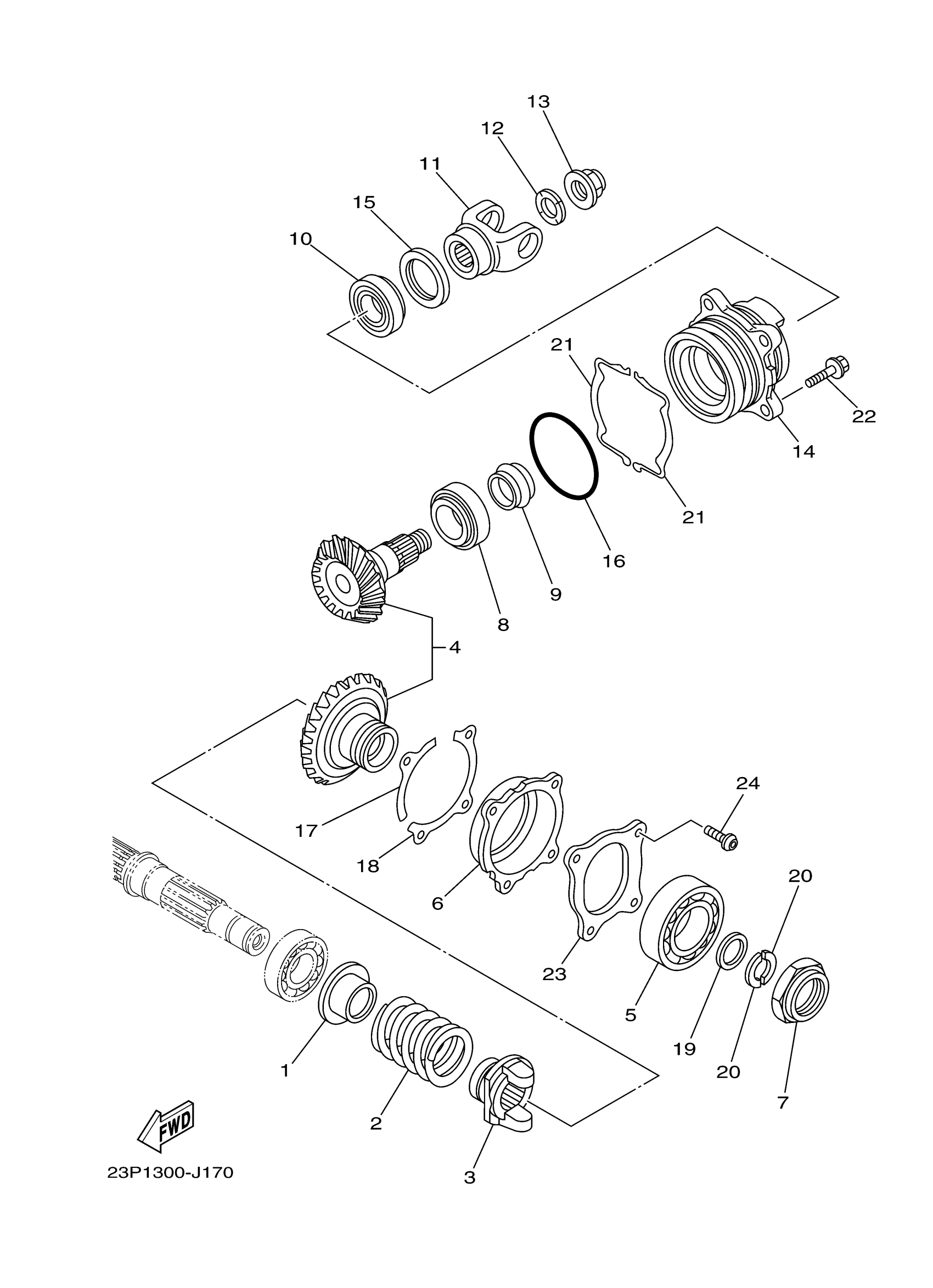

Yamaha XTZ12DW (SUPER TENERE) 23PJ0 2013 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOLDER

23P-17524-00-00

Unavailable

2

SPRING, DAMPER

23P-17528-00-00

Unavailable

3

CAM, DRIVEN

23P-17527-00-00

Unavailable

4

PINION SET

23P-17530-00-00

Unavailable

5

BRG,R-B 6209RSH2-C2 85MM 412G

93306-20901-00

Unavailable

6

HOUSING, BEARING

23P-17521-00-00

Unavailable

7

NUT

90179-44001-00

Unavailable

8

BEARING

93332-000A0-00

$65.99

9

SPACER, EXPANSION

23P-17571-00-00

$9.99

10

BEARING

93332-000A6-00

Unavailable

11

YOKE, JOINT

23P-17556-00-00

$136.99

12

WASHER, CONICAL SPRING

90208-20001-00

$18.99

13

NUT

90179-20015-00

$29.99

14

HOUSING, BEARING

23P-17551-00-00

Unavailable

15

. OIL SEAL

93102-43M42-00

Unavailable

16

O-RING

93210-82003-00

Unavailable

17

SHIM, PINION

23P-17531-00-00

Unavailable

17

SHIM, PINION

23P-17531-10-00

Unavailable

17

SHIM, PINION

23P-17531-20-00

Unavailable

17

SHIM, PINION

23P-17531-30-00

Unavailable

17

SHIM, PINION

23P-17531-40-00

Unavailable

17

SHIM, PINION

23P-17531-50-00

Unavailable

18

SHIM

23P-17687-00-00

Unavailable

18

SHIM

23P-17687-10-00

Unavailable

18

SHIM

23P-17687-20-00

Unavailable

18

SHIM

23P-17687-30-00

Unavailable

18

SHIM

23P-17687-40-00

Unavailable

18

SHIM

23P-17687-50-00

Unavailable

19

WASHER, PLATE

90201-27014-00

Unavailable

20

WASHER, THRUST

23P-17529-00-00

Unavailable

21

SHIM, THRUST

23P-17537-00-00

Unavailable

21

SHIM, THRUST

23P-17537-10-00

Unavailable

21

SHIM, THRUST

23P-17537-20-00

Unavailable

21

SHIM, THRUST

23P-17537-30-00

Unavailable

21

SHIM, THRUST

23P-17537-40-00

Unavailable

21

SHIM, THRUST

23P-17537-50-00

Unavailable

22

BOLT, FLANGE

90105-08234-00

Unavailable

23

PLATE

23P-17446-00-00

Unavailable

24

SCREW

90149-08050-00

Unavailable
