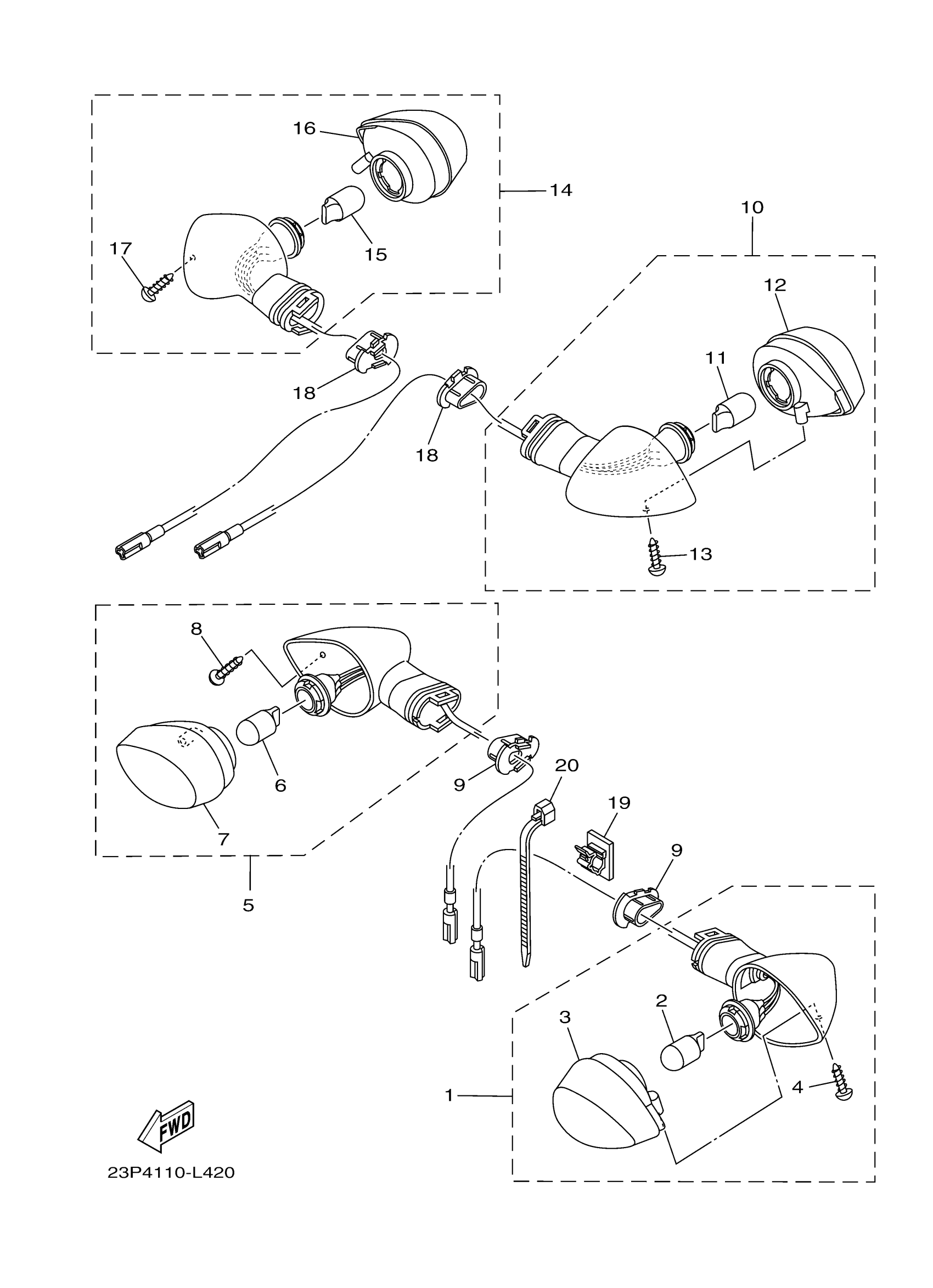

Yamaha XTZ12DW (SUPER TENERE) 23PJ0 2013 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

23P-83310-10-00

Unavailable

2

BULB, FLASHER (12V-21/5W)

39P-83331-00-00

$7.99

3

LENS COMP

5PW-8333A-10-00

$33.99

4

.. SCREW, TAPPING

97707-04012-00

Unavailable

5

FRONT FLASHER LIGHT ASSY 2

23P-83320-10-00

$67.99

6

BULB, FLASHER (12V-21/5W)

39P-83331-00-00

$7.99

7

LENS COMP

5PW-8334A-10-00

$33.99

8

.. SCREW, TAPPING

97707-04012-00

Unavailable

9

STAY, FLASHER 1

5PW-83318-00-00

$7.99

10

REAR FLASHER LIGHT ASSY 1

23P-83330-10-00

Unavailable

11

BULB, FLASHER

5PW-83331-00-00

$14.49

12

LENS COMP

5PW-8334A-10-00

$33.99

13

.. SCREW, TAPPING

97707-04012-00

Unavailable

14

REAR FLASHER LIGHT ASSY 2

23P-83340-10-00

Unavailable

15

BULB, FLASHER

5PW-83331-00-00

$14.49

16

LENS COMP

5PW-8333A-10-00

$33.99

17

.. SCREW, TAPPING

97707-04012-00

Unavailable

18

STAY, FLASHER 1

5PW-83318-00-00

$7.99

19

CLAMP(1NL)

90464-62085-00

Unavailable

20

CLAMP

90464-13077-00

Unavailable
