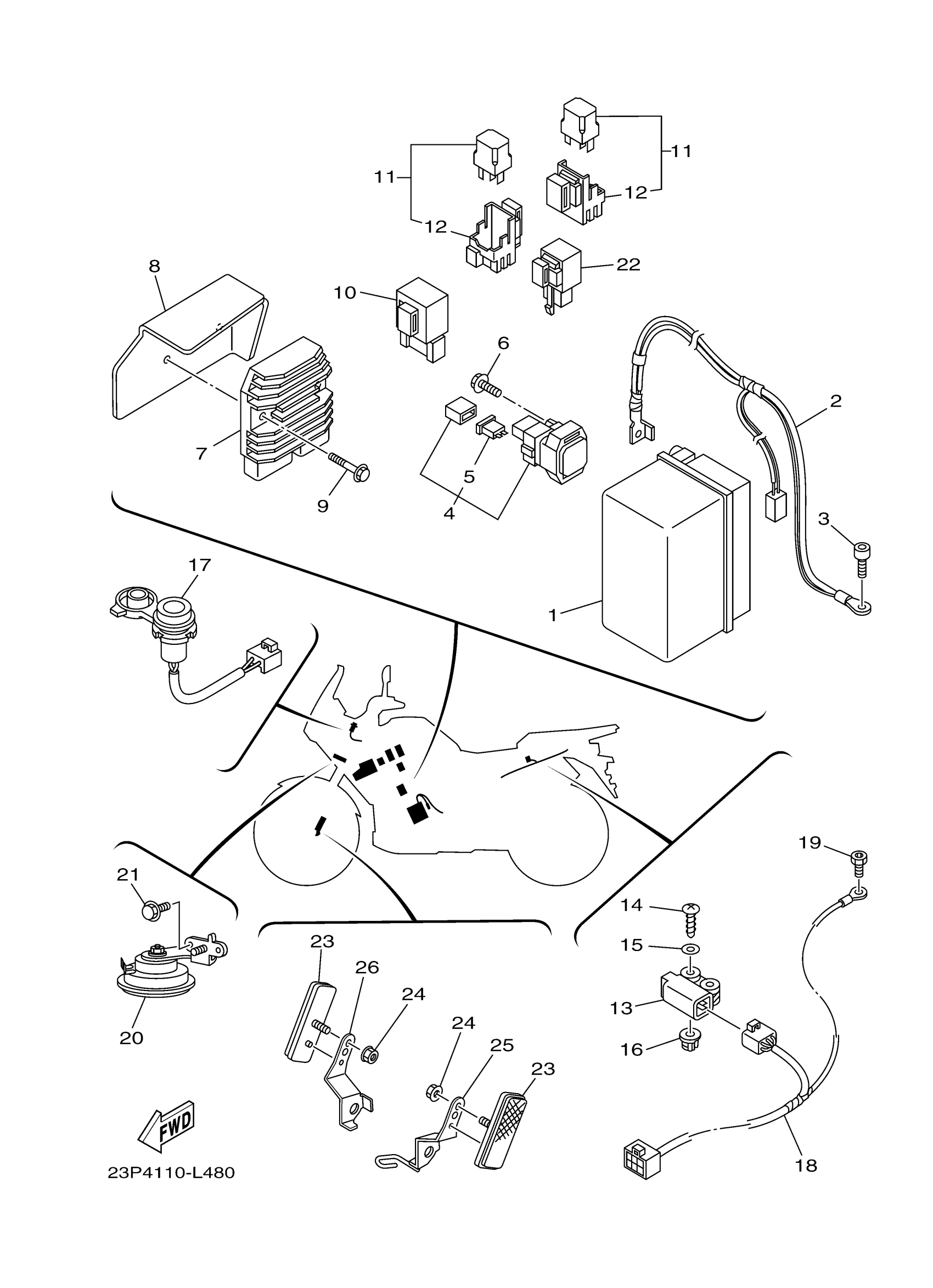

Yamaha XTZ12DW (SUPER TENERE) 23PJ0 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY YTZ12S

YTZ-12S00-00-00

Unavailable

2

WIRE, MINUS LEAD

23P-82116-00-00

Unavailable

3

BOLT,SOCKET

91317-06012-00

$8.49

4

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

5

FUSE (12V 30A)

1AE-82151-00-00

$7.99

6

BOLT, FLANGE

95022-06008-00

$8.49

7

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

8

PLATE, RECTIFIER FITTING

23P-81975-00-00

Unavailable

9

BOLT, FLANGE

95817-06030-00

$4.29

10

RELAY ASSY

5VK-81950-43-00

$65.99

11

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

$58.99

12

HOLDER, RELAY

5JJ-81952-00-00

$9.99

13

SENSOR, LEAN ANGLE

5VU-82576-03-00

$97.99

14

SCREW, TAPPING

97702-40025-00

Unavailable

15

WASHER, PLATE

90201-04030-00

$2.23

16

NUT, ADJUSTING

4B4-84334-00-00

Unavailable

17

TERMINAL COMP.

23P-8254B-00-00

Unavailable

18

WIRE, SUB LEAD

23P-82509-10-00

Unavailable

19

SCREW, HEXAGON (18V)

90153-06044-00

Unavailable

20

HORN

23P-83371-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

23

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

24

NUT, FLANGE

95702-05500-00

Unavailable

25

BRACKET, REFLECTOR 1

23P-85112-01-00

Unavailable

26

BRACKET, REFLECTOR 2

23P-85122-01-00

Unavailable
