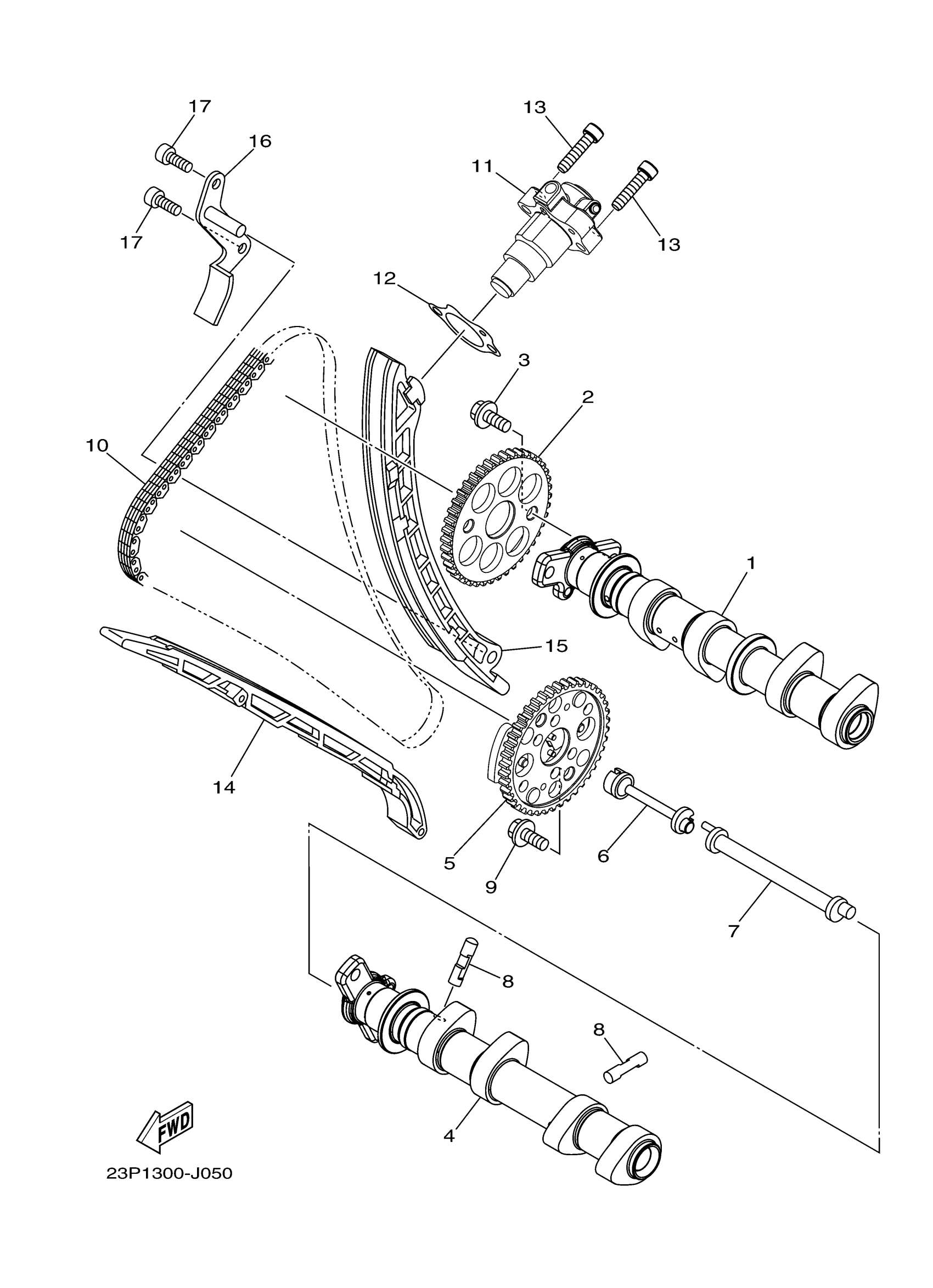

Yamaha XTZ12DW (SUPER TENERE) 23PJ0 2013 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

23P-12170-00-00

Unavailable

SPROCKET, CAM CHAIN

23P-12176-00-00

Unavailable

BOLT, FLANGE

90105-07006-00

$8.49

CAMSHAFT 2

23P-12181-00-00

Unavailable

DECOMPRESSION ASSY

23P-12280-00-00

Unavailable

SHAFT, TENSIONER

23P-12247-00-00

Unavailable

SHAFT 2

23P-12257-00-00

Unavailable

CAM, DECOMPRESSION

23P-12288-00-00

Unavailable

BOLT, FLANGE

90105-07006-00

$8.49

CHAIN

94591-61150-00

$45.99

TENSIONER ASSY, CA

2BS-12210-02-00

$336.99

GASKET, TENSIONER CASE

14B-12213-00-00

$7.99

BOLT,SOCKET

91317-06025-00

$5.60

DAMPER, CHAIN 1

23P-12251-00-00

$38.99

DAMPER, CHAIN 2

23P-12252-00-00

$90.99

PLATE, GUIDE STOPPER 1

23P-12233-00-00

Unavailable

BOLT,SOCKET

91317-06012-00

Unavailable
