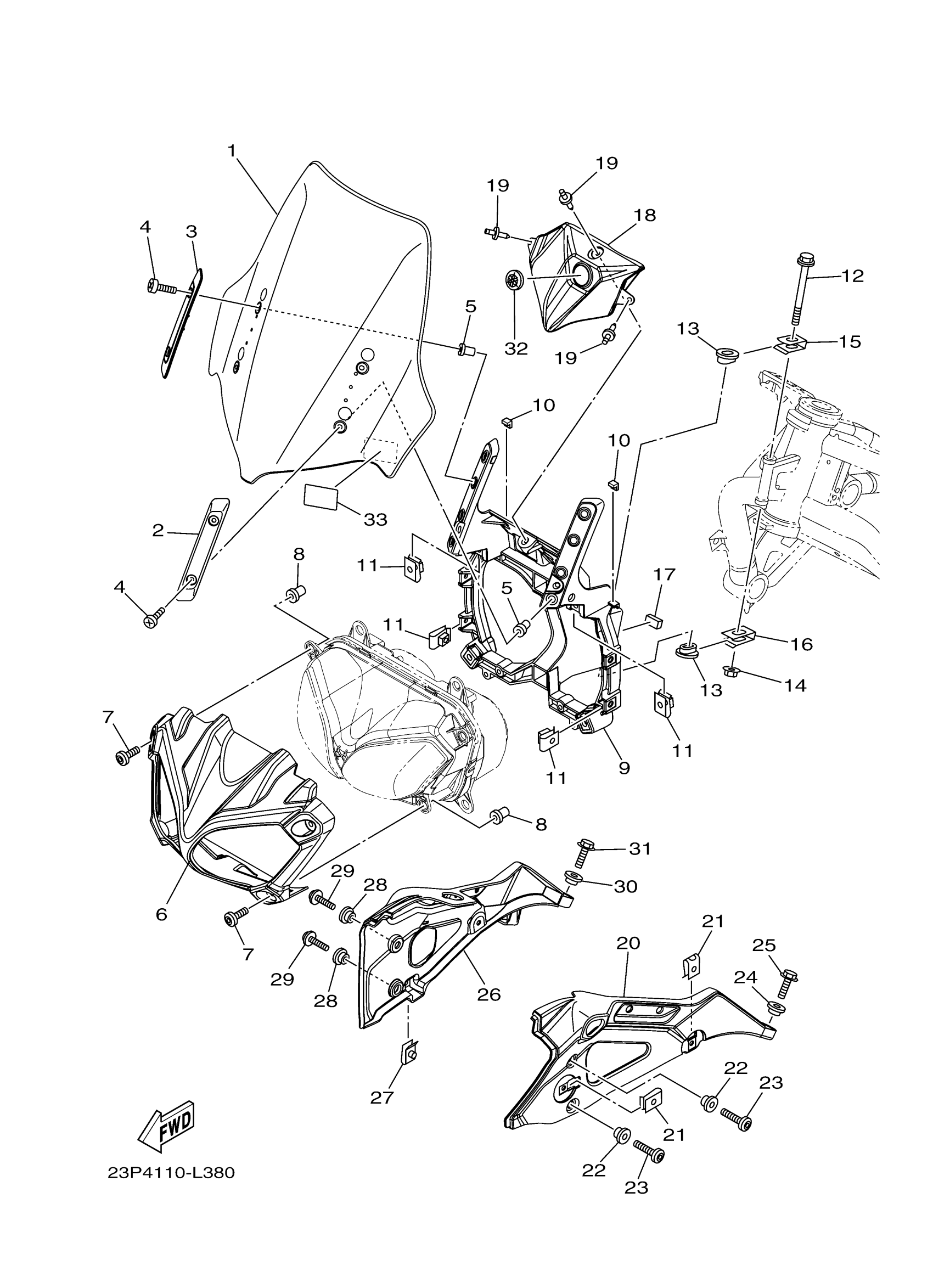

Find the part on the Windshield diagram for your 2012 Yamaha Super Tenere (XTZ12BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Super Tenere (XTZ12BL) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSCREEN ASSY

23P-28380-00-00

—
Out of stock

2

WASHER, LEG SHIELD

23P-28323-00-00

1
Out of stock

3

WASHER, LEG SHIELD

23P-28324-00-00

1
Out of stock

4

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

5

NUT

90179-05003-00

1

$4.89

In stock

6

BODY, FRONT UPPER 1

23P-2835G-00-00

—
Out of stock

7

BOLT

90111-06038-00

1

$3.45

In stock

8

NUT(1WT)

90179-06520-00

1
Out of stock

9

STAY 1

23P-28356-01-00

1
Out of stock

10

DAMPER, PLATE

90520-02005-00

—
Out of stock

11

NUT, SPRING

90183-060A1-00

—

$7.32

In stock

12

BOLT, WASHER BASED

90105-085A5-00

1
Out of stock

13

COLLAR

5PS-28373-01-00

—
Out of stock

14

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

15

PLATE

23P-28336-00-00

—
Out of stock

16

PLATE 2

23P-28397-00-00

—
Out of stock

17

TAPE

23P-28344-00-00

—
Out of stock

18

COVER, METER

23P-83559-00-00

—
Out of stock

19

RIVET

90269-06001-00

—

$5.42

In stock

20

PANEL, CONSOLE 1

23P-2837L-00-00

—
Out of stock

21

NUT, SPRING

90183-060A6-00

—

$4.17

In stock

22

COLLAR

90387-06048-00

—

$6.06

In stock

23

SCREW

90149-06104-00

—

$3.83

In stock

24

COLLAR

90387-08080-00

—
Out of stock

25

BOLT, FLANGE

95814-08016-00

—

$6.68

In stock

26

PANEL, CONSOLE 2

23P-2837M-00-00

—
Out of stock

27

NUT, SPRING

90183-060A6-00

—

$4.17

In stock

28

COLLAR

90387-06048-00

—

$6.06

In stock

29

SCREW

90149-06104-00

—

$3.83

In stock

30

COLLAR

90387-08080-00

—
Out of stock

31

BOLT, FLANGE

95814-08016-00

—

$6.68

In stock

32

TUNING FORK MARK

4KN-2836B-10-00

—
Out of stock

33

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

—

$7.25

In stock
