2012 Yamaha Super Tenere (XTZ12BL) Optional Trunk Side Case Diagram

← All diagrams

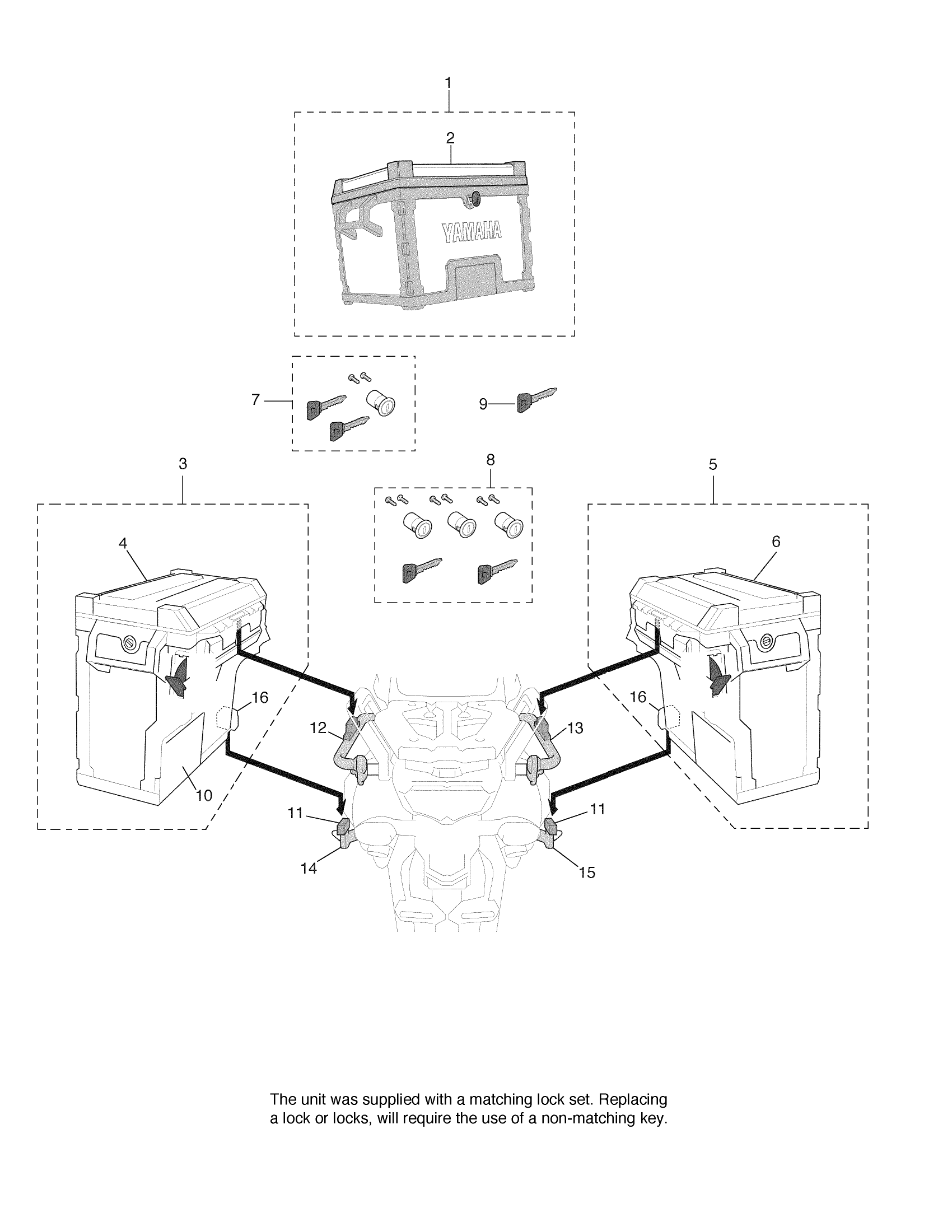

Find the part on the Optional Trunk Side Case diagram for your 2012 Yamaha Super Tenere (XTZ12BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Super Tenere (XTZ12BL) Optional Trunk Side Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TOP CASE

23P-F84A8-T0-00

1
Out of stock

1

TOP CASE

23P-F84A8-V0-00

1
Out of stock

2

TOP CASE SPARE LID

23P-W9754-TL-00

1
Out of stock

3

SIDE CASE LEFT

23P-F84B8-V0-00

1
Out of stock

4

LEFT SIDE CASE, BLACK

23P-F84B8-S0-00

1
Out of stock

4

ALUMINUM SIDE CASE LID - LH

23P-W9751-1L-00

1
Out of stock

5

SIDECASE RIGHT

23P-F84B8-T0-00

1
Out of stock

6

RIGHT SIDE CASE, BLACK

23P-F84B8-R0-00

1
Out of stock

6

ALUMINUM SIDE CASE LID - RH

23P-W9751-1R-00

1
Out of stock

7

SPARE LOCK SET (1 PC)

23P-28406-00-00

1
Out of stock

8

SPARE LOCK SET ( 3 PCS)

23P-28407-00-00

1
Out of stock

9

BLANK KEY

4BH-82511-09-00

1

$24.43

In stock

10

ALUMINUM SIDE CASE HEAT SHIELD

23P-W9769-1L-00

1
Out of stock

11

BRACKET RUBBER SET, SIDE CASE

5VS-W9753-00-00

1
Out of stock

12

SPARE SC STAY UPPER - LH

23P-W9728-1L-00

1
Out of stock

13

SPARE SC STAY UPPER - RH

23P-W9728-1R-00

1
Out of stock

14

SPARE SC STAY LOWER - LH

23P-W9728-2L-00

1
Out of stock

15

SPARE SC STAY LOWER - RH

23P-W9728-2R-00

1
Out of stock

16

LOWER SUPPORT KIT (LH & RH)

23P-W9751-SK-00

1
Out of stock
