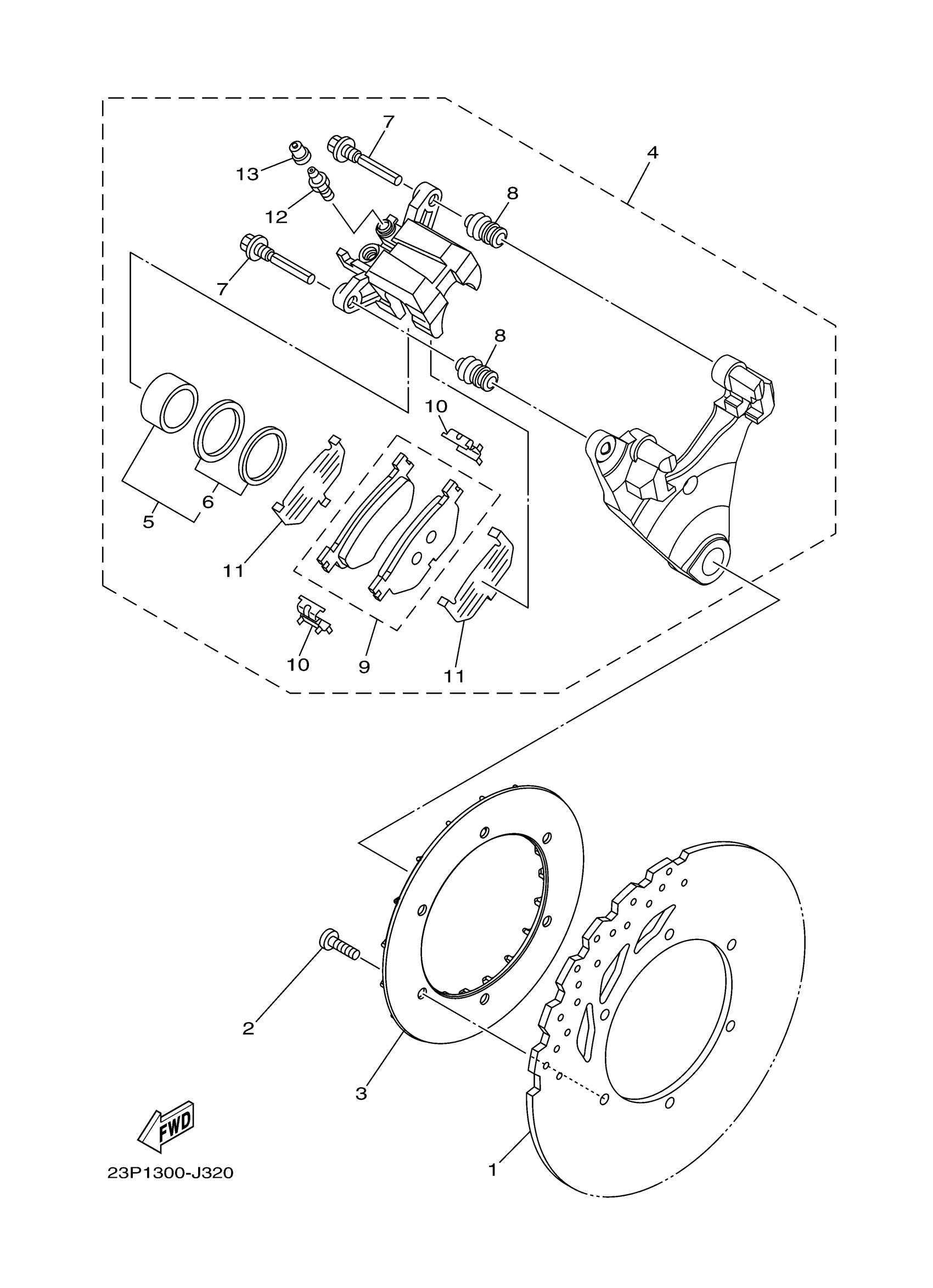

Yamaha XTZ12BL (SUPER TENERE) 23P40 2012 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

23P-2582W-01-00

$134.99

2

SCREW

90149-08029-00

$4.67

3

PLATE, DISK

23P-2581A-00-00

Unavailable

4

CALIPER ASSY, REAR 2

23P-2580W-00-00

$397.99

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$56.99

6

CALIPER SEAL KIT

5JW-25803-00-00

$16.49

7

PIN, SLIDE

5JW-25914-10-00

$22.99

8

BOOT 2

4TT-25937-00-00

$16.49

9

BRAKE PAD KIT 2

3D8-25806-00-00

$44.99

10

SUPPORT, PAD

5JW-25919-00-00

$17.49

11

SHIM, CALIPER

5JW-25827-00-00

$6.99

12

SCREW, BLEED

5GM-25824-00-00

$6.99

13

CAP

1D7-25825-00-00

$7.99
