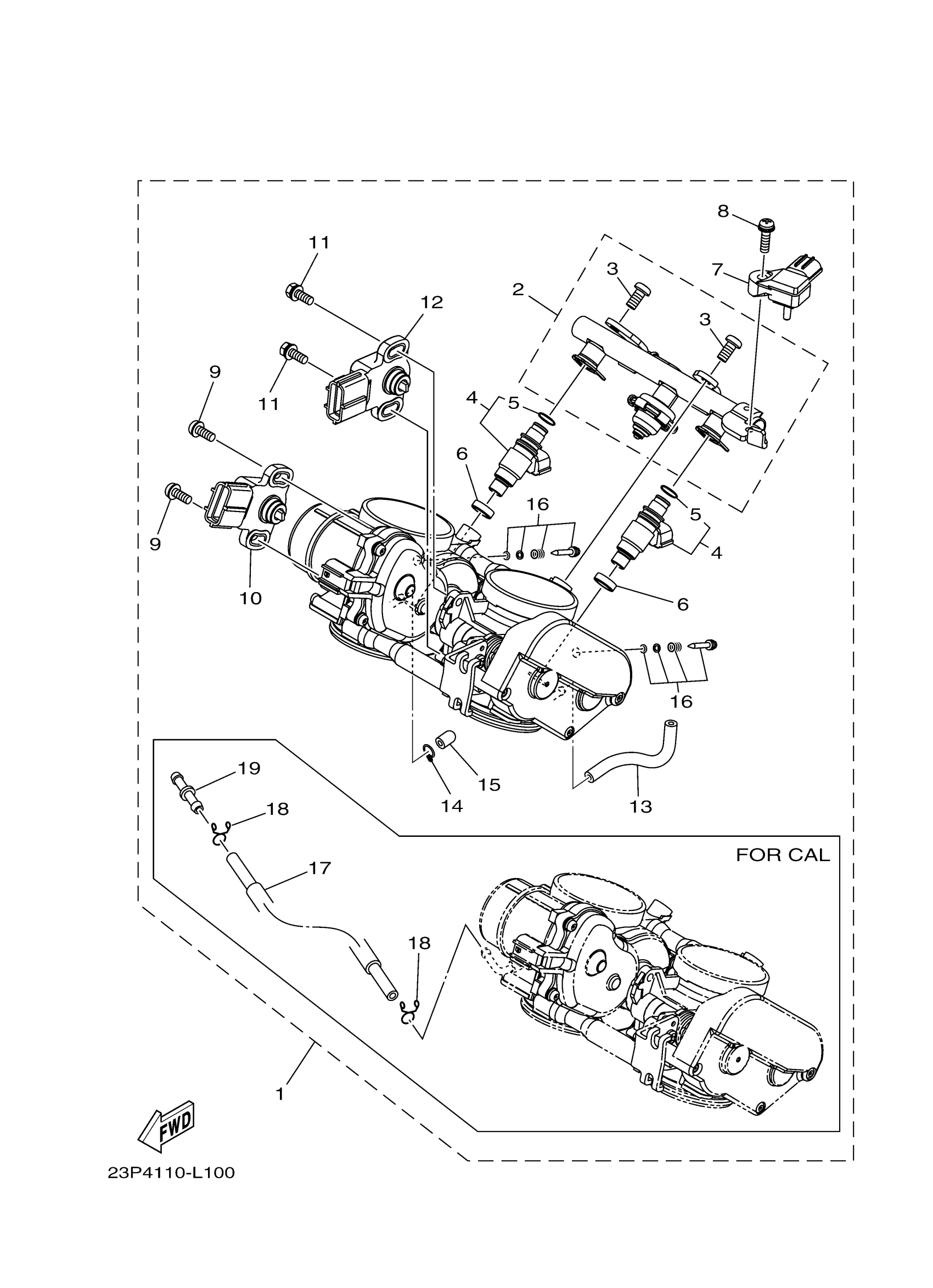

Yamaha XTZ12BL (SUPER TENERE) 23P40 2012 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

23P-13750-01-00

Unavailable

2

PIPE, INL.

23P-1393A-00-00

Unavailable

3

SCREW, PAN

98517-06012-00

$3.78

4

INJECTOR

23P-13761-00-00

$214.99

5

O-RING

5PS-14147-00-00

$13.49

6

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

7

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

8

SCREW

2C0-14216-00-00

$3.28

9

SCREW

8CC-14216-10-00

$7.99

10

THROTTLE SENSOR AS

13S-85885-01-00

$138.99

11

SCREW

5FL-14216-00-00

$6.99

12

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

$210.99

13

. HOSE, VACUUM SENSING 3

63P-13532-00-00

Unavailable

14

CLIP, PIPE

8A7-14139-00-00

$8.99

15

CAP

895-14169-00-00

$5.49

16

PILOT SCREW SET

2C0-14105-00-00

Unavailable
