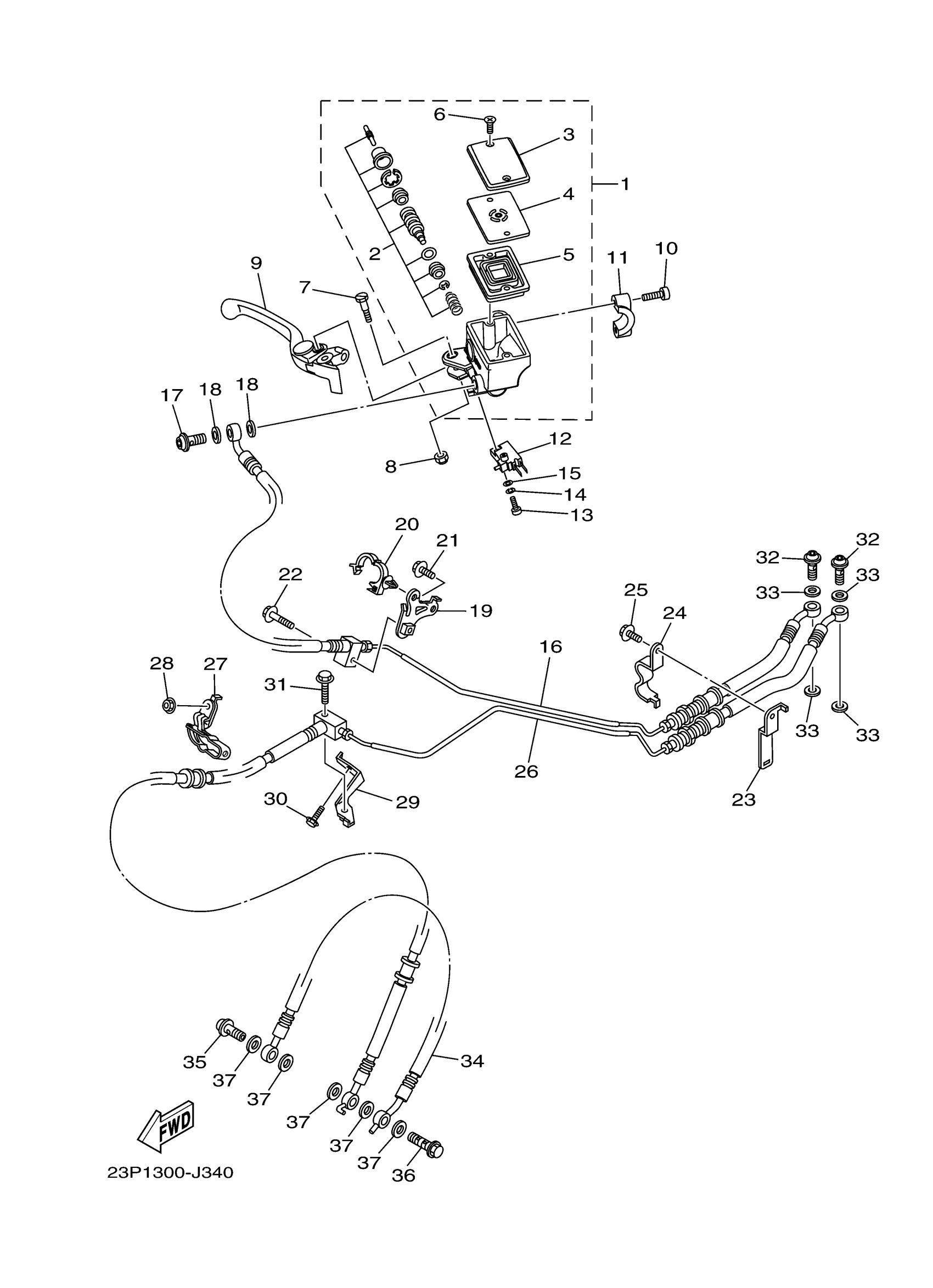

Yamaha XTZ12BL (SUPER TENERE) 23P40 2012 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

23P-2580A-00-00

$155.99

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$69.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

23P-2589F-10-00

$7.99

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

HOSE, BRAKE

23P-2584B-01-00

Unavailable

17

BOLT, UNION

90401-10172-00

Unavailable

18

GASKET

90430-10005-00

Unavailable

19

HOLDER, BRAKE HOSE 6

23P-2588G-00-00

Unavailable

20

CLAMP

90464-20010-00

Unavailable

21

BOLT, FLANGE

95022-06010-00

Unavailable

22

BOLT, FLANGE

95022-06025-00

Unavailable

23

HOLDER 2

23P-2639F-00-00

Unavailable

24

HOLDER, 3

23P-26482-00-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

26

HOSE, BRAKE

23P-2584C-01-00

Unavailable

27

HOLDER, BRAKE HOSE 5

23P-2588F-00-00

Unavailable

28

NUT, FLANGE

95702-06500-00

Unavailable

29

HOLDER

23P-26475-00-00

Unavailable

30

BOLT, FLANGE

95022-06016-00

Unavailable

31

BOLT, FLANGE

95022-06025-00

Unavailable

32

BOLT, UNION

90401-10172-00

Unavailable

33

GASKET

90430-10005-00

Unavailable

34

HOSE, BRAKE 1

23P-25872-00-00

Unavailable

35

BOLT, UNION

90401-10172-00

Unavailable

36

BOLT, UNION

90401-10038-00

Unavailable

37

GASKET

90430-10005-00

Unavailable
