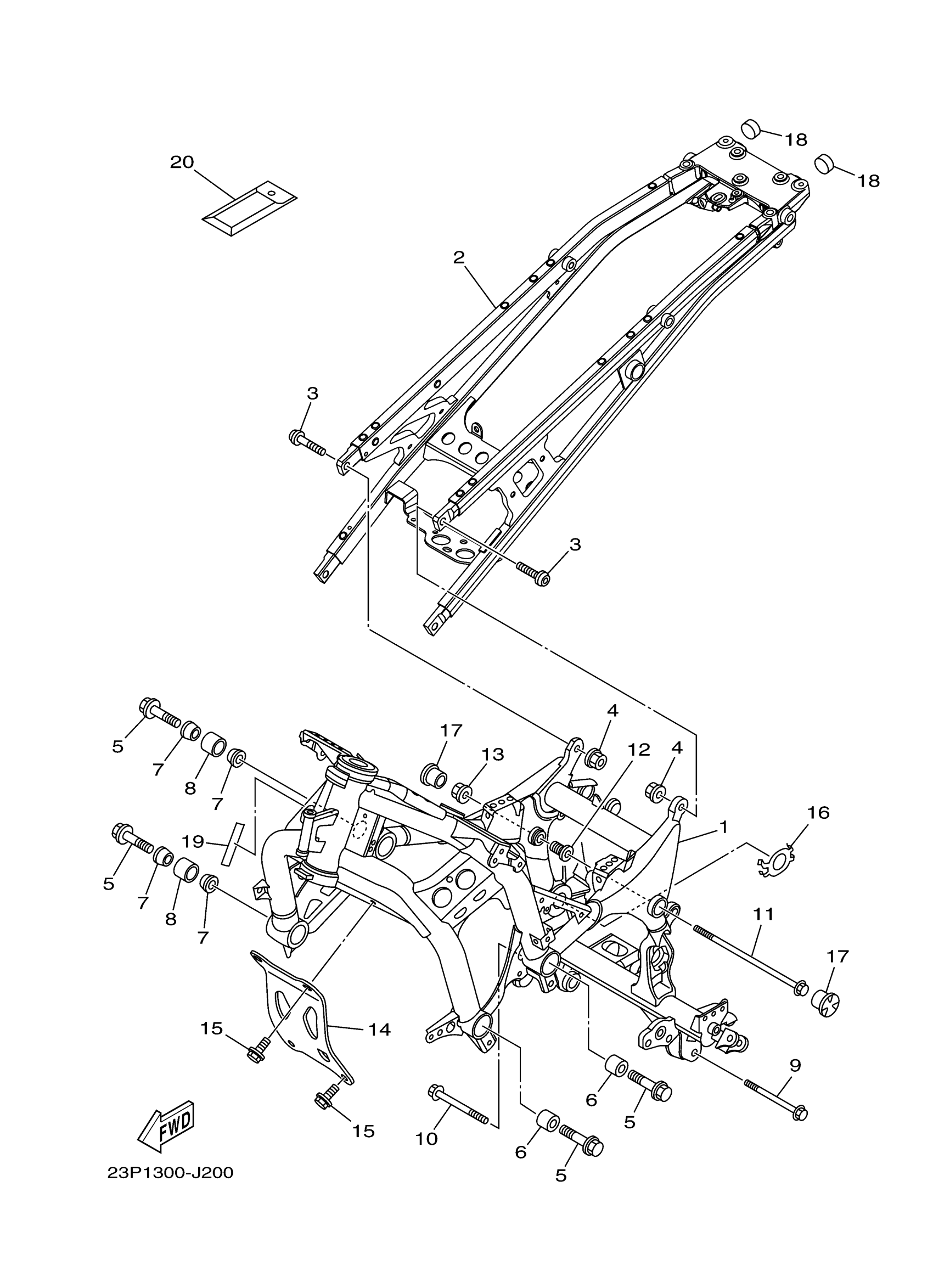

Yamaha XTZ12BL (SUPER TENERE) 23P40 2012 FRAME Diagram

#

Description
Price

1

FRAME COMP.

23P-21110-01-00

Unavailable

2

REAR FRAME COMP.

23P-21190-00-00

$636.99

3

SCREW

90149-10003-00

$9.49

4

NUT, S/L FLANGE

95602-10200-00

$4.82

5

BOLT, FLANGE

90105-12077-00

Unavailable

6

COLLAR

23P-21116-00-00

Unavailable

7

BOSS, ENGINE MOUNT

23P-21414-00-00

Unavailable

8

BOSS, ENGINE MOUNT

23P-21424-00-00

Unavailable

9

BOLT, FLANGE

90105-10075-00

$11.49

10

BOLT, FLANGE

90105-10175-00

$10.49

11

BOLT, FLANGE

90105-10380-00

$15.99

12

BOLT, ENGINE ADJUSTING

23P-21495-00-00

Unavailable

13

NUT

90179-10028-00

$7.49

14

STAY, ENGINE 5

23P-21318-00-00

Unavailable

15

BOLT,FLANGE

95817-12025-00

Unavailable

16

PLATE 1

23P-2191B-00-00

Unavailable

17

CAP, MAIN PIPE

23P-2111A-00-00

Unavailable

18

CAP

3YX-2143A-00-00

Unavailable

19

PROTECTOR

3D8-2117G-00-00

Unavailable

20

TOOL KIT

23P-28100-00-00

Unavailable
