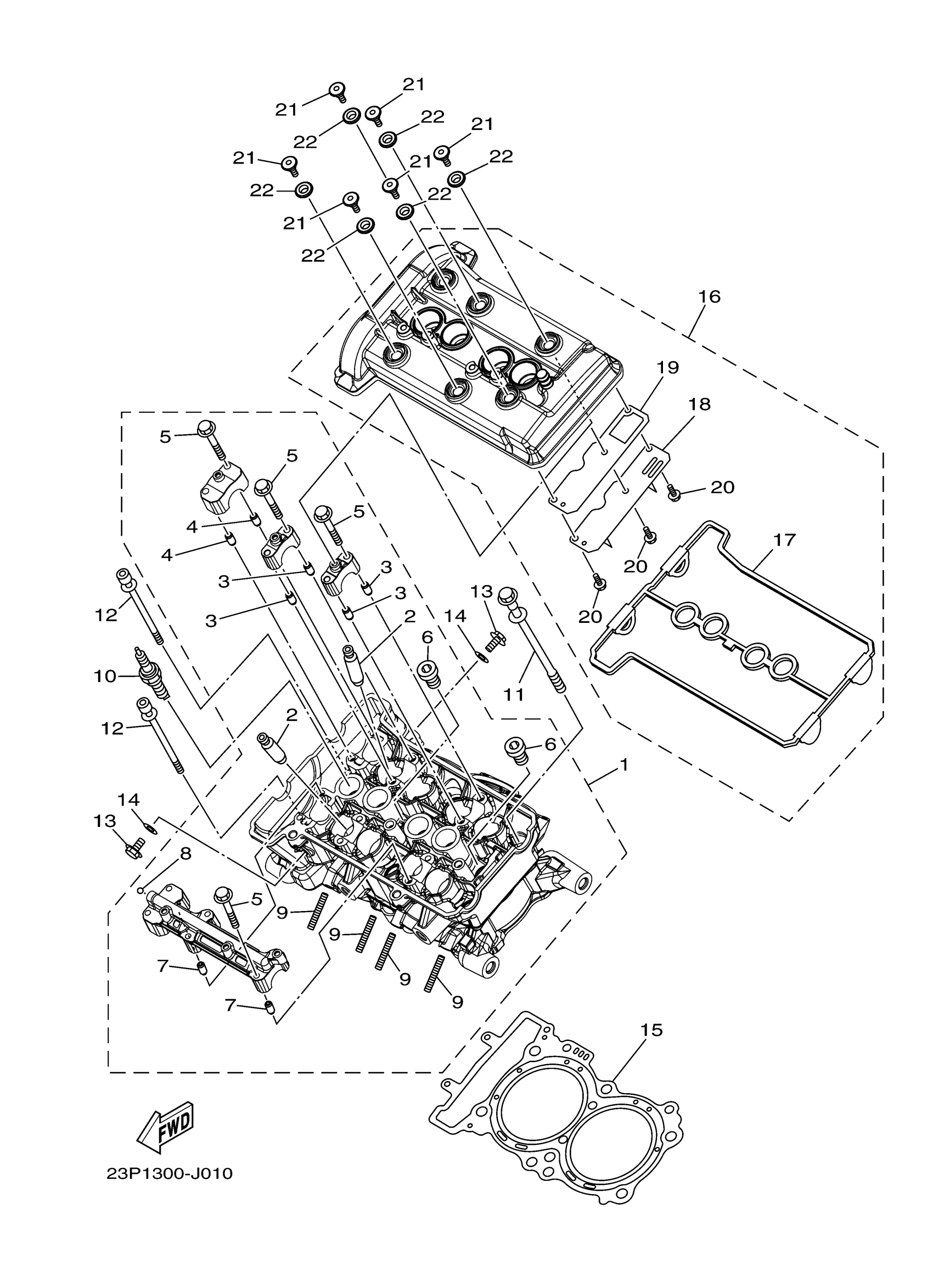

Yamaha XTZ12BL (SUPER TENERE) 23P40 2012 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

23P-11101-08-00

$1,076.99

2

GUIDE, VALVE 1

23P-11133-10-00

$80.99

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BALL

93501-04011-00

$8.49

9

BOLT, STUD

95612-08625-00

$7.49

10

CPR8EB-9 NGK SPLUG 4PK

CPR-8EB90-00-00

Unavailable

11

BOLT, WITH WASHER

90119-12003-00

$46.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06229-00

$5.60

13

BOLT, FLANGE

95022-08012-00

$12.49

14

GASKET

90430-08119-00

$6.62

15

GASKET, CYLINDER HEAD 1

23P-11181-00-00

$71.99

16

COVER, CYLINDER HEAD 1

23P-11190-01-00

Unavailable

17

GASKET, HEAD COVER 1

23P-11193-00-00

Unavailable

18

PLATE, BREATHER

23P-11165-00-00

Unavailable

19

GASKET, BREATHER COVER

23P-11169-00-00

Unavailable

20

BOLT, FLANGE

95022-06020-00

Unavailable

21

BOLT(4BP)

90109-066F0-00

Unavailable

22

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable
