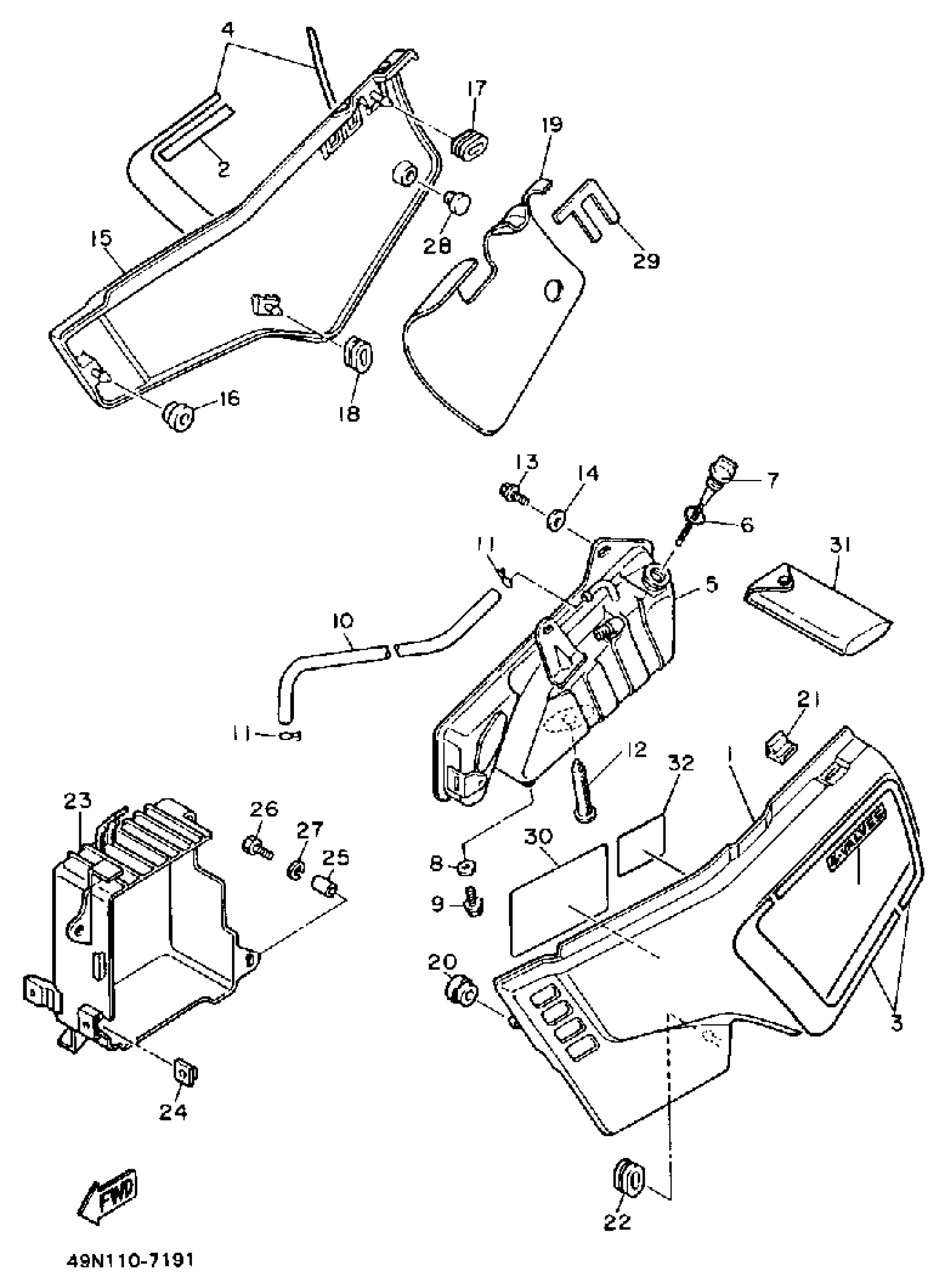

Yamaha XT600WC (XT600 CA) 1989 SIDE COVER - OIL TANK Diagram

#

Description
Price

1

COVER, SIDE LH

43F-21711-00-1X

Unavailable

2

EMBLEM 7

47N-21787-00-00

Unavailable

3

GRAPHIC SET 1

49N-2173L-00-00

Unavailable

4

GRAPHIC SET 2

49N-2174L-00-00

Unavailable

5

OIL TANK ASSEMBLY

34L-21750-02-00

Unavailable

6

O-RING

93210-21190-00

$7.49

7

GAUGE, LEVEL

34L-21761-01-00

Unavailable

8

WASHER, PLATE 3411117500

90201-08087-00

$3.71

9

BOLT, FLANGE

95817-08012-00

$5.49

10

HOSE

90445-11753-00

Unavailable

11

CLIP

90467-100A1-00

$7.49

12

NET, FILTER

1VJ-21756-00-00

Unavailable

13

BOLT, FLANGE

95817-08012-00

$5.49

14

WASHER, PLATE (12X)

90201-087F0-00

$5.60

15

COVER, SIDE RH

43F-21721-00-1X

Unavailable

16

GROMMET

90480-13014-00

Unavailable

17

GROMMET(41Y)

90480-01401-00

Unavailable

18

GROMMET(34L)

90480-01385-00

Unavailable

19

INSULATOR, SIDE CVR

43F-2174A-00-00

Unavailable

20

GROMMET

90480-13014-00

Unavailable

21

GROMMET

43F-21773-00-00

Unavailable

22

GROMMET(34L)

90480-01385-00

Unavailable

23

BOX, BATTERY

34L-2177G-00-00

Unavailable

24

PLATE, CLNR CS FTNG

4H7-14484-00-00

Unavailable

25

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

STOPPER

30X-24768-00-00

Unavailable

29

INSULATOR,SIDE CVR

43F-2174A-11-00

Unavailable

30

PLATE, SPEC

3EW-21683-00-00

Unavailable

30

PLATE, SPECIFICATIO

3EW-21687-00-00

Unavailable

31

TOOL KIT

1LN-W2810-01-00

Unavailable

32

PLATE, EPA CAL 2

3EW-2179R-00-00

Unavailable

32

PLATE, EPA U49

3EW-2179V-00-00

Unavailable
