1989 Yamaha XT600 CA (XT600WC) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1989 Yamaha XT600 CA (XT600WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

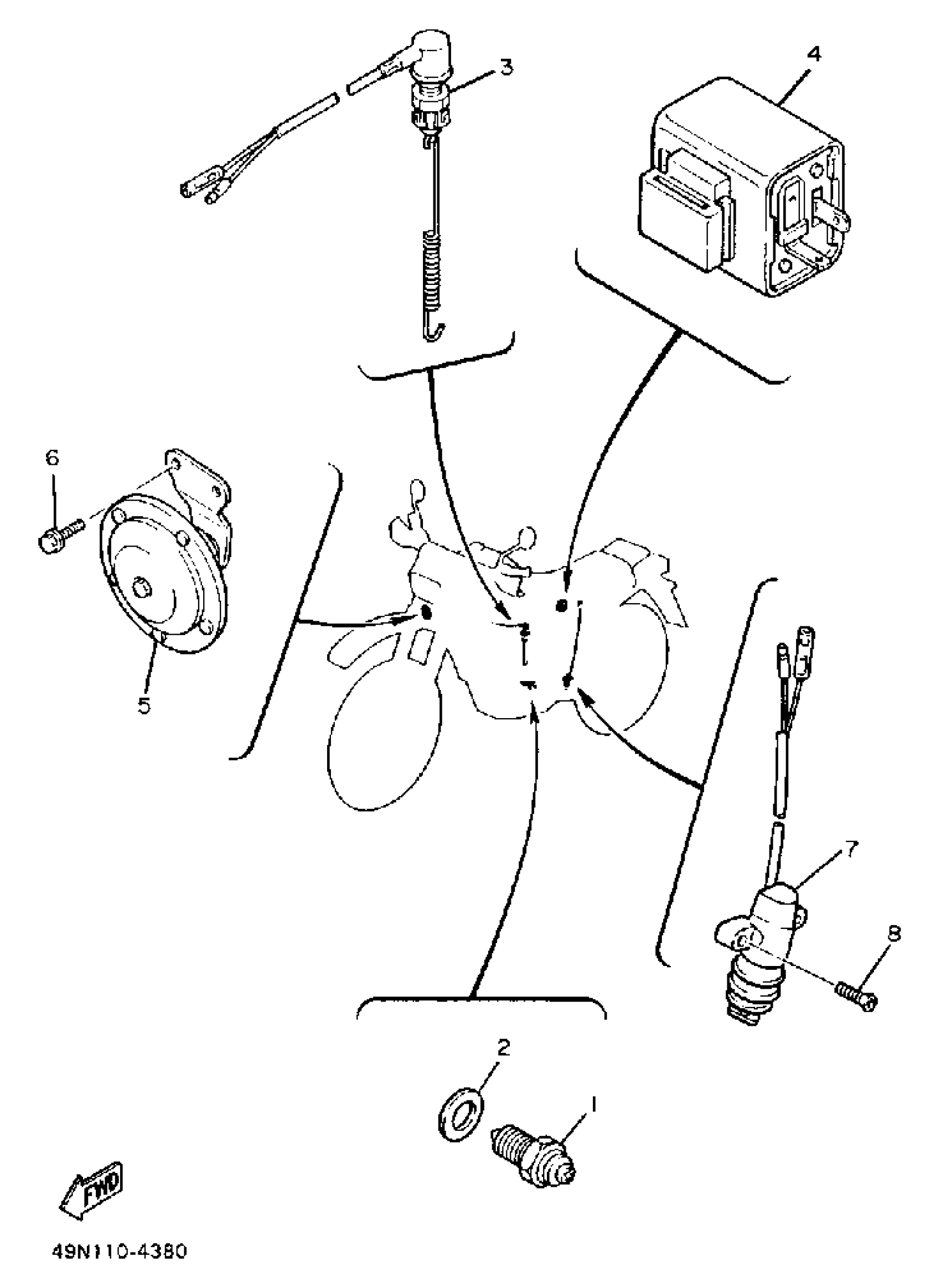

1989 Yamaha XT600 CA (XT600WC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

2

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

3

STOP SWITCH ASSEMBLY

34L-82530-02-00

1
Out of stock

4

FLASHER RELAY ASSY

30X-83350-20-00

1
Out of stock

5

HORN

1FK-83371-02-00

1
Out of stock

6

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

7

SWICH, SIDE STAND

5Y1-82566-00-00

1
Out of stock

8

SCREW, FLAT

98707-05016-00

1

$5.60

In stock
