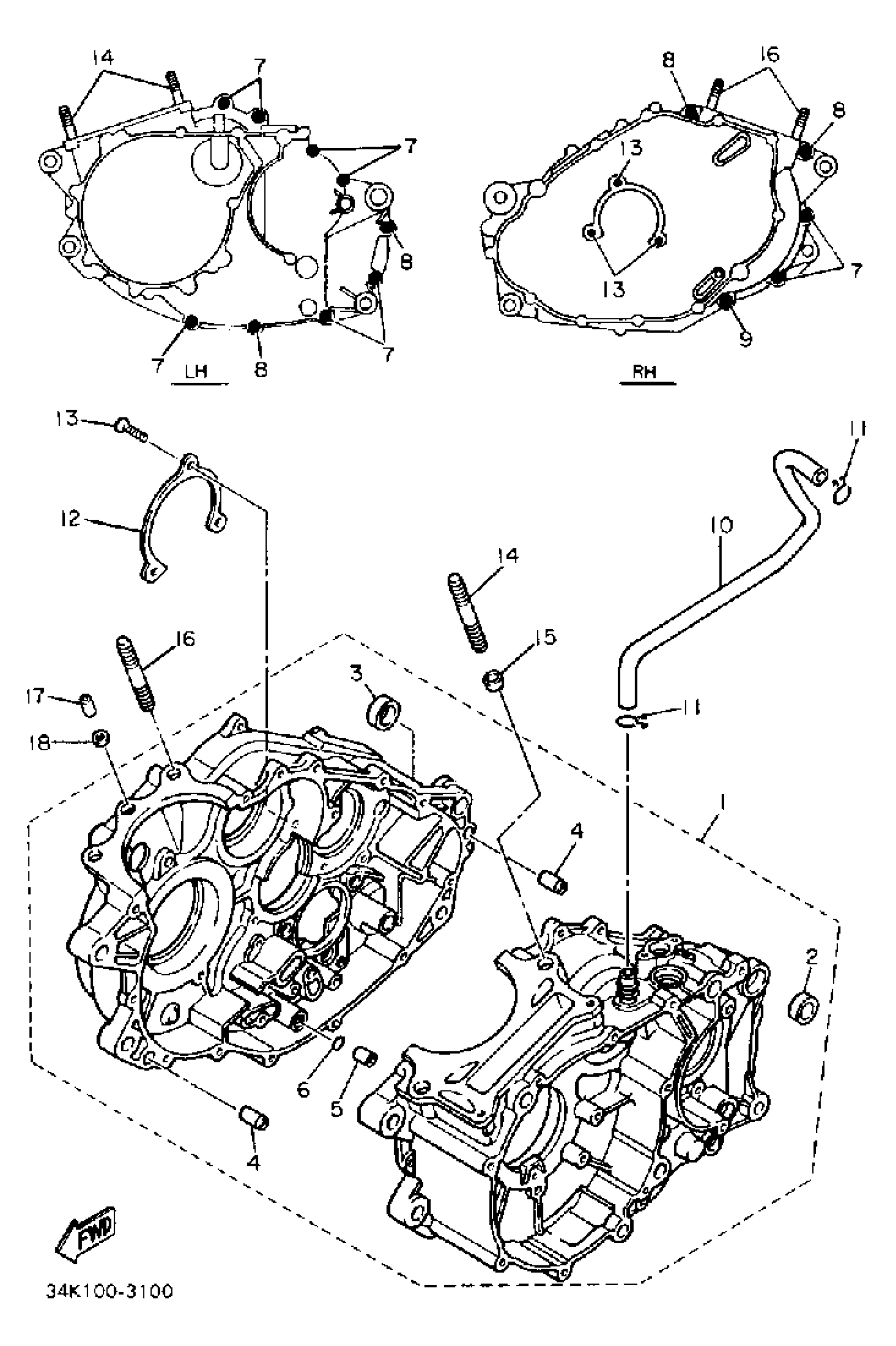

Yamaha XT600WC (XT600 CA) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

34L-15100-05-00

Unavailable

2

COLLAR

90387-17009-00

$15.99

3

COLLAR (3Y1)

90387-16782-00

$4.99

4

PIN, DOWEL

99530-12016-00

$4.89

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

8

BOLT,SOCKET

91317-06045-00

$4.99

9

BOLT,SOCKET

91317-06060-00

$3.76

10

PIPE, BREATHER 1

34L-11166-00-00

Unavailable

11

CLIP (371)

90467-14015-00

$8.49

12

PLATE, BEARING COVER

5Y1-15383-00-00

Unavailable

13

SCREW, FLAT

98707-06012-00

$8.49

14

BOLT, STUD(1JK)

90116-10506-00

$4.77

15

PIN, DOWEL

99530-12016-00

$4.89

16

BOLT, STUD (1W4)

90116-10263-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$8.49

18

GASKET (5Y1)

90430-08178-00

Unavailable
