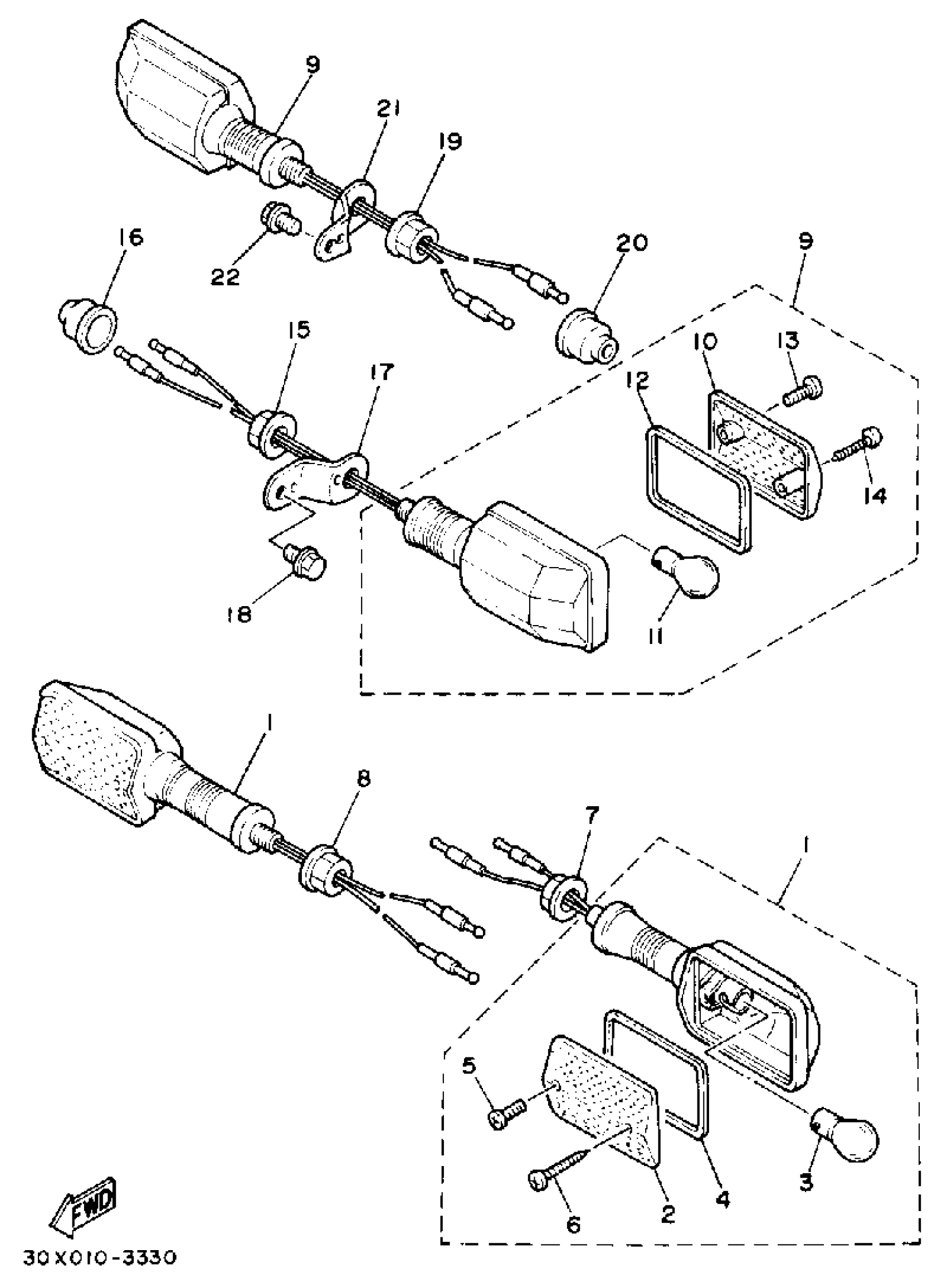

Yamaha XT600UC (XT600 CA) 1988 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSEMBLY 1

5Y1-83310-70-00

Unavailable

2

LENS FLASHER

5Y1-83312-00-00

$13.49

3

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

4

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

5

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

6

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

7

NUT, HEXAGON SMALL

95317-12700-00

$8.49

8

NUT, HEXAGON SMALL

95317-12700-00

$8.49

9

REAR FLASHER LIGHT ASSY 1

37A-83330-21-00

$121.99

10

LENS FLASHER

5Y1-83312-00-00

$13.49

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

13

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

14

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

15

NUT, HEXAGON SMALL

95317-12700-00

$8.49

16

CAP

10V-83365-01-00

Unavailable

17

STAY, FLASHER 1

10V-83368-00-00

Unavailable

18

BOLT, SMALL FLANGE

95027-08012-00

Unavailable

19

NUT, HEXAGON SMALL

95317-12700-00

$8.49

20

CAP

10V-83365-01-00

Unavailable

21

STAY, FLASHER 2

10V-83369-00-00

Unavailable

22

BOLT, SMALL FLANGE

95027-08012-00

Unavailable
