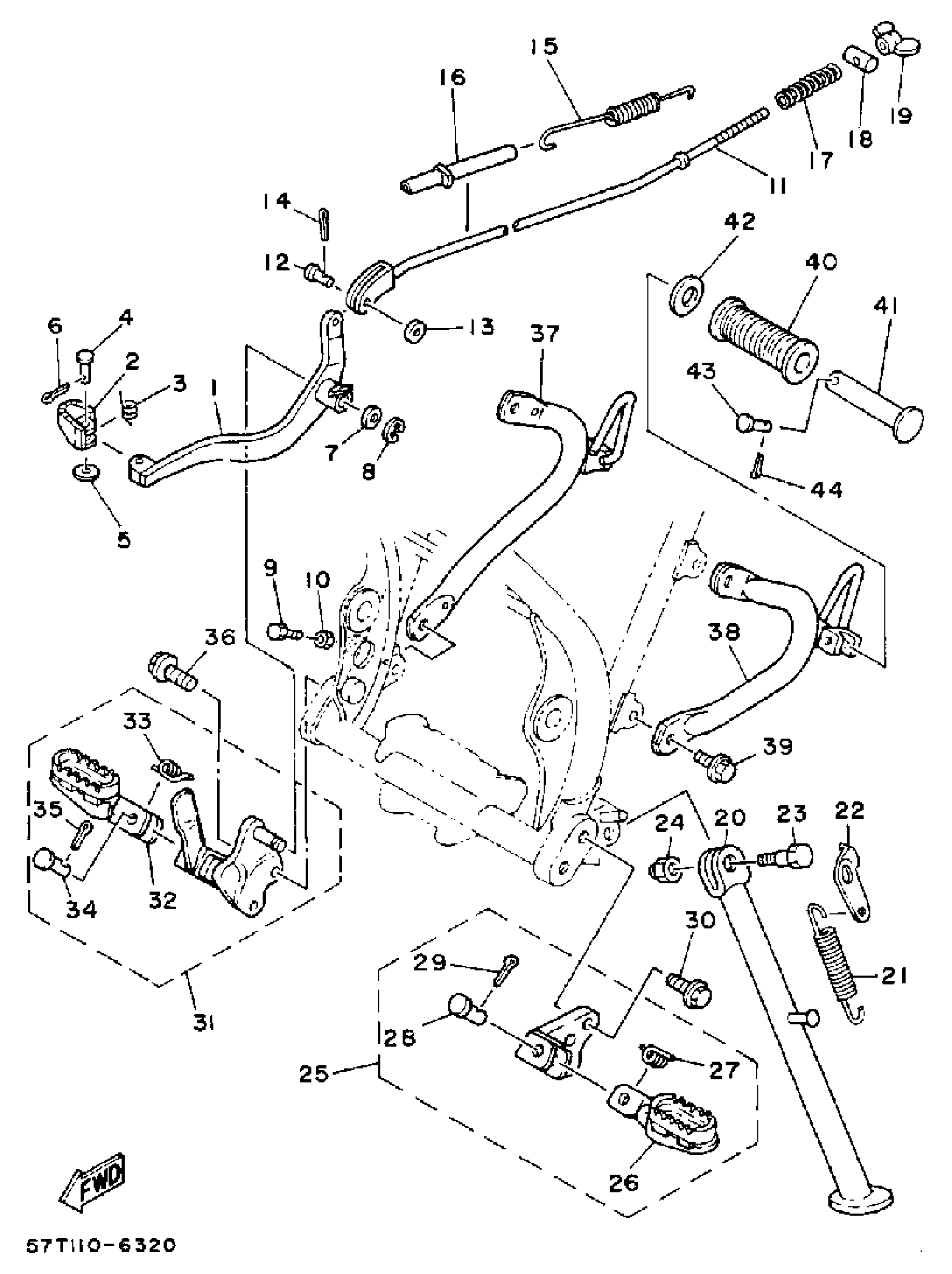

Yamaha XT600UC (XT600 CA) 1988 STAND Diagram
#
1
PEDAL, BRAKE
55V-27211-00-00
Unavailable
6
UNAVAILABLE IN PRICE BOOK
91401-20???-
Unavailable
7
UNAVAILABLE IN PRICE BOOK
90201-12500-00
Unavailable
10
UNAVAILABLE IN PRICE BOOK
95???-67000-0
Unavailable
11
UNAVAILABLE IN PRICE BOOK
3??-?????-10-00
Unavailable
16
COVER, SPRING
1M1-27244-00-00
Unavailable
17
SPRING, (180-27236-00)
90501-10245-00
Unavailable
18
PIN 1562723700
90249-12008-00
Unavailable
19
NUT (25K)
90179-06411-00
Unavailable
20
STAND SIDE
55V-27311-02-00
Unavailable
21
SPRING, MAIN STAND
4KN-27116-00-00
Unavailable
22
LINK, SIDE STAND
42U-27315-01-00
Unavailable
23
BOLT
90109-10635-00
Unavailable
24
NUT, U
90185-10037-00
Unavailable
25
FRONT FOOTREST ASSEMBLY (LEFT)
30X-27410-00-90
Unavailable
26
FOOTREST 1
22W-27411-01-90
Unavailable
27
SPRING, TORSION (214-27426-00)
90508-20023-00
Unavailable
28
PIN, CLEVIS (2A6)
91701-08038-00
Unavailable
29
PIN, COTTER
91490-25020-00
Unavailable
30
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
31
FRONT FOOTREST ASSEMBLY (RIGHT)
55V-27420-00-90
Unavailable
32
FOOTREST 2
22W-27421-01-90
Unavailable
33
SPRING, TORSION (214-27426-00)
90508-20023-00
Unavailable
34
PIN, CLEVIS (2A6)
91701-08038-00
Unavailable
35
PIN, COTTER
91490-25020-00
Unavailable
36
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
37
BRACKET 2
55V-27442-10-00
Unavailable
38
BRACKET 1
26F-27432-10-00
Unavailable
39
BOLT (34L)
90109-08789-00
Unavailable
40
COVER, REAR FOOTREST
120-27433-00-00
Unavailable
41
FOOTREST, REAR 1
2GV-27431-00-00
Unavailable
42
WASHER, PLATE (888)
90201-20279-00
Unavailable
43
PIN, CLEVIS (1Y8)
91701-06032-00
Unavailable
44
PIN, COTTER
91490-16020-00
Unavailable
