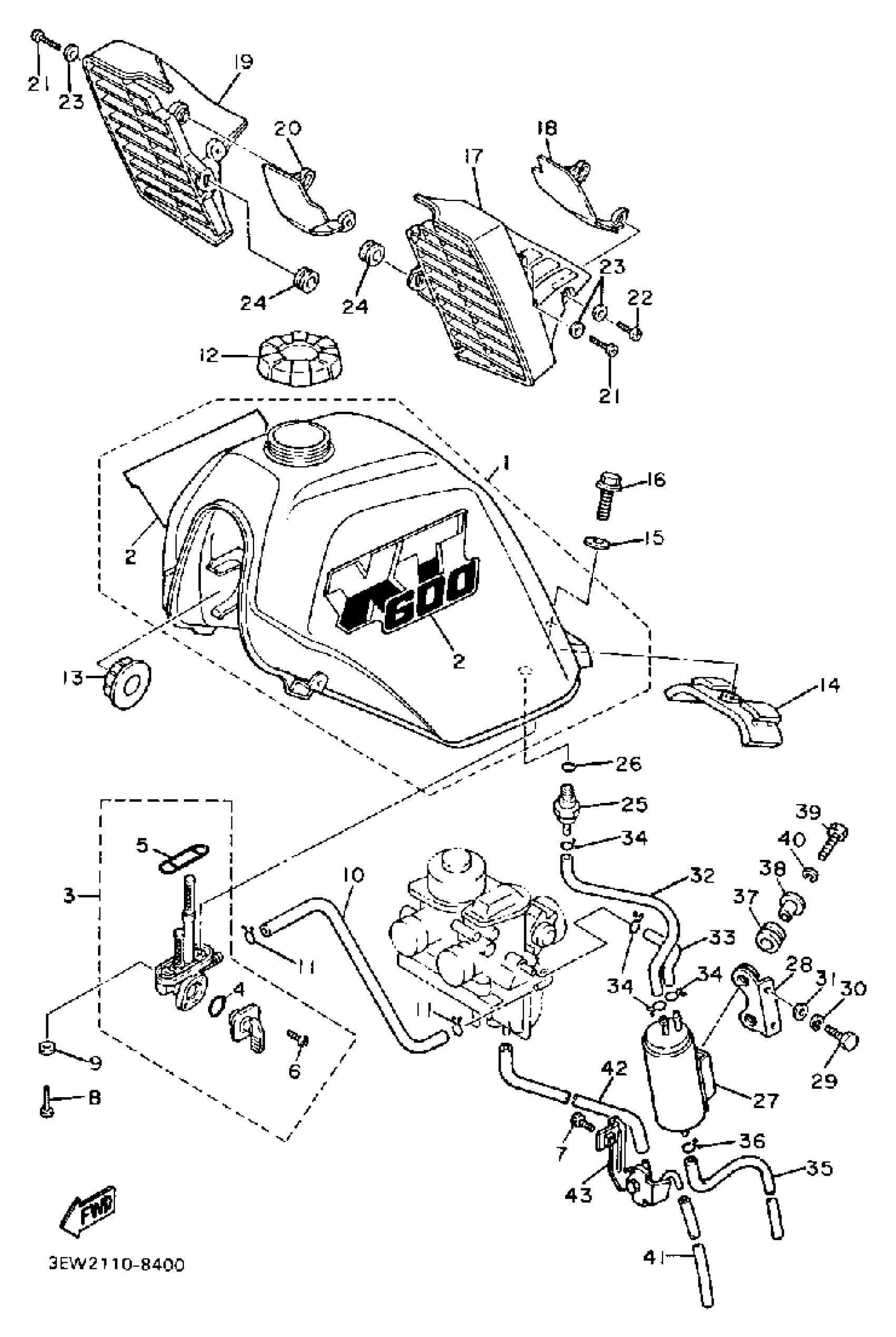

Yamaha XT600UC (XT600 CA) 1988 FUEL TANK (CALIFORNIA MODEL ONLY) Diagram

FUEL TANK

49R-24110-00-04

Unavailable

. GRAPHIC SET

47N-24240-00-00

Unavailable

FUEL COCK ASSY 1

3FY-24500-01-00

$57.99

O-RING

4X8-24534-00-00

$13.49

O-RING

4X8-24512-00-00

$8.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

BOLT, SOCKET

91317-08012-00

$9.49

SCREW 256241430000

90149-06011-00

$5.60

WASHER, PLATE(3MB)

90202-05187-00

$1.38

HOSE (L200)

90445-10752-00

$4.99

CLIP

90467-090A2-00

$4.41

CAP ASSEMBLY

49R-24610-00-00

Unavailable

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

DAMPER, LOCATING 2

43F-24182-00-00

Unavailable

WASHER, SPEC''L SHAP

90209-07256-00

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable

SCOOP, AIR 1

43F-2137W-10-00

Unavailable

GUIDE, AIR 1

43F-2137U-00-00

Unavailable

SCOOP, AIR 2

43F-2137X-10-00

Unavailable

GUIDE, AIR 2

43F-2137V-00-00

Unavailable

SCREW,SPEC'L SHAPE

90149-06315-00

Unavailable

SCREW, SPEC''L SHAPE

90149-06200-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable

GROMMET (1U6)

90480-08216-00

Unavailable

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

O-RING (4G0)

93210-11453-00

Unavailable

CANISTER ASSY

4BE-24170-00-00

Unavailable

CANISTER HOLDER

(1WN-24190-00-00)

Unavailable

BOLT, HEXAGON

97017-08016-00

Unavailable

WASHER(JN5)

92907-08100-00

Unavailable

WASHER(6TA)

92907-08600-00

Unavailable

HOSE (L590)

90445-10020-00

Unavailable

PIPE 2

(1WN-24312-00-00)

Unavailable

CLIP

90467-090A2-00

$4.41

PIPE, FUEL 1

(4A0-24311-00-00)

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

GROMMET(56R)

90480-15342-00

Unavailable

COLLAR(52E)

90387-063G3-00

Unavailable

BOLT, HEXAGON

97017-06025-00

Unavailable

WASHER, SPRING

92907-06100-00

Unavailable

PIPE

56R-14193-00-00

Unavailable

PIPE

(1WN-14148-00-00)

Unavailable

BRACKET 1

(1WN-14291-00-00)

Unavailable
