1988 Yamaha XT600 (XT600U) Stand - Footrest Diagram

← All diagrams

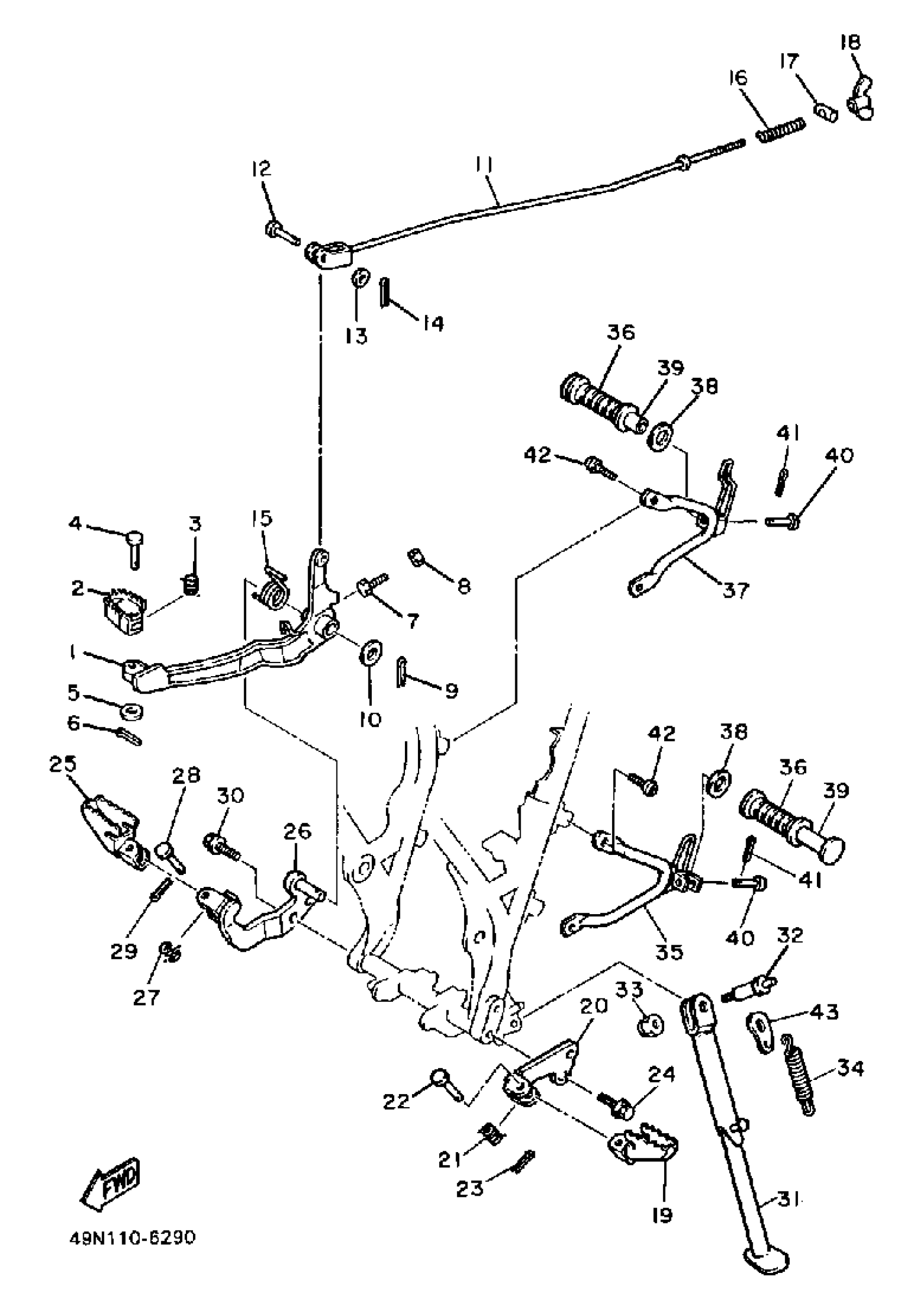

Find the part on the Stand - Footrest diagram for your 1988 Yamaha XT600 (XT600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha XT600 (XT600U) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1VJ-27200-00-90

1
Out of stock

2

PEDAL, BRAKE

55V-27242-00-00

1

$19.86

In stock

3

SPRING, TORSION (1W2)

90508-14352-00

1

$6.89

In stock

4

PIN, COTTER (1W2)

91701-06022-00

1

$1.83

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

PIN COTTER

91490-30025-00

1
Out of stock

10

WASHER PLATE 148272190000

90201-14215-00

1
Out of stock

11

ROD, BRAKE

43F-27231-00-00

1
Out of stock

12

PIN, CLEVIS (24X)

90240-06103-00

1

$6.45

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

SPRING, TORSION

90508-32690-00

1
Out of stock

16

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

17

PIN 1562723700

90249-12008-00

—

$4.70

In stock

18

NUT (25K)

90179-06411-00

—

$5.10

In stock

19

FOOTREST 1

22W-27411-01-90

—
Out of stock

20

BRACKET, FOOTREST 1

34L-27412-00-R4

1
Out of stock

21

—

$3.26

In stock

22

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

23

PIN, COTTER

91490-25020-00

—

$2.94

In stock

24

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

25

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

26

BRACKET, FOOTREST 2 (34L-27422-01-R4)

34L-27422-01-00

1
Out of stock

27

—

$3.26

In stock

28

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

29

PIN, COTTER

91490-25020-00

—

$2.94

In stock

30

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

31

STAND,SIDE

55W-27311-01-00

1
Out of stock

32

BOLT, WASHER BASED

90105-12616-00

1
Out of stock

33

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

34

SPRING, MAIN STAND

4KN-27116-00-00

—

$10.32

In stock

35

BRACKET 1

26F-27432-10-00

1
Out of stock

36

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

37

BRACKET 2

50T-27442-00-33

1
Out of stock

38

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

39

FOOTREST, REAR 1

2GV-27431-00-00

—

$27.39

In stock

40

PIN, CLEVIS (1Y8)

91701-06032-00

—

$6.85

In stock

41

PIN, COTTER

91490-16020-00

1

$6.23

In stock

42

BOLT (34L)

90109-08789-00

—

$6.38

In stock

43

LINK, SIDE STAND

5Y1-27315-00-00

—

$13.28

In stock
