1988 Yamaha XT600 (XT600U) Fender Diagram

← All diagrams

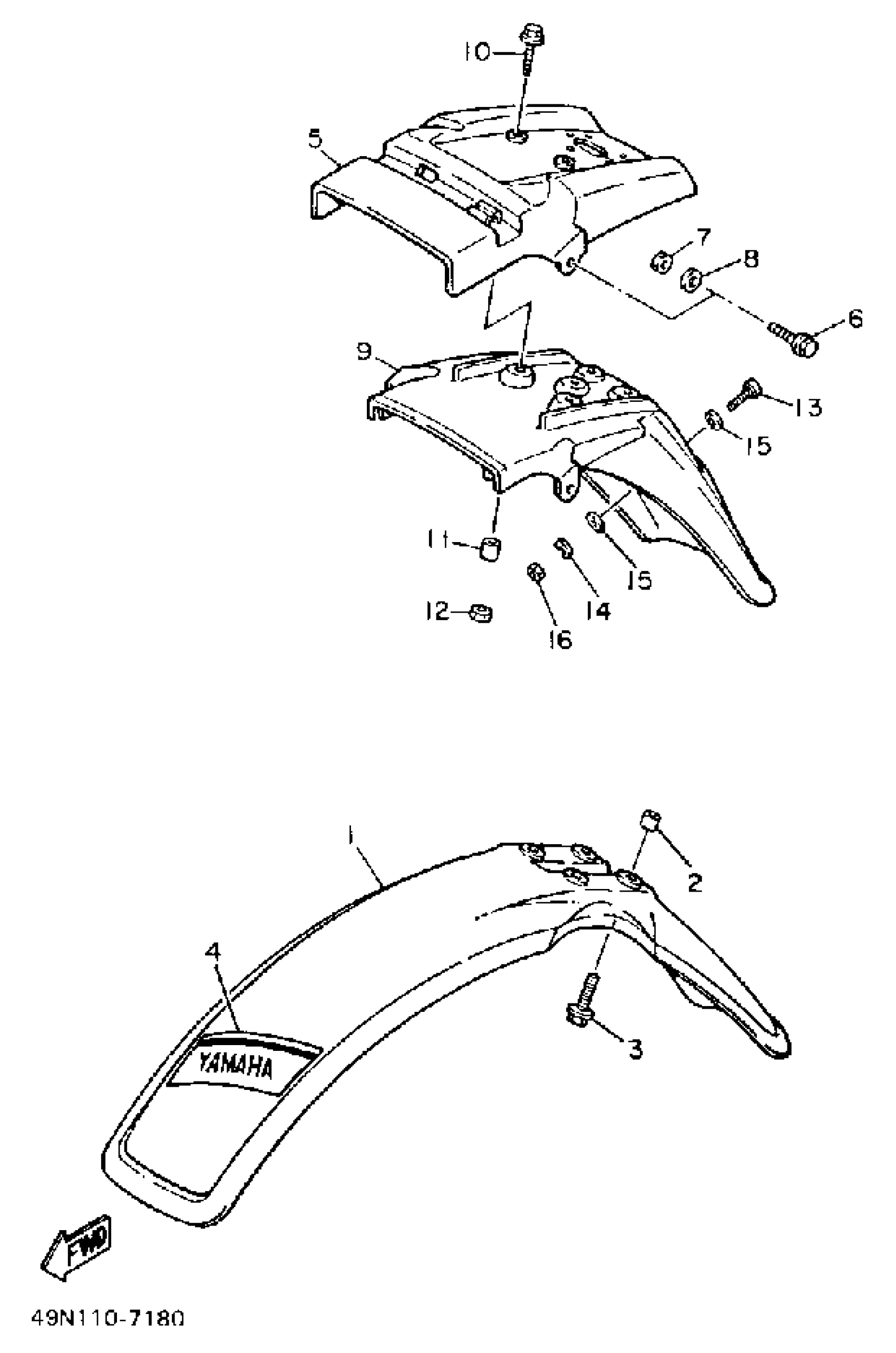

Find the part on the Fender diagram for your 1988 Yamaha XT600 (XT600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha XT600 (XT600U) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (WHITE)

30X-21511-00-00

1
Out of stock

2

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

3

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

4

SEAL 1

47N-21575-00-00

1
Out of stock

5

FENDER, REAR

34L-21611-20-00

1
Out of stock

6

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

9

BRACKET, LICENSE

34L-21685-00-00

1
Out of stock

10

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

11

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLATE

90201-06M08-00

1
Out of stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
