1988 Yamaha XT600 (XT600U) Headlight Diagram

← All diagrams

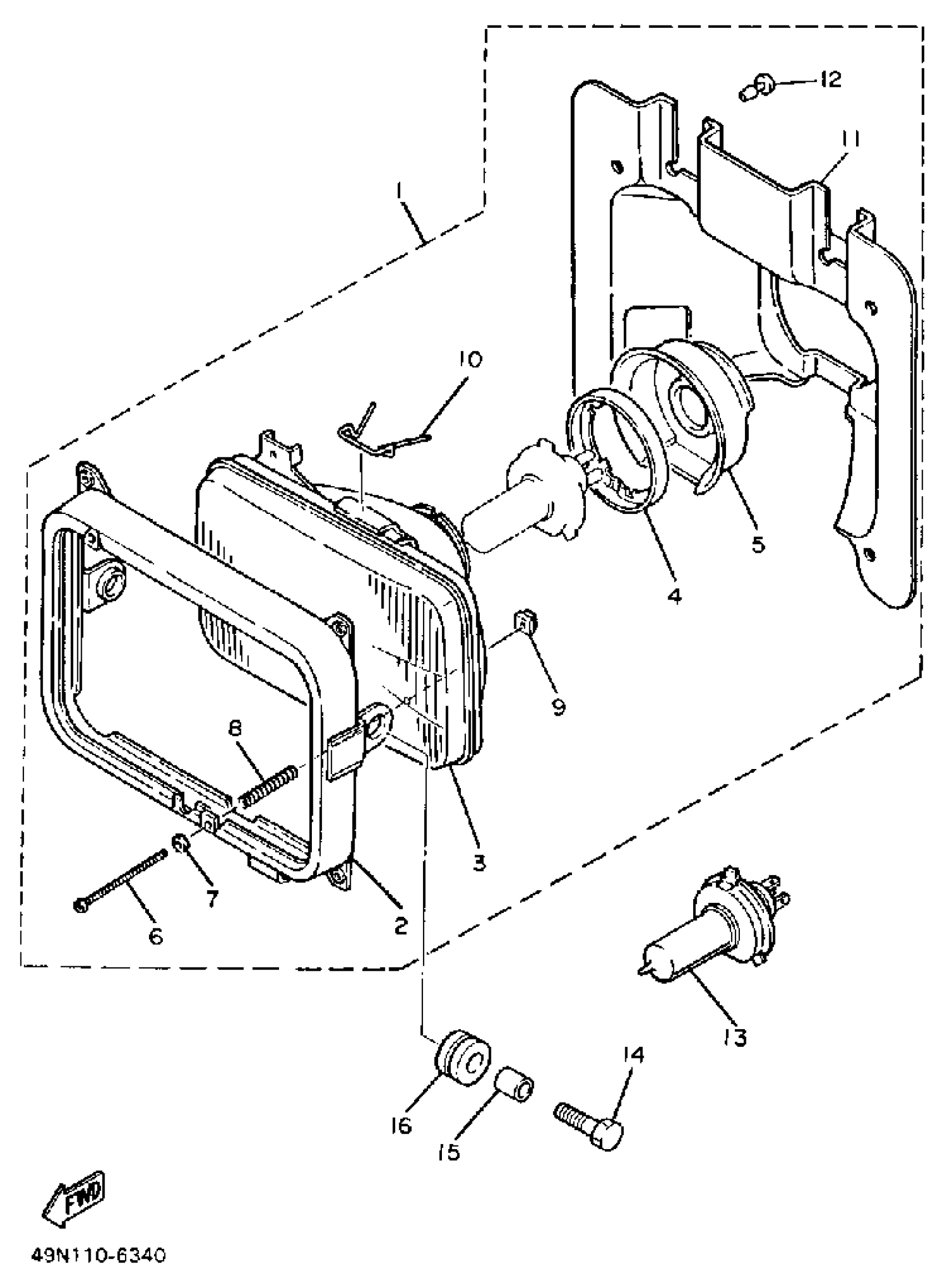

Find the part on the Headlight diagram for your 1988 Yamaha XT600 (XT600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha XT600 (XT600U) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

(49M-84303-A0-00)

1
Out of stock

2

RIM, HEADLIGHT

47J-84115-00-00

1

$140.06

In stock

3

. LENS, HEADLIGHT

5G2-84321-A0-00

1
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

SCREW, RIM ADJUSTER

43F-84131-00-00

1

$8.95

In stock

7

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

8

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

SPRING, SET

14T-84124-00-00

1

$4.68

In stock

11

COVER

10V-84196-00-00

—
Out of stock

12

CLIP COVER FITTING

10V-84198-00-00

—

$5.38

In stock

13

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

14

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

15

COLLAR

90387-06158-00

1

$6.17

In stock

16

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
