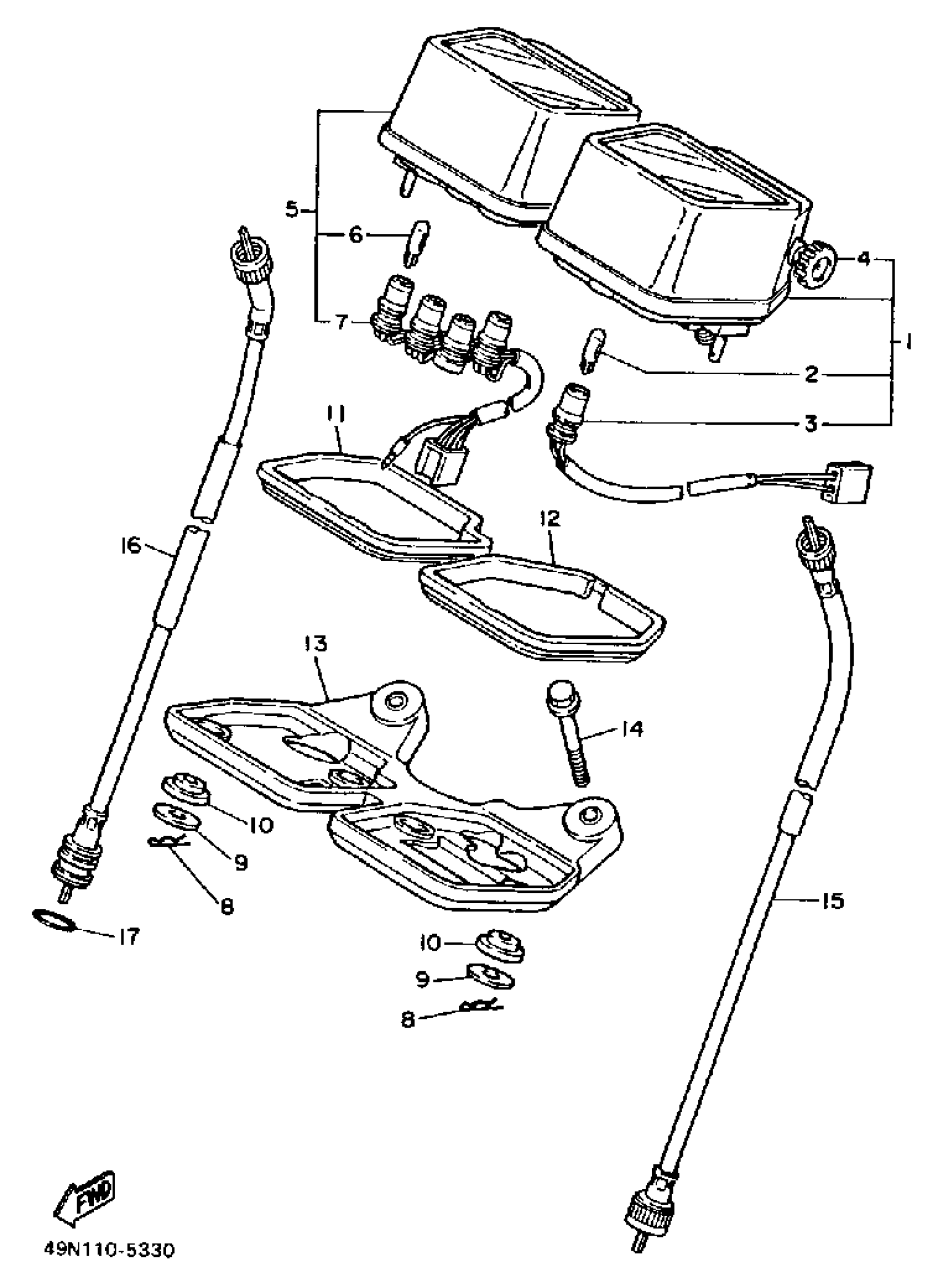

Yamaha XT600TC (XT600 CA) 1987 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

43F-83570-G1-00

Unavailable

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

3

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

4

KNOB, TRIP METER

5Y1-83578-00-00

$21.05

5

TACHOMETER ASY

2NF-83540-00-00

Unavailable

6

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

7

. SOCKET CORD ASSEMBLY (30X-83520-00-00)

5Y1-83520-00-00

Unavailable

8

CLIP (156-83525-00)

90468-10050-00

$2.20

9

WASHER PLATE 829771780000

90201-05033-00

$6.76

10

DAMPER 2

1M1-83526-01-00

$3.59

11

DAMPER

5Y1-83541-00-00

$18.91

12

DAMPER

5Y1-83513-00-00

Unavailable

13

BRACKET, METER

5Y1-83519-00-00

$51.73

14

BOLT, FLANGE

95817-06040-00

$4.33

15

SPEEDOMETER CABLE ASSY

16M-83550-01-00

$35.14

16

TACHOMETER CABLE ASSY

4PT-83560-01-00

Unavailable

17

O-RING (26H)

93210-14579-00

Unavailable
