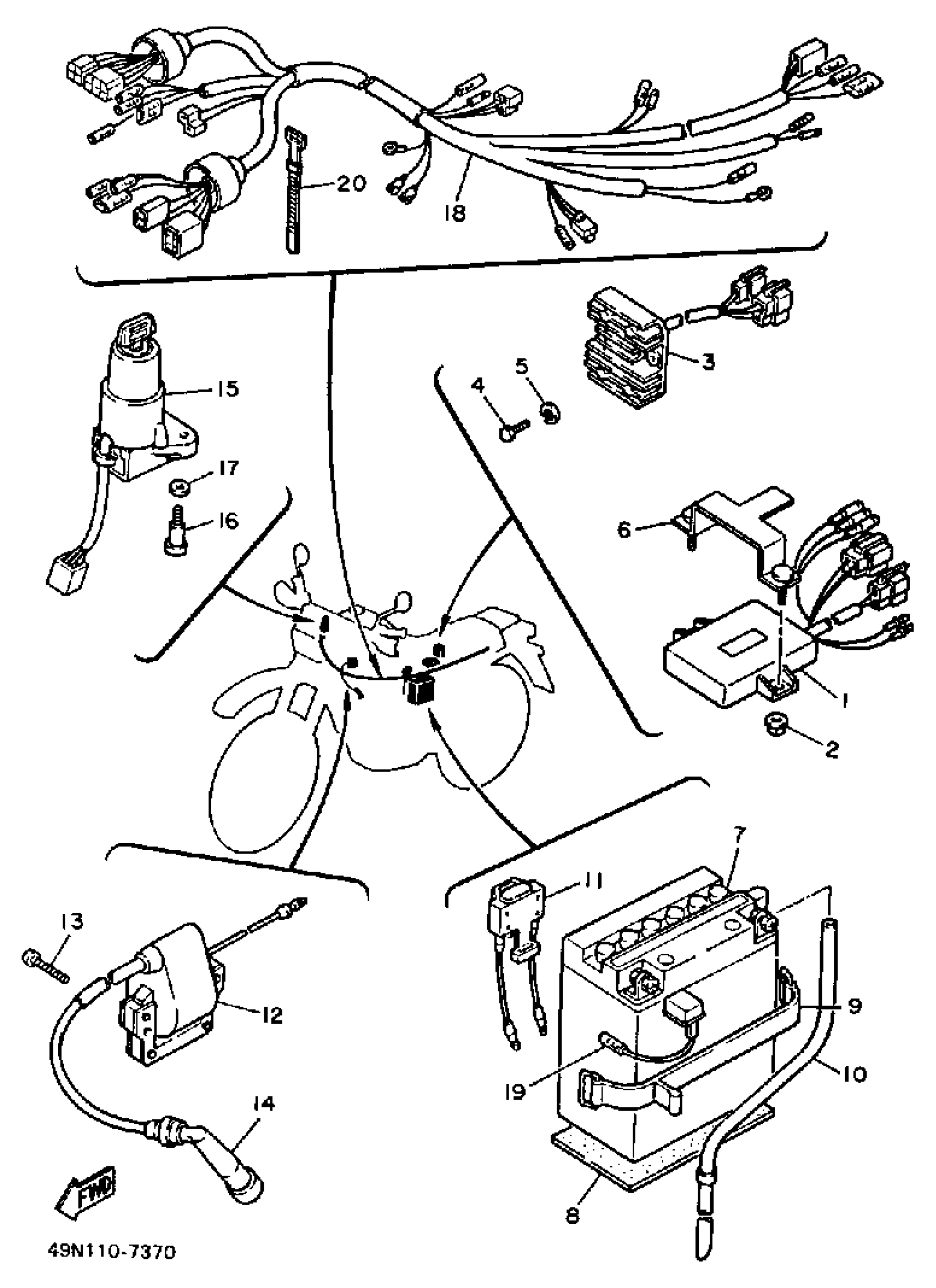

Yamaha XT600TC (XT600 CA) 1987 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

5Y1-85540-52-00

Unavailable

2

NUT, FLANGE(7NB)

95780-06500-00

$1.88

3

RECTIFIER/REG ASSEMBLY

34L-81960-A0-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

5

WASHER, SPRING

92995-06100-00

$2.83

6

STAY UNIT

34L-8553A-00-00

Unavailable

7

YB5LB YUASA BATTERY

YB5-LB000-00-00

Unavailable

8

SEAT, BATTERY

5Y1-82122-00-00

$6.22

9

BAND, BATTERY

4J2-82131-01-00

$23.01

10

HOSE

90445-08782-00

Unavailable

11

CIRCUIT BREAKER ASSEMBLY

5Y1-82180-00-00

Unavailable

12

IGNITION COIL ASSEMBLY

43F-82310-51-00

Unavailable

13

SCREW PAN HEAD

98580-06020-00

$6.08

14

PLUG CAP ASSY

4VW-82370-00-00

$59.70

15

MAIN SWITCH STEERING LOCK

5Y1-82501-80-00

Unavailable

16

SCREW(1KT)

90149-06228-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

WIRE HARNESS ASSEMBLY

49M-82590-00-00

Unavailable

19

WIRE, PLUS LEAD

1M1-82115-00-00

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable
