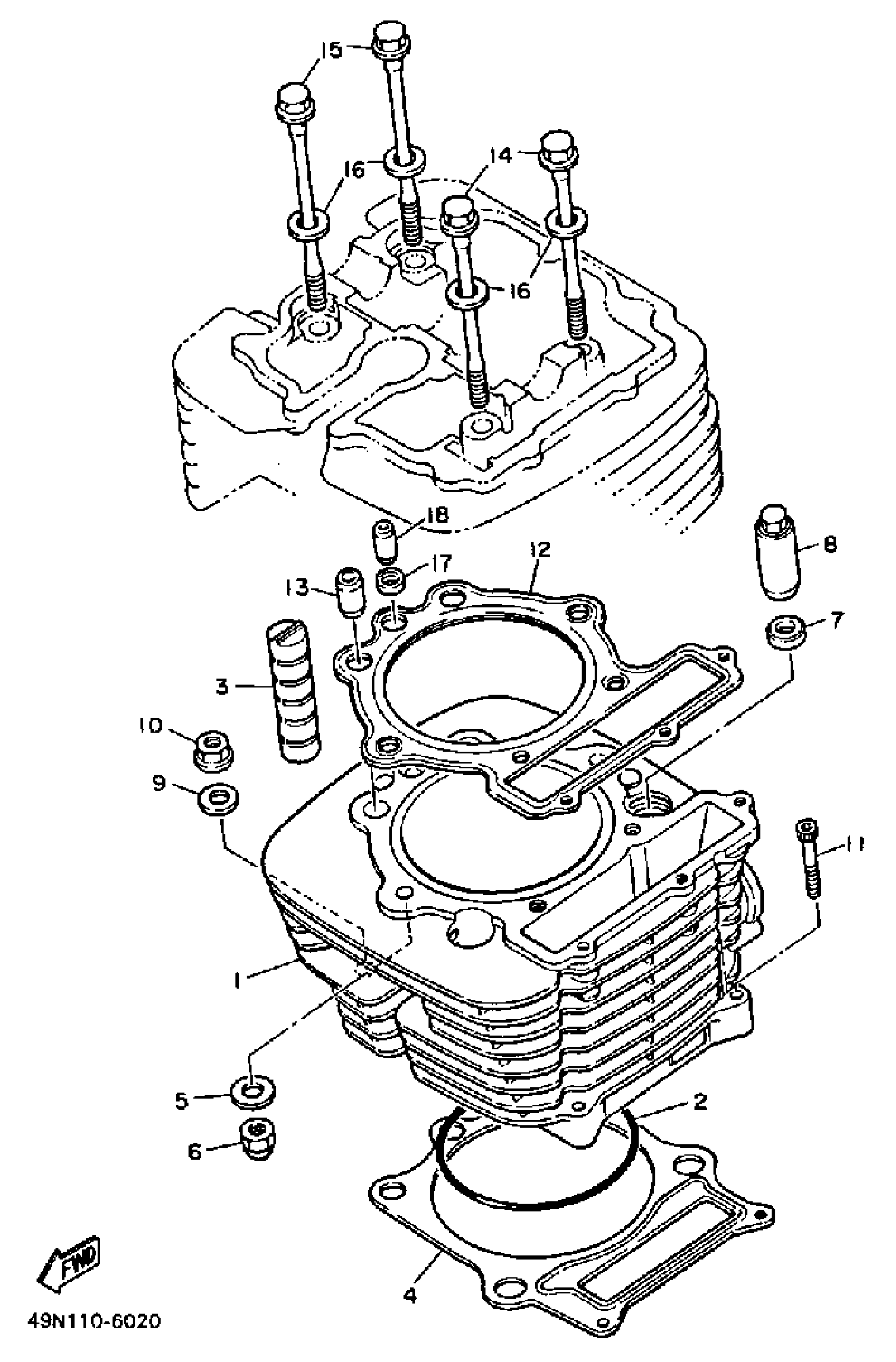

Yamaha XT600TC (XT600 CA) 1987 CYLINDER Diagram

#

Description
Price

1

CYLINDER.KIT (STUD BOLT)

99999-01824-00

Unavailable

2

O-RING (5Y1)

93210-97524-00

$14.69

3

ABSORBER

583-11127-00-00

$6.72

4

GASKET, CYLINDER

1VJ-11351-00-00

Unavailable

5

WASHER, PLATE

90201-080L8-00

$2.80

6

NUT, CROWN (4G0)

90176-08026-00

$11.63

7

WASHER, PLATE (583)

90201-10590-00

$4.93

8

NUT

90179-10021-00

$21.54

9

WASHER, PLATE 3711117500

90201-10124-00

$6.58

10

NUT (2Y5)

90179-10279-00

$6.09

11

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

12

GASKET, CYLINDER HEAD

1JK-11181-02-00

Unavailable

13

PIN, DOWEL

99530-12016-00

$4.12

14

BOLT, WASHER BASED

90105-08464-00

Unavailable

15

BOLT,WASHER BASED

90105-08465-00

Unavailable

16

WASHER, PLATE

90201-080L7-00

Unavailable

17

GASKET (5Y1)

90430-08178-00

Unavailable

18

PIN, DOWEL(3XW)

91808-16023-00

Unavailable
