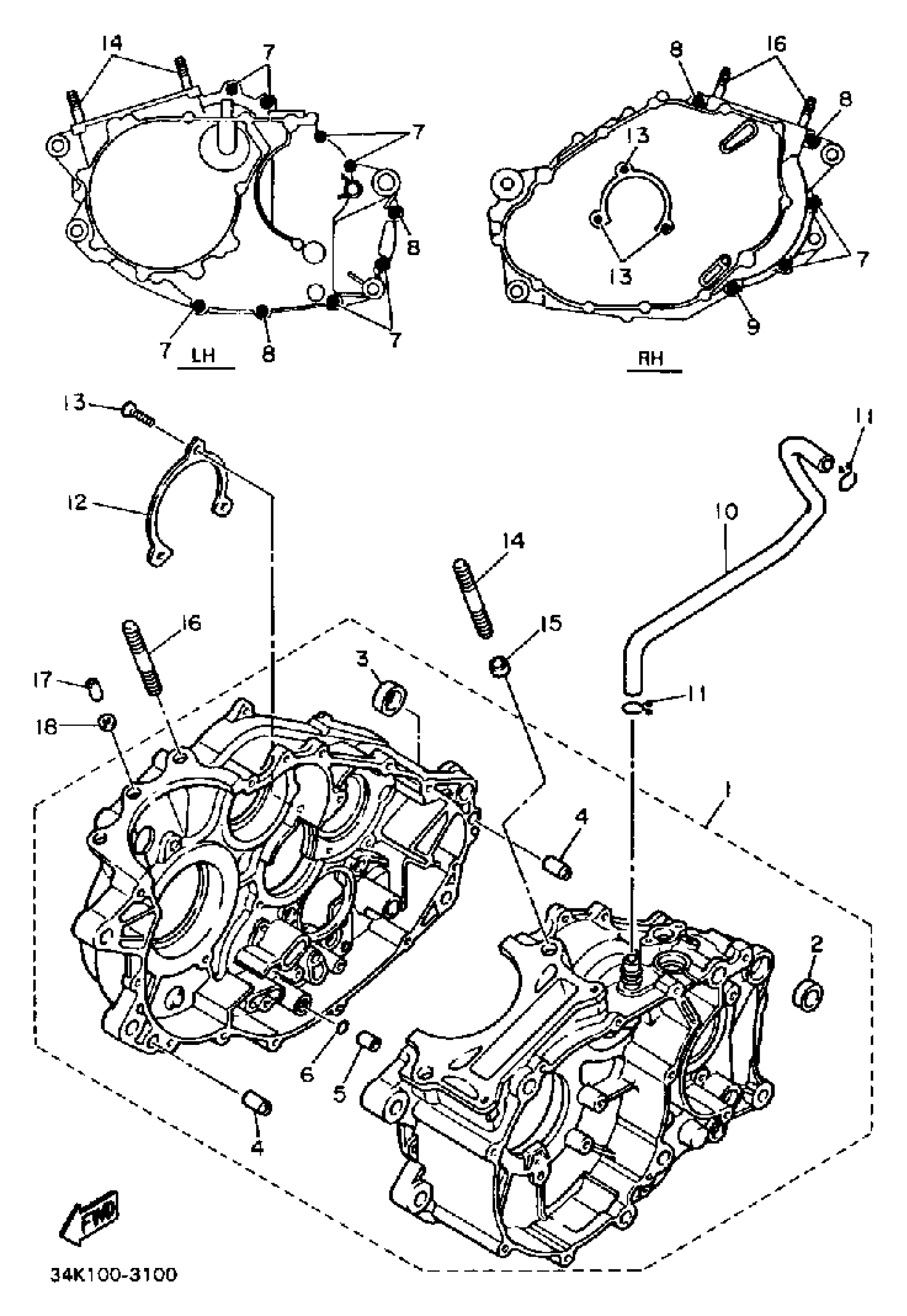

Yamaha XT600TC (XT600 CA) 1987 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

34L-15100-05-00

Unavailable

2

COLLAR

90387-17009-00

$13.78

3

COLLAR (3Y1)

90387-16782-00

$4.58

4

PIN, DOWEL

99530-12016-00

$3.93

5

PIN, DOWEL(3XW)

91808-16023-00

$5.37

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.27

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.76

8

BOLT,SOCKET

91317-06045-00

$3.20

9

BOLT,SOCKET

91317-06060-00

$3.11

10

PIPE, BREATHER 1

34L-11166-00-00

Unavailable

11

CLIP (371)

90467-14015-00

$7.18

12

PLATE, BEARING COVER

5Y1-15383-00-00

Unavailable

13

SCREW, FLAT

98707-06012-00

$5.88

14

BOLT (363-11361-00)

90116-10087-00

$15.06

15

PIN, DOWEL

99530-12016-00

$3.93

16

BOLT, STUD (1W4)

90116-10263-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$5.37

18

GASKET (5Y1)

90430-08178-00

Unavailable
