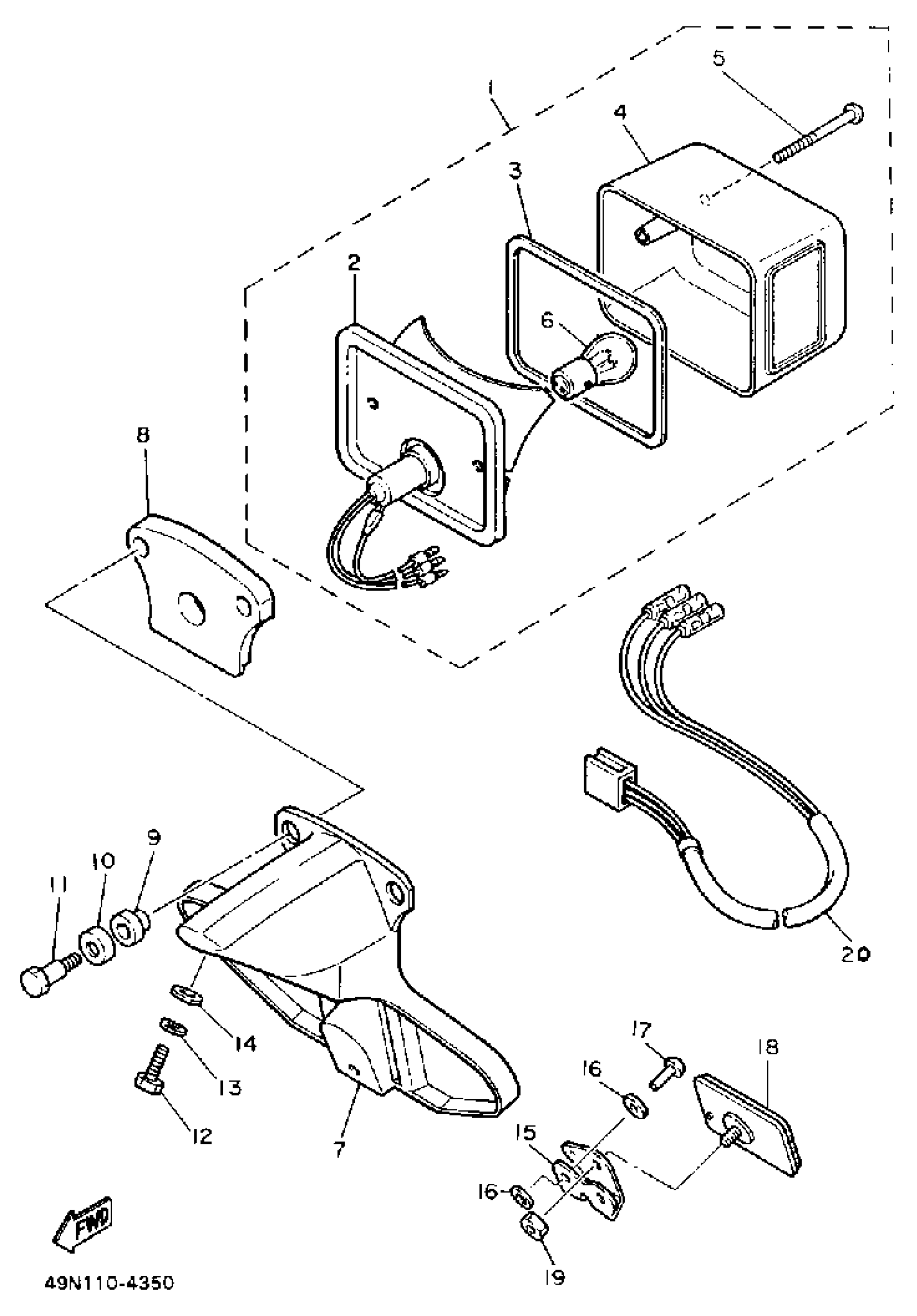

Yamaha XT600SC (XT600 CA) 1986 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$110.99

2

. BASE, TAILLIGHT

1M1-84511-60-00

Unavailable

3

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

4

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

5

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

BRACKET, LICENCE

49M-84551-00-00

Unavailable

8

SEAT, BASE

1M1-84512-60-00

Unavailable

9

DAMPER

1M1-84527-60-00

$8.99

10

WASHER, SPECIAL

2H7-84754-00-00

$10.99

11

BOLT

90109-06562-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE

90201-06049-00

Unavailable

15

BRACKET, REFLECTOR 1

33G-85132-02-00

Unavailable

16

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

17

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

18

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

19

NUT, HEXAGON (663)

95380-05600-00

Unavailable

20

CORD, TAILLIGHT

5Y1-84717-00-00

Unavailable
