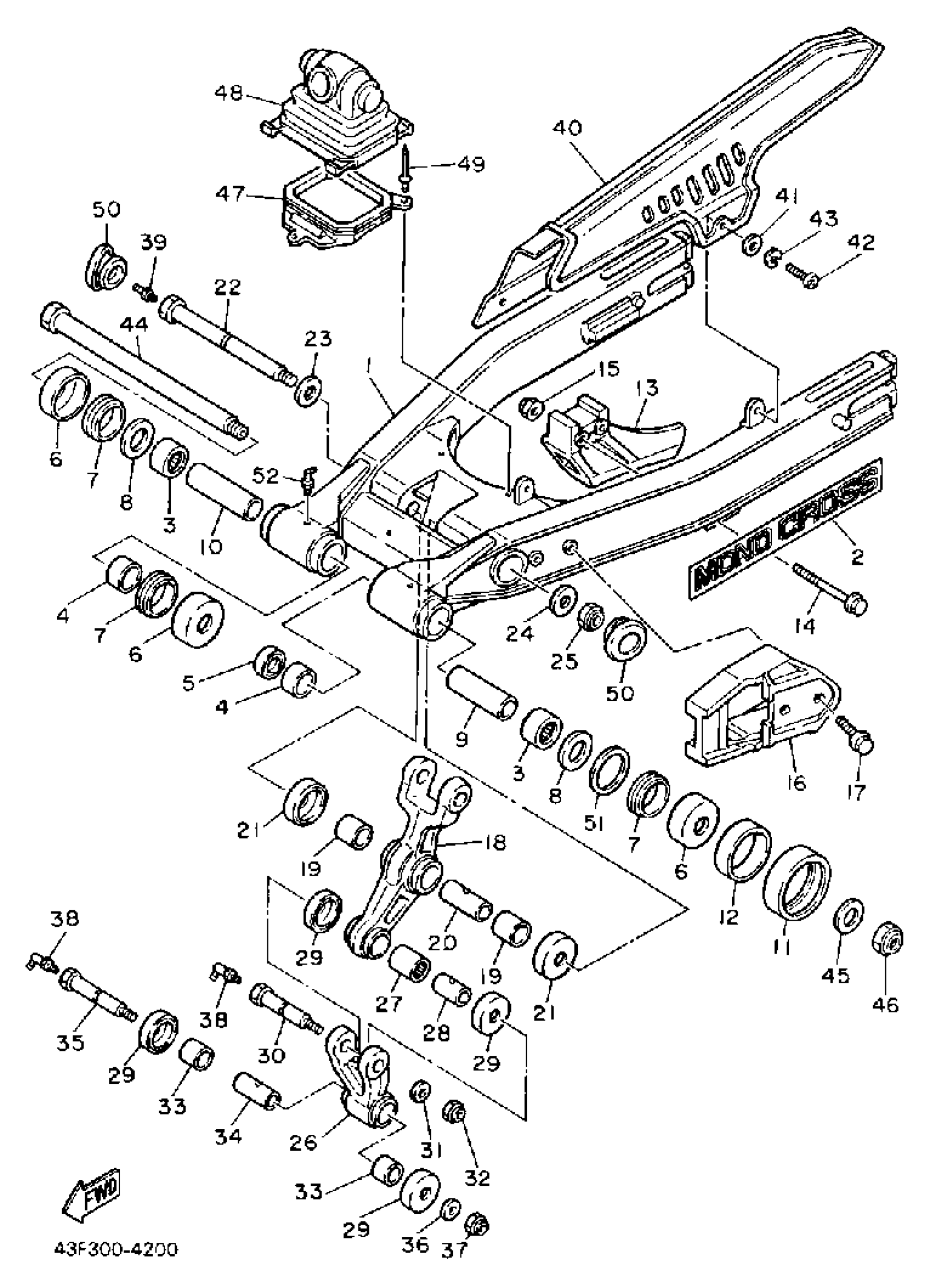

Yamaha XT600SC (XT600 CA) 1986 SWING ARM Diagram

#

Description
Price

1

REAR ARM

(43F-22110-01-00)

Unavailable

2

EMBLEM,REAR ARM

3SW-2218A-01-00

Unavailable

3

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

4

BUSH, SOLID (23X)

90380-22111-00

$19.99

5

OIL SEAL (23X)

93106-22019-00

$11.49

6

COVER, THRUST

2K6-22128-01-00

$31.99

7

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

8

WASHER

3YF-22149-00-00

$8.99

9

BUSH, SOLID

90380-16126-00

Unavailable

10

BUSH 2

34L-22124-00-00

Unavailable

11

SEAL, GUARD

5X6-22151-10-00

$40.99

12

COLLAR (5X6)

90387-440G3-00

$21.99

13

GUARD, CHAIN

34L-22153-00-00

Unavailable

14

BOLT, FLANGE

95817-06050-00

$4.24

15

NUT, FLANGE(7NB)

95780-06500-00

$2.60

16

PROTECTOR, CHAIN

34L-22147-00-00

Unavailable

17

BOLT, WITH WASHER

(90119-06101-00)

Unavailable

18

ARM, RELAY

34L-2217A-00-00

Unavailable

19

BUSH (30X)

90386-20120-00

Unavailable

20

BUSH, SOLID

90380-14095-00

Unavailable

21

COVER, THRUST 1

34L-22128-00-00

Unavailable

22

BOLT

(90109-120A3-00)

Unavailable

23

WASHER, PLATE (90201-14707)

90201-140G9-00

Unavailable

24

WASHER, PLATE (8K2)

90201-120A5-00

Unavailable

25

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

26

ROD, CONNECTING 1

34L-2217F-00-00

Unavailable

27

BEARING, CYLINDRICAL (23X)

93315-31732-00

Unavailable

28

COLLAR (23X)

90387-121H1-00

Unavailable

29

COVER, THRUST 2

55K-22129-00-00

Unavailable

30

BOLT

90109-10759-00

Unavailable

31

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

32

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

33

BUSH (34L)

90386-20123-00

Unavailable

34

COLLAR (34L)

90387-122J6-00

Unavailable

35

BOLT(2VG)

90109-102G8-00

Unavailable

36

WASHER (7A9)

90201-100F7-00

Unavailable

37

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

38

NIPPLE, GREASE

93700-06005-00

Unavailable

39

NIPPLE, GREASE

93700-06M03-00

Unavailable

40

CASE, CHAIN

3TB-22311-00-00

Unavailable

41

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

42

SCREW, PAN

98517-06012-00

Unavailable

43

WASHER, SPRING

92907-06100-00

Unavailable

44

SHAFT, PIVOT

34K-22141-01-00

Unavailable

45

WASHER (525)

90201-15238-00

Unavailable

46

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

47

SUPPORT, BOOT

34L-2216G-00-00

Unavailable

48

BOOT, RUBBER

34L-22189-00-00

Unavailable

49

RIVET, BLIND (2YK)

90267-32146-00

Unavailable

50

CAP

34L-22117-00-00

Unavailable

51

WASHER, PLATE (5Y1)

90201-251F6-00

Unavailable

52

NIPPLE, GREASE

93700-06005-00

Unavailable
