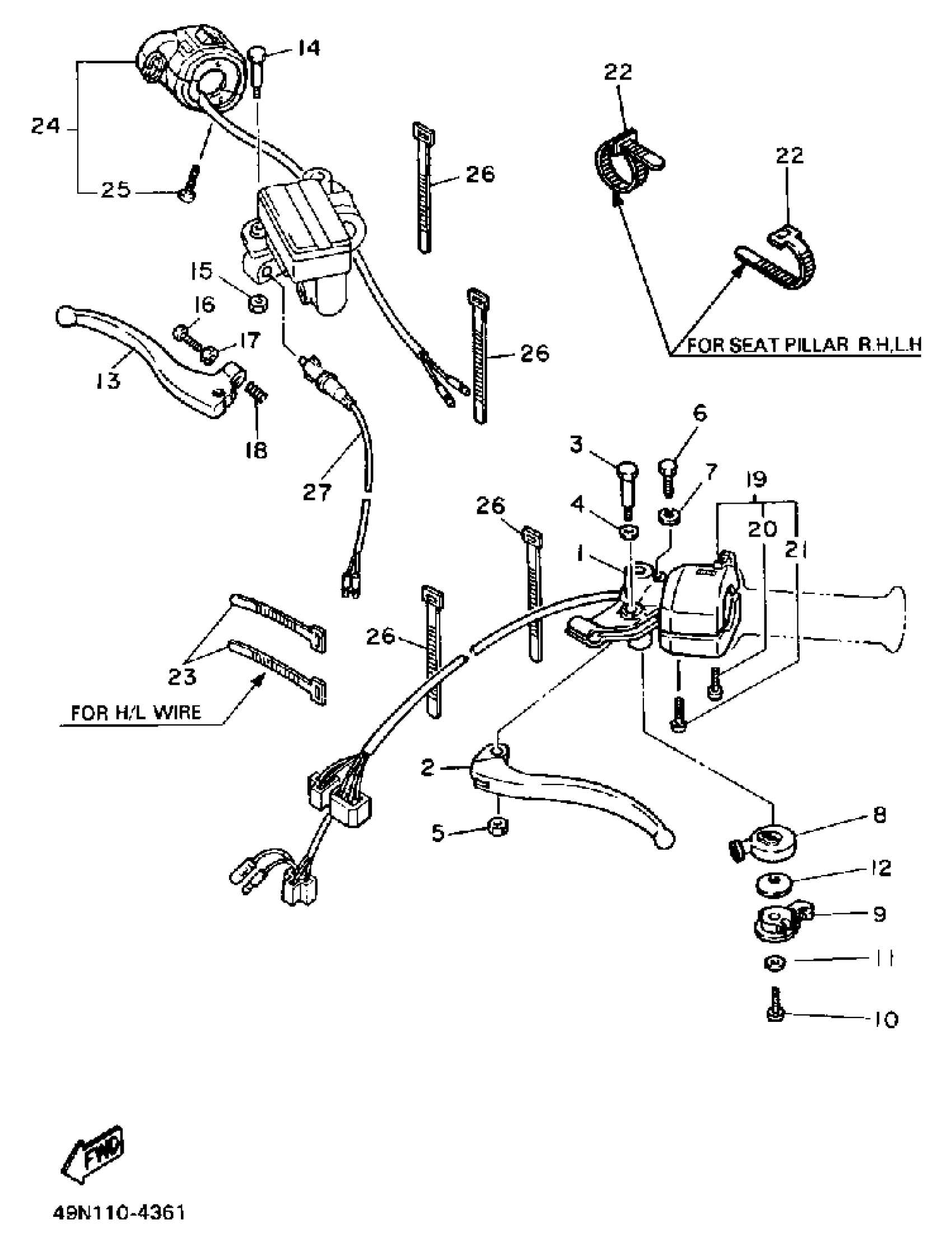

Yamaha XT600SC (XT600 CA) 1986 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER, LEVER

5Y1-82911-01-00

Unavailable

2

LEVER 1

3FY-83912-02-00

$28.99

3

BOLT(3GB)

90109-061F3-00

$7.49

4

WASHER, PLATE 1562722600

90201-08083-00

$9.49

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

BOLT, HEXAGON

97007-06022-00

Unavailable

7

WASHER, SPRING

92907-06100-00

$4.25

8

COVER, STARTER

5Y1-83942-00-00

Unavailable

9

LEVER, STARTER

5Y1-83941-00-00

Unavailable

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

WASHER(6TA)

92907-06200-00

$8.49

12

WASHER (357)

90209-10131-00

$9.49

13

LEVER R

3FY-83922-01-00

$31.99

14

BOLT (4L0)

90109-06577-00

$5.60

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

SCREW (2L0)

90149-06131-00

Unavailable

17

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

18

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

19

SWITCH, HANDLE 3

21T-83973-01-00

Unavailable

20

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

21

SCREW, PAN HEAD

98517-05030-00

Unavailable

22

BAND, SWITCH CORD

437-83936-11-00

Unavailable

23

BAND, SWITCH CORD

437-83936-01-00

Unavailable

24

SWITCH, HANDLE 1

43F-83976-00-00

Unavailable

25

SCREW, PAN HEAD

98517-05020-00

Unavailable

26

BAND, SWITCH CORD

437-83936-01-00

Unavailable

27

FRONT STOP SWITCH ASSY

3YF-83980-00-00

Unavailable
