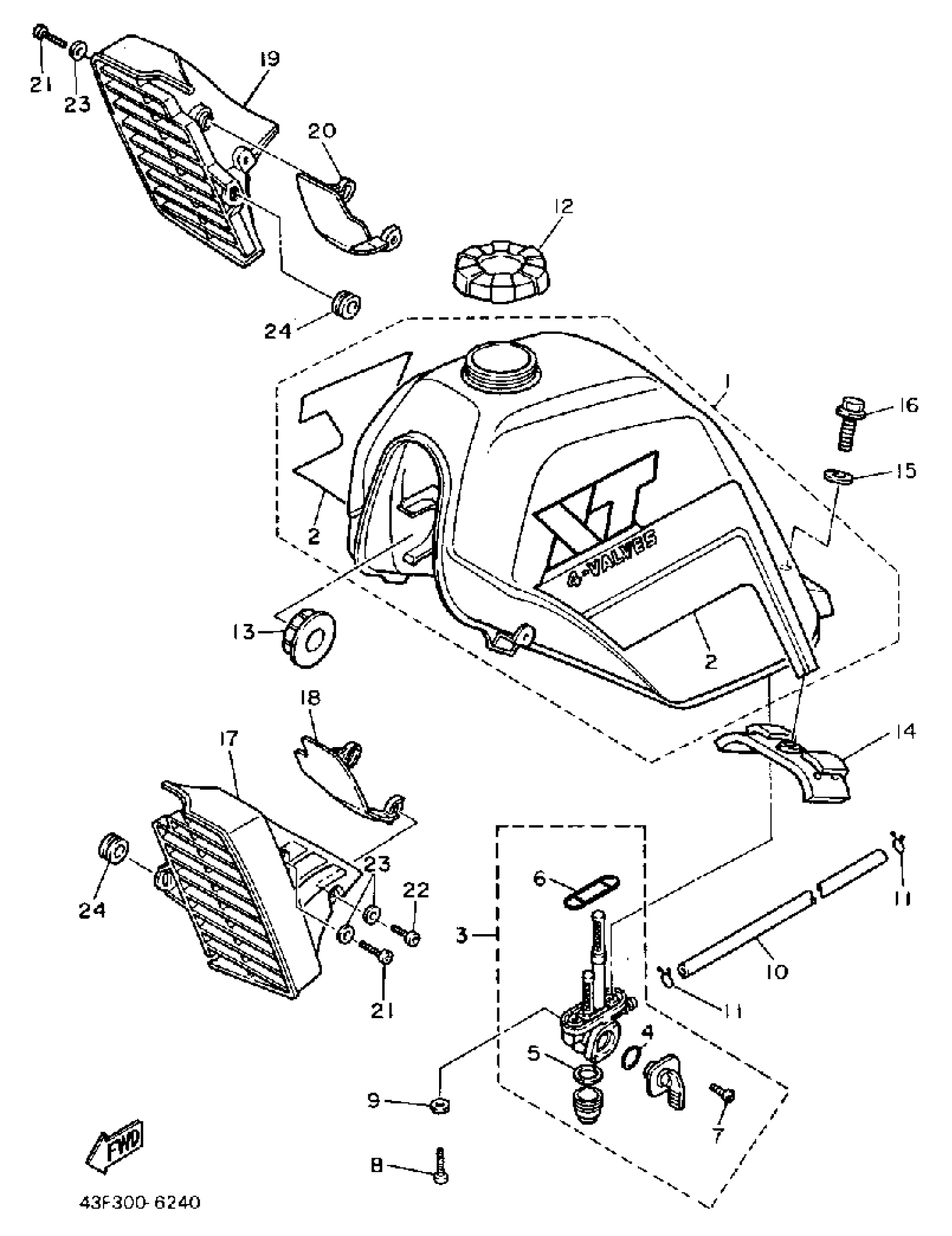

Yamaha XT600SC (XT600 CA) 1986 FUEL TANK XT600S Diagram

#

Description
Price

1

FUEL TANK

43F-24110-G0-04

Unavailable

2

. GRAPHIC SET

43F-24240-20-00

Unavailable

3

FUEL COCK ASSY 1

3FY-24500-01-00

$57.99

4

O-RING

4X8-24534-00-00

$13.49

5

GASKET

4X8-24565-10-00

$6.99

6

O-RING

4X8-24512-00-00

$8.99

7

SCREW

4X8-24535-00-00

$3.90

8

SCREW 256241430000

90149-06011-00

$5.60

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

HOSE (L200)

90445-10752-00

$4.99

11

CLIP

90467-090A2-00

$4.41

12

CAP ASSEMBLY

34L-24610-02-00

Unavailable

13

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

14

DAMPER, LOCATING 2

43F-24182-00-00

Unavailable

15

WASHER, SPEC''L SHAP

90209-07256-00

Unavailable

16

BOLT(3JP)

97017-06010-00

Unavailable

17

SCOOP, AIR 1

43F-2137W-10-00

Unavailable

18

GUIDE, AIR 1

43F-2137U-00-00

Unavailable

19

SCOOP, AIR 2

43F-2137X-10-00

Unavailable

20

GUIDE, AIR 2

43F-2137V-00-00

Unavailable

21

SCREW,SPEC'L SHAPE

90149-06315-00

Unavailable

22

SCREW, SPEC''L SHAPE

90149-06200-00

Unavailable

23

WASHER, PLATE

90201-06380-00

Unavailable

24

GROMMET (1U6)

90480-08216-00

Unavailable
