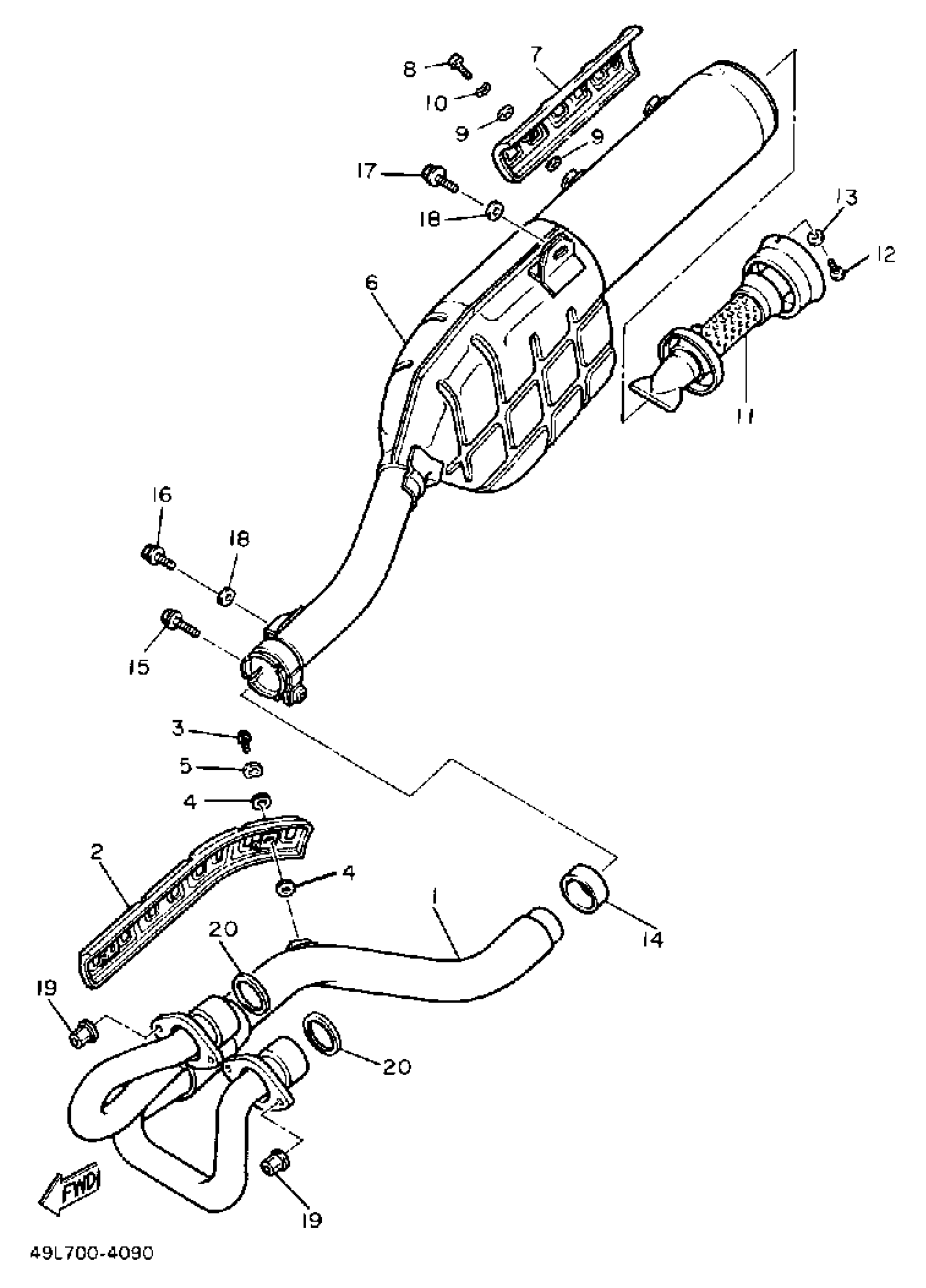

Yamaha XT600SC (XT600 CA) 1986 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

34K-14611-01-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

Unavailable

3

SCREW, TAPPING (30X)

90164-06017-00

$8.49

4

WASHER, PROTECTOR

30X-14766-00-00

Unavailable

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

MUFFLER L

49R-14711-01-00

Unavailable

7

PROTECTOR, MUFFLER

54G-14728-00-00

Unavailable

8

SCREW, BINDING

98907-06010-00

$1.65

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

WASHER, WAVE(3RW)

90206-06090-00

$8.49

11

PIPE, OUTLET

34K-14752-00-00

Unavailable

12

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

GASKET, SILENCER

3YF-14755-00-00

$34.99

15

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

16

BOLT, FLANGE

95817-08012-00

Unavailable

17

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

18

WASHER (853)

90201-08326-00

Unavailable

19

NUT (1AE)

90179-06500-00

Unavailable

20

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
