Description

Price

1

CDI UNIT ASSEMBLY

5Y1-85540-52-00

Unavailable

2

NUT, FLANGE(7NB)

95780-06500-00

$2.60

3

RECTIFIER/REG ASSEMBLY

34L-81960-A0-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

STAY UNIT

34L-8553A-00-00

Unavailable

7

YB5LB YUASA BATTERY

YB5-LB000-00-00

Unavailable

8

SEAT, BATTERY

5Y1-82122-00-00

$7.99

9

BAND, BATTERY

4J2-82131-01-00

$29.99

10

HOSE

90445-08782-00

Unavailable

11

CIRCUIT BREAKER ASSEMBLY

5Y1-82180-00-00

Unavailable

12

IGNITION COIL ASSEMBLY

43F-82310-51-00

Unavailable

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

PLUG CAP ASSY

4VW-82370-00-00

$69.99

15

MAIN SWITCH STEERING LOCK

5Y1-82501-80-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

WIRE HARNESS ASSEMBLY

49M-82590-00-00

Unavailable

19

WIRE, PLUS LEAD

1M1-82115-00-00

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

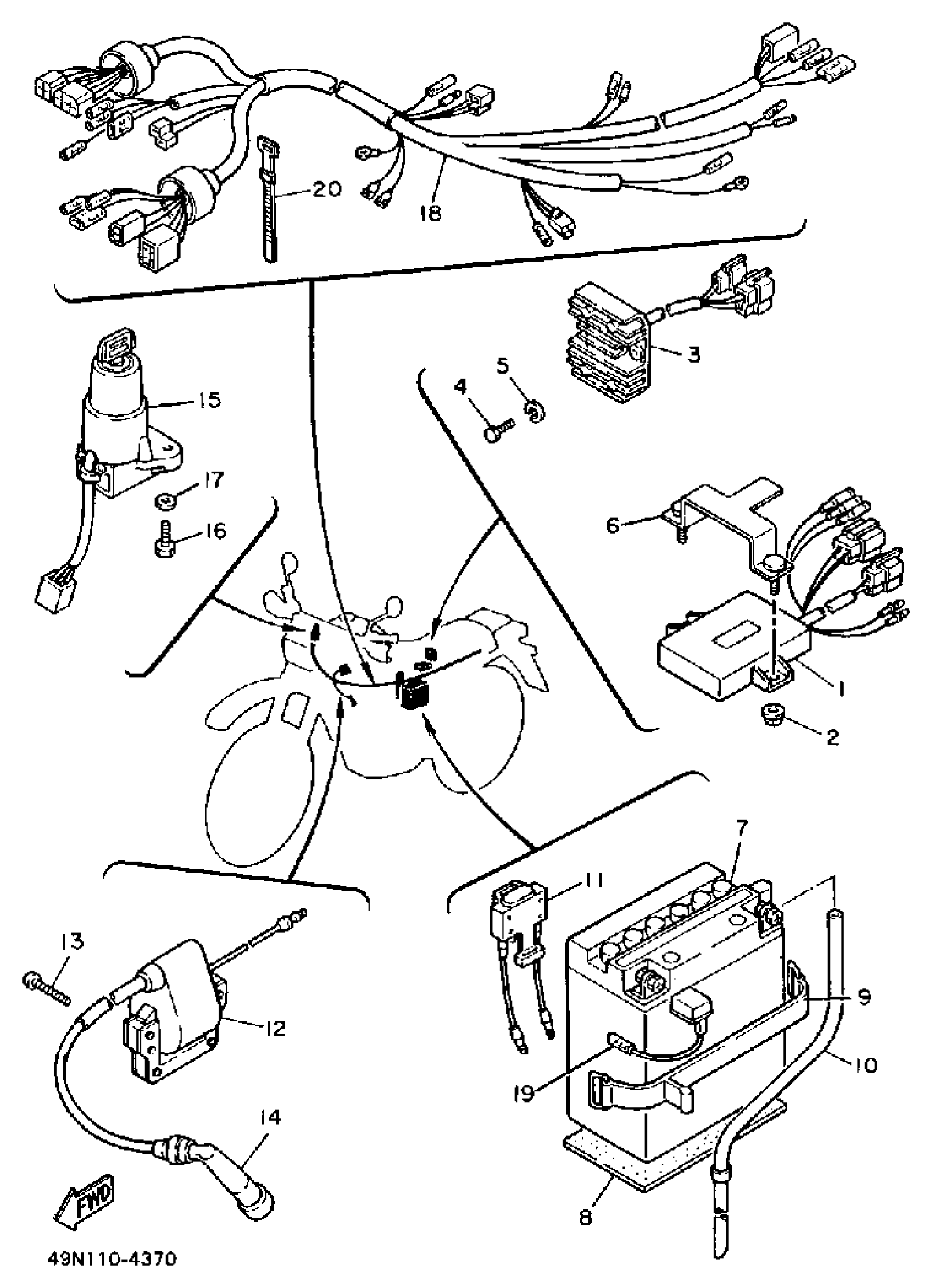

Yamaha XT600SC (XT600 CA) 1986 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

NUT, FLANGE(7NB)

RECTIFIER/REG ASSEMBLY

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

STAY UNIT

YB5LB YUASA BATTERY

SEAT, BATTERY

BAND, BATTERY

HOSE

CIRCUIT BREAKER ASSEMBLY

IGNITION COIL ASSEMBLY

SCREW PAN HEAD

PLUG CAP ASSY

MAIN SWITCH STEERING LOCK

BOLT, HEXAGON DEEP RECESS

WASHER, PLAIN (646)

WIRE HARNESS ASSEMBLY

WIRE, PLUS LEAD

BAND, SWITCH CORD
