- XT600SC (XT600 CA) 1986
CARBURETOR

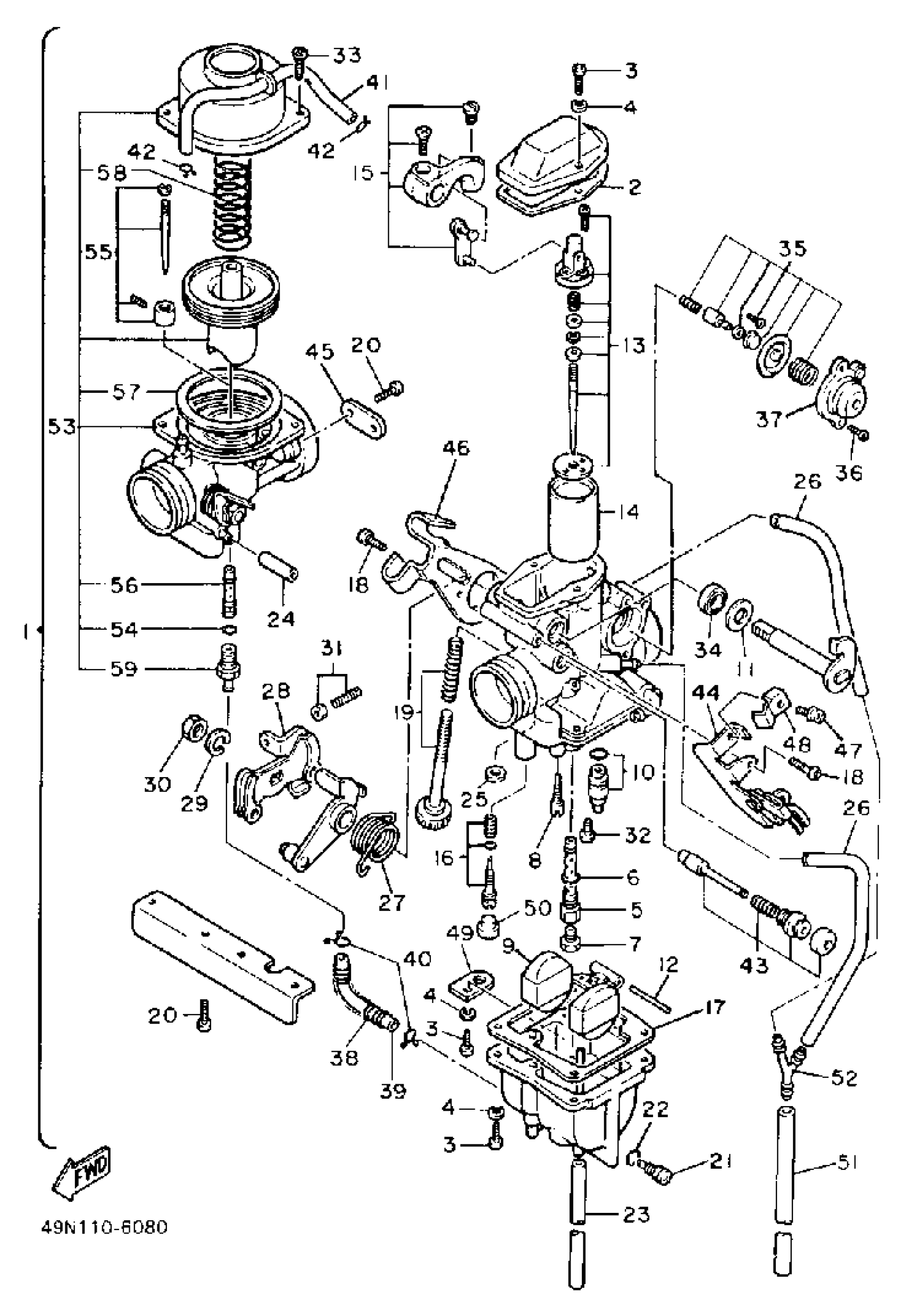

1986 Yamaha XT600 CA (XT600SC) Carburetor Diagram
Find the part on the Carburetor diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY
1WN-14301-01-00
1
CARBURETOR ASSEMBLY 1
49N-14301-01-00
5
. NOZZLE, MAIN
43F-14341-00-00
8
JET, PILOT (#46)
43F-14342-23-00
9
. UNAVAILABLE IN PRICE BOOK
5Y1-14387-50-00
10
NEEDLE VALVE SET
1JK-14107-01-00
11
. WASHER, PLAIN
5Y1-14357-00-00
13
. NEEDLE SET
34K-1490J-10-00
14
. VALVE, THROTTLE 1
5Y1-14312-55-00
15
. CABLE CONNECT SET
5Y1-14203-00-00
16
PILOT SCREW SET
50M-14105-00-00
19
. THROTTLE SCREW SET
34K-14103-00-00
22
O-RING
5Y1-14397-00-00
23
PIPE
1WN-14396-00-00
24
PIPE
5Y1-14349-00-00
27
. SPRING, THRTL VALVE
5Y1-14131-00-00
28
. THROTTLE LVR COMP
34K-14305-00-00
29
. WASHER, SPRING
5Y1-14356-00-00
30
. NUT
5Y1-14358-00-00
31
. STOP SCREW SET
34K-1490K-00-00
37
. COVER 1
5Y1-14293-01-00
38
. SPRING
5Y1-14556-00-00
39
. PIPE
5Y1-14148-00-00
40
. CLIP
5Y1-14137-00-00
41
PIPE
5Y1-14149-00-00
43
. STARTER SET
5Y1-1410A-00-00
44
. LEVER, STARTER
34L-14905-00-00
45
PLATE
(34K-14146-00-00)
46
BRACKET, THROTTLE
(34K-14571-00-00)
47
SCREW
677-24444-09-00
48
. STOPPER
5Y1-14377-00-00
50
. CAP
5Y1-14118-00-00
51
PIPE
56R-14196-00-00
53
. CARB ASSEMBLY 2
49N-14320-00-00
55
.. NEEDLE SET
43F-1490J-01-00
56
. NOZZLE, MAIN
5Y1-14355-00-00
57
GASKET
5Y1-14398-00-00
58
. SPRING
5Y1-14286-00-00
59
. JET, MAIN 125
5Y1-14343-63-00
59
.. JET, MAIN (130)
5Y1-14343-65-00
