1986 Yamaha XT600 CA (XT600SC) AIR Cleaner Diagram

← All diagrams

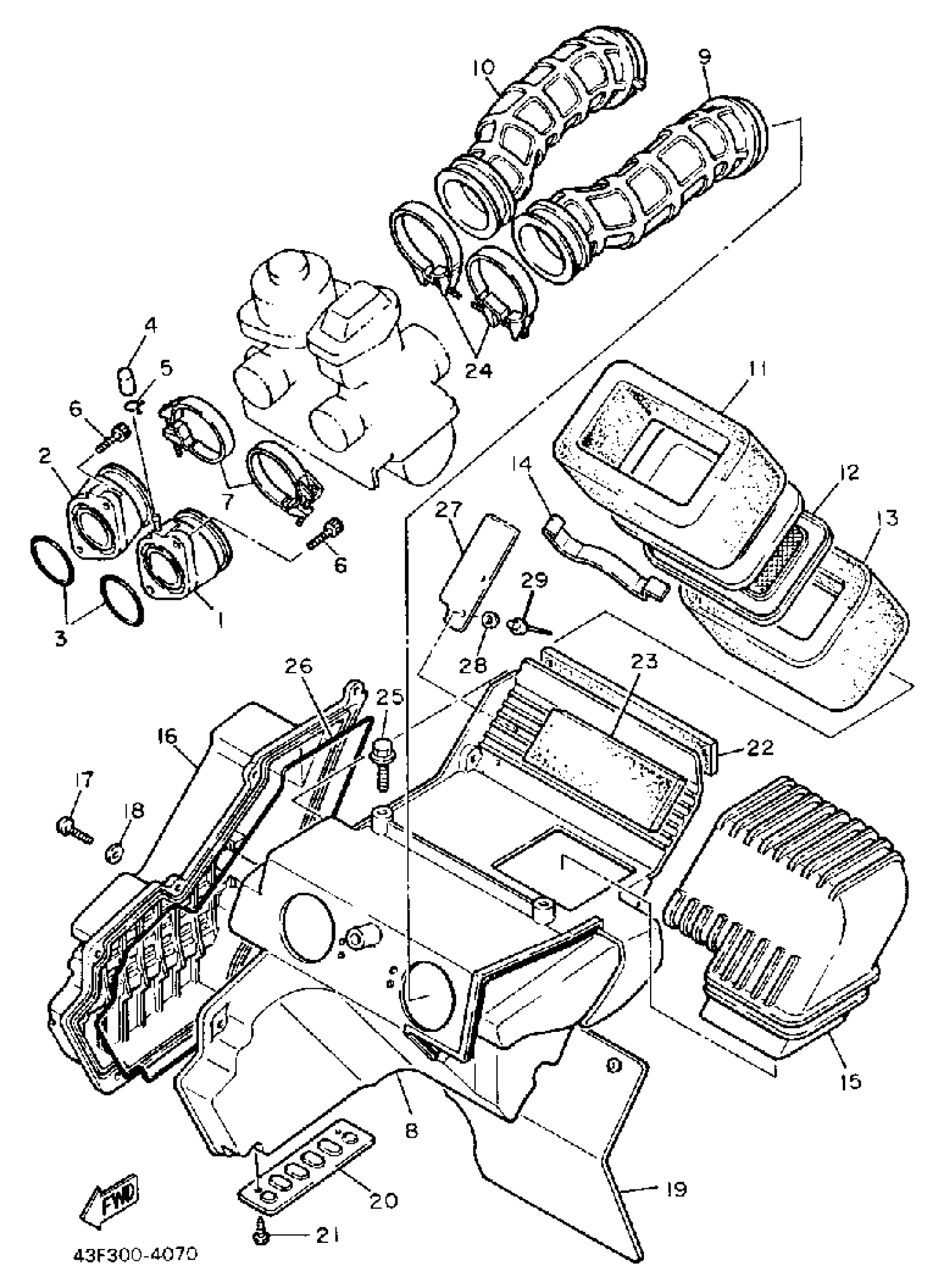

Find the part on the AIR Cleaner diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha XT600 CA (XT600SC) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

43F-13586-01-00

—

$106.94

In stock

2

JOINT, CARBURETOR 2

43F-13596-01-00

—
Out of stock

3

O-RING(2TY)

93210-36769-00

1
Out of stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

CLIP (3G0)

90467-10039-00

1
Out of stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

HOSE CLAMP ASSY

90450-47002-00

1

$7.15

In stock

8

AIR CLNR CASE ASSEMBLY

43F-14401-00-00

1
Out of stock

9

JOINT, AIR CLNR 1

43F-14453-00-00

1
Out of stock

10

JOINT

43F-14454-00-00

1
Out of stock

11

ELEMENT, AIR CLEANER

34L-14451-01-00

1
Out of stock

12

GUIDE, ELEMENT

34L-14458-00-00

1
Out of stock

13

ELEMENT,AIR CLNR 2

34L-14461-01-00

—
Out of stock

14

PLATE, ELEMENT FTNG

2J2-14468-00-00

1
Out of stock

15

DUCT

34L-14437-01-00

1
Out of stock

16

CAP, CLEANER CASE 1

43F-14412-00-00

1
Out of stock

17

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

18

WASHER(1RW)

92907-05600-00

—
Out of stock

19

FLAP

34L-21621-00-00

1
Out of stock

20

PROTECTOR

34L-1442F-00-00

1
Out of stock

21

SCREW, TAPPING

(97706-40506-00)

1
Out of stock

22

DAMPER 2

(34L-14426-00-00)

1
Out of stock

23

DAMPER, ENGINE MOUNT 2

3WF-15326-00-00

1
Out of stock

24

CLAMP HOSE 304144550000

90460-51059-00

—

$14.64

In stock

25

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

26

SEAL

51Y-14462-00-00

—

$11.61

In stock

27

SEAL

43F-14467-00-00

1
Out of stock

28

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

29

RIVET, BLIND

90267-40029-00

—

$6.68

In stock
