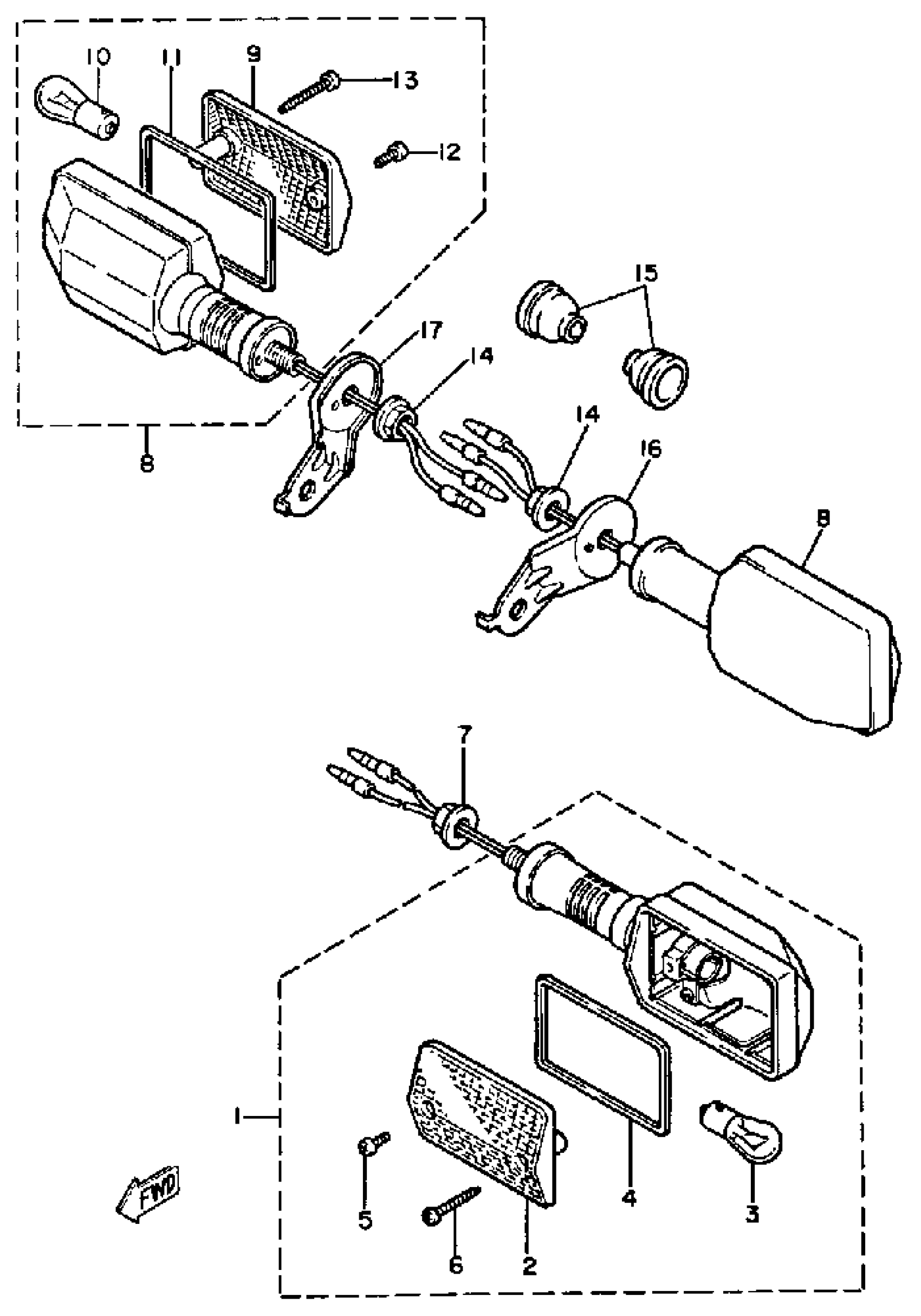

Yamaha XT600LC (XT600 CA) 1984 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSEMBLY 1

5Y1-83310-70-00

Unavailable

2

LENS FLASHER

5Y1-83312-00-00

$13.49

3

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

4

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

5

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

6

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

7

NUT(3GG)

90179-12588-00

$7.49

8

REAR FLASHER LIGHT ASSY 1

37A-83330-21-00

$121.99

9

LENS FLASHER

5Y1-83312-00-00

$13.49

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

12

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

13

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

14

NUT(3GG)

90179-12588-00

$7.49

15

CAP

10V-83365-01-00

$3.33

16

STAY, FLASHER

15A-83368-00-00

Unavailable

17

STAY, FLASHER

15A-83369-00-00

Unavailable
