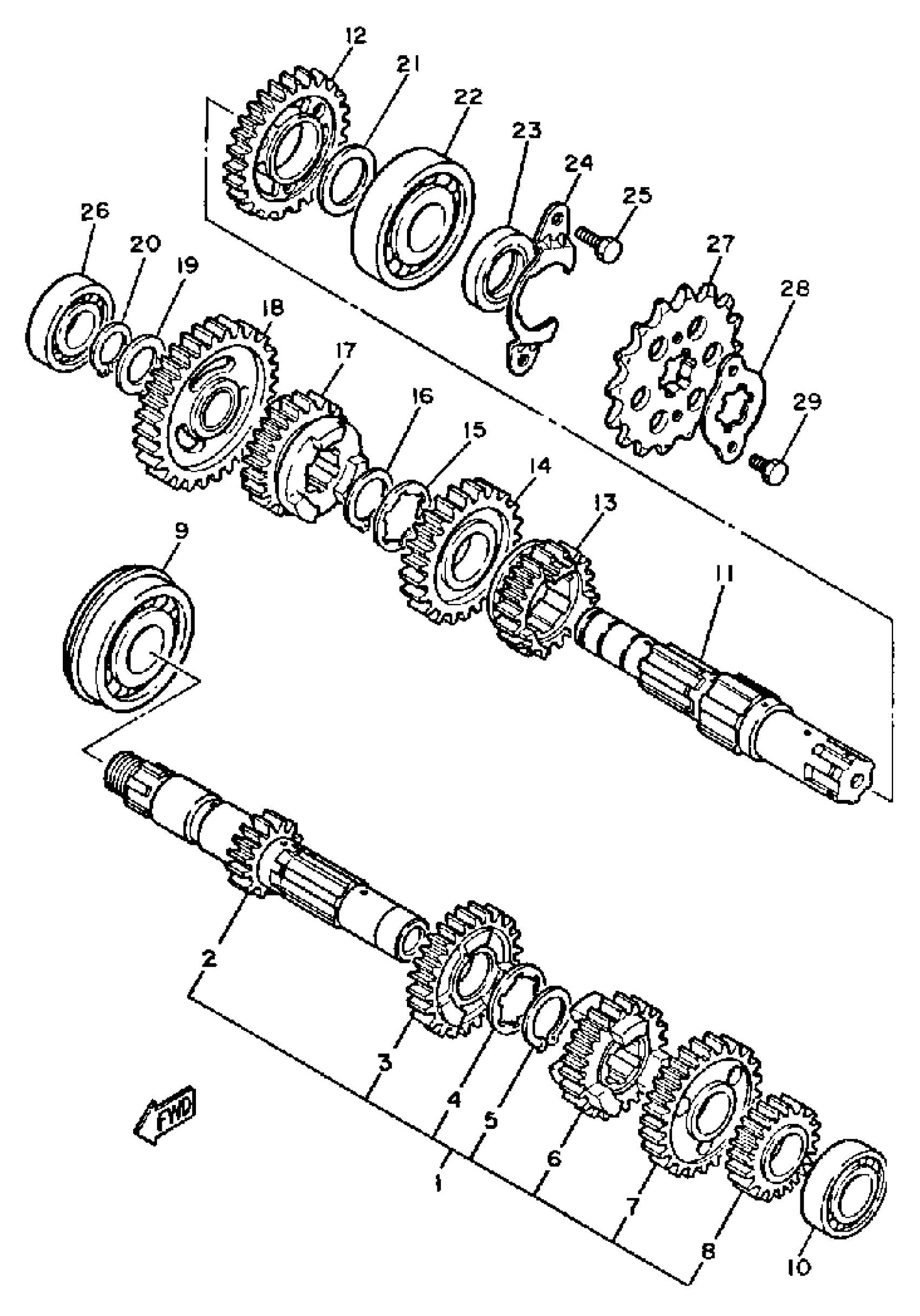

Yamaha XT600LC (XT600 CA) 1984 TRANSMISSION Diagram

MAIN AXLE

43F-17410-00-00

Unavailable

. AXLE, MAIN

34L-17411-00-00

Unavailable

GEAR, 4TH PINION

34K-17141-00-00

$76.99

WASHER (3J3)

90209-22191-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

. GEAR, 3RD PINION (20T)

5Y1-17131-00-00

Unavailable

. GEAR, 5TH PINION

5Y1-17151-01-00

Unavailable

GEAR, 2ND PINION

34K-17121-01-00

$35.99

BEARING (3R5)

93306-20540-00

$57.99

BEARING (34L)

93306-00431-00

$41.99

DRIVE AXLE ASSY

34K-17402-01-00

Unavailable

GEAR, 2ND WHEEL

5Y1-17221-01-00

Unavailable

GEAR, 5TH WHEEL

2JT-17251-10-00

Unavailable

GEAR,3RD WHEEL

99999-02267-00

Unavailable

UNAVAILABLE IN PRICE BOOK (24T) (55U-17231-00) (N/N)

IVJ-17231-00-00

Unavailable

WASHER (3J3)

90209-22191-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR,4TH WHEEL

55U-17241-00-00

Unavailable

GEAR,1ST WHEEL

99999-02306-00

Unavailable

WASHER PLATE 328171160000

90201-20276-00

Unavailable

CIRCLIP(1AR)

99009-20400-00

Unavailable

BEARING (5Y1)

93306-30535-00

Unavailable

BEARING (5Y1)

93306-30535-00

Unavailable

OIL SEAL (3Y1)

93102-25226-00

Unavailable

PLATE, COVER

5Y1-17471-00-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

BEARING (5Y1)

93306-00426-00

Unavailable

SPROCKET, DRIVE (5Y1-17461-50)

93834-15080-00

Unavailable

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable
