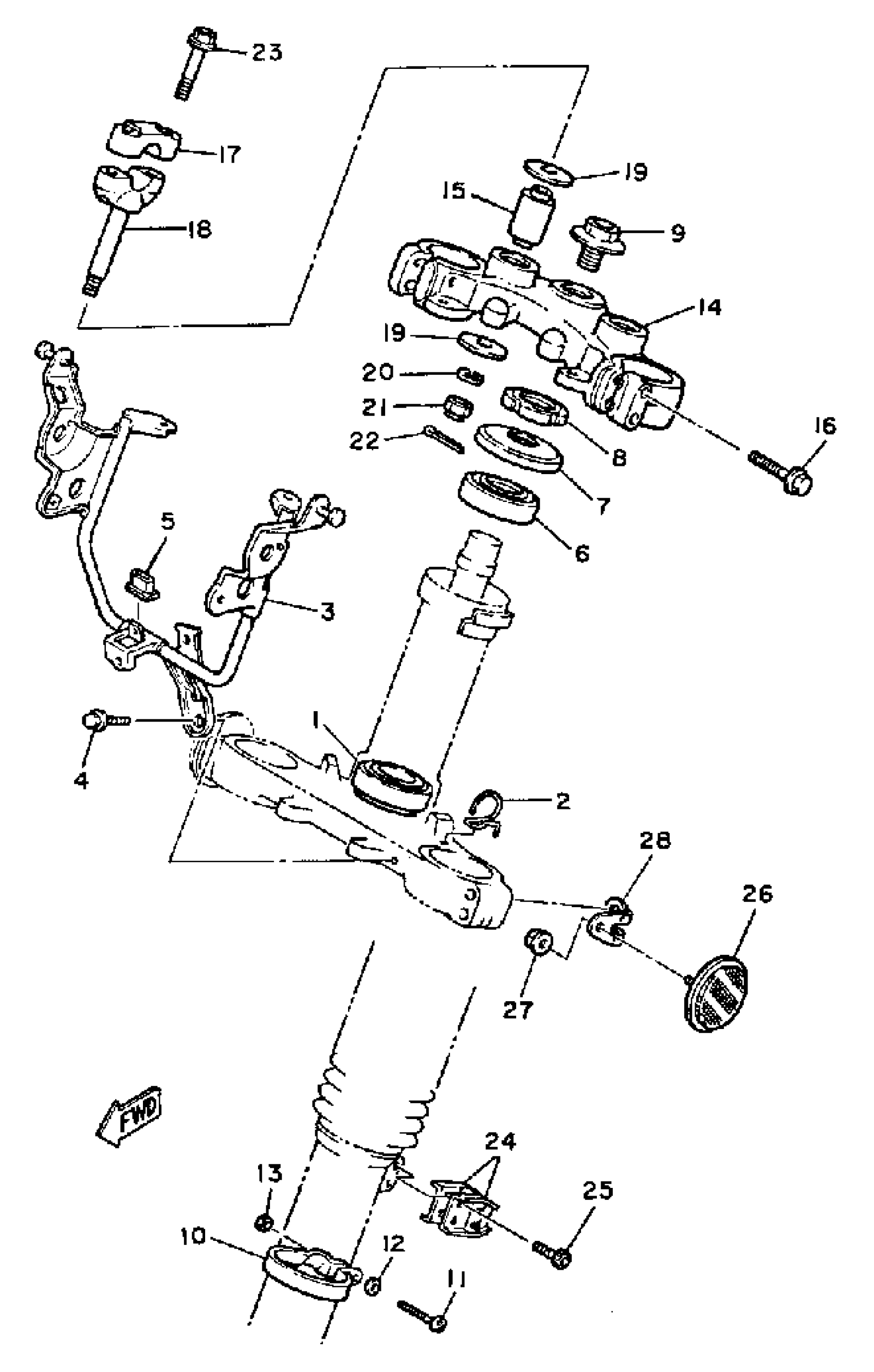

Yamaha XT600LC (XT600 CA) 1984 STEERING Diagram

#

Description
Price

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

2

GUIDE, CABLE

36X-2331E-00-00

Unavailable

3

STAY, HEADLIGHT

2JX-23174-00-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.43

5

DAMPER

30X-23445-00-00

$9.99

6

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

7

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

8

NUT

90179-25004-00

$24.99

9

BOLT (2A2)

90105-14102-00

$5.60

10

HOLDER, CABLE 1

34L-23318-01-00

Unavailable

11

SCREW, PAN HEAD

98580-05020-00

Unavailable

12

WASHER, PLAIN (646)

92990-05600-00

$0.80

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

CROWN, HANDLE

34L-23435-00-98

Unavailable

15

HOLDER, DAMPER

3Y6-23434-01-00

$28.99

16

BOLT, FLANGE

95817-08040-00

Unavailable

17

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

18

HOLDER, HANDLE LOWER

3Y6-23442-00-98

Unavailable

19

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

CLIP 136253750000

90468-12006-00

Unavailable

23

BOLT, FLANGE

95817-08035-00

Unavailable

24

CLAMP (39E)

90465-14242-00

Unavailable

25

BOLT,SOCKET

91317-06012-00

Unavailable

26

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

27

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

28

BRACKET, REFLECTOR 1

49R-85112-00-00

Unavailable
