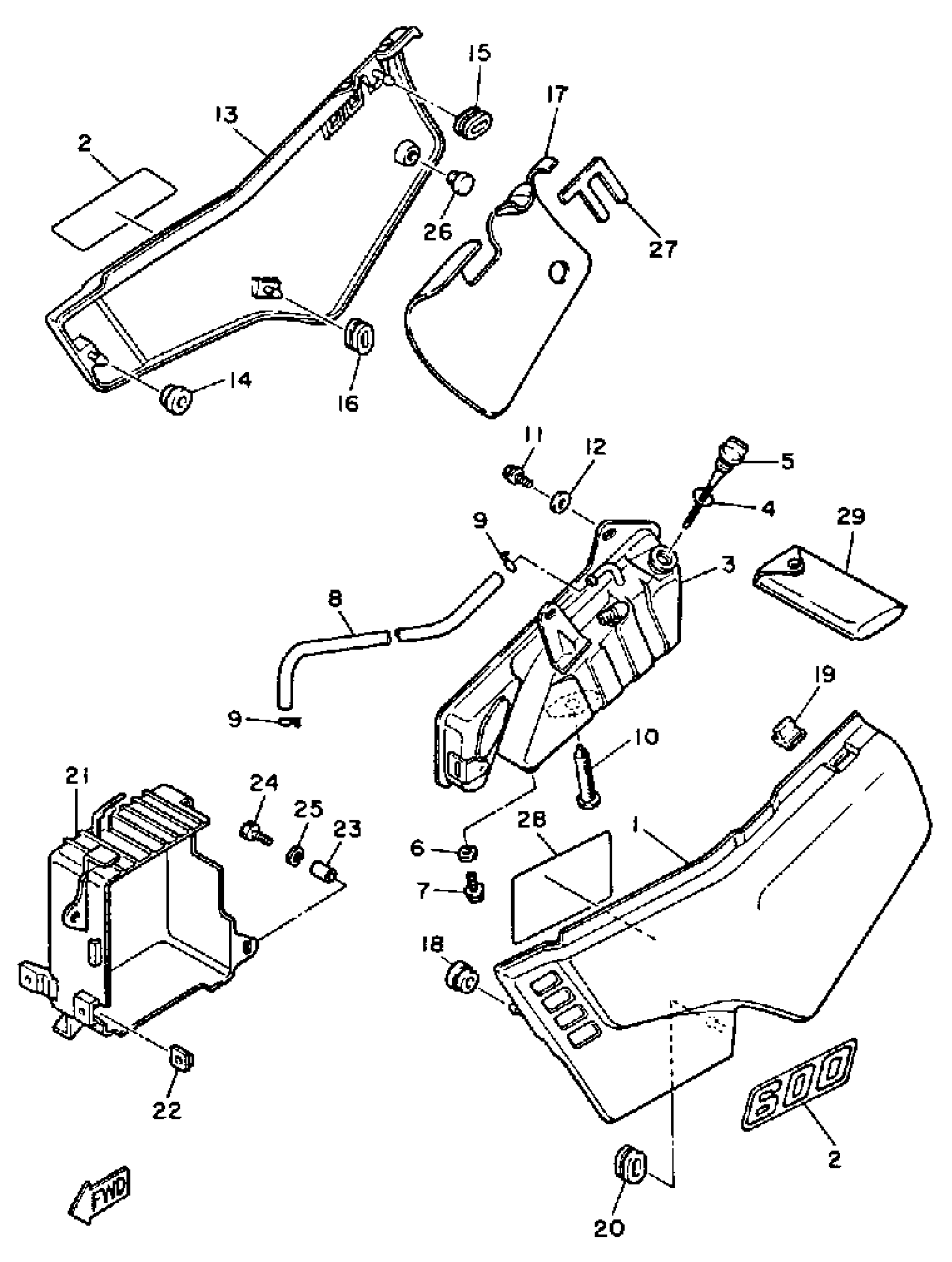

Yamaha XT600LC (XT600 CA) 1984 SIDE COVER - OIL TANK XT600LC - NC Diagram

#

Description
Price

1

COVER, SIDE 1

43F-21711-00-98

Unavailable

2

EMBLEM 1

49R-21781-00-00

Unavailable

3

OIL TANK ASSEMBLY

34L-21750-02-00

Unavailable

4

O-RING

93210-21190-00

$7.49

5

GAUGE, LEVEL

34L-21761-01-00

Unavailable

6

WASHER, PLATE 3411117500

90201-08087-00

$3.71

7

BOLT, FLANGE

95817-08012-00

$5.49

8

HOSE (L400)

90445-116K9-00

$24.99

9

CLIP

90467-100A1-00

$7.49

10

NET, FILTER

1VJ-21756-00-00

Unavailable

11

BOLT, FLANGE

95817-08012-00

$5.49

12

WASHER, PLATE (12X)

90201-087F0-00

$5.60

13

COVER, SIDE 2

43F-21721-00-98

Unavailable

14

GROMMET

90480-13014-00

$8.49

15

GROMMET(41Y)

90480-01401-00

$8.49

16

GROMMET(34L)

90480-01385-00

Unavailable

17

INSULATOR, SIDE CVR

43F-2174A-00-00

Unavailable

18

GROMMET

90480-13014-00

$8.49

19

GROMMET

43F-21773-00-00

Unavailable

20

GROMMET(34L)

90480-01385-00

Unavailable

21

BOX, BATTERY

34L-2177G-00-00

Unavailable

22

PLATE, CLNR CS FTNG

4H7-14484-00-00

Unavailable

23

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

STOPPER

30X-24768-00-00

Unavailable

26

STOPPER

30X-24768-00-00

Unavailable

27

INSULATOR,SIDE CVR

43F-2174A-11-00

Unavailable

27

INSULATOR,SIDE CVR

43F-2174A-11-00

Unavailable

28

PLATE, SPEC

(49R-21683-60-00)

Unavailable

28

PLATE, SPEC

(49R-21683-61-00)

Unavailable

29

TOOL KIT

1LN-W2810-01-00

Unavailable
