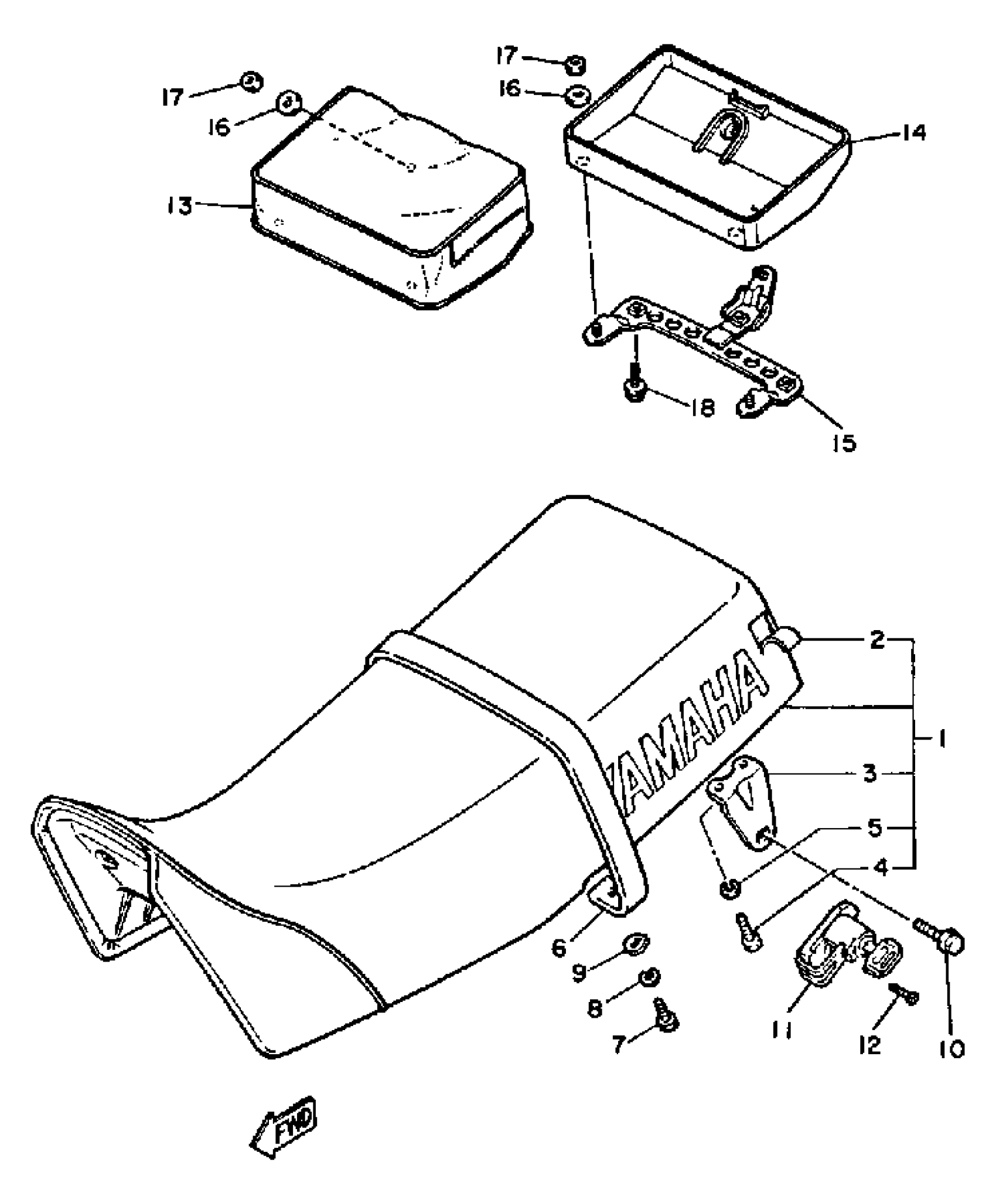

Yamaha XT600LC (XT600 CA) 1984 SEAT Diagram
#
Description
Price
1
SEMI-DBL SEAT ASSEMBLY
43F-24770-10-00
Unavailable
2
. COVER, DOUBLE SEAT
43F-24731-00-00
Unavailable
3
BRACKET, SEAT
43F-24738-00-00
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
6
BAND, SEAT
43F-24734-00-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
9
WASHER, WAVE
(90206-06765-00)
Unavailable
13
CARRIER BOX ASSEMBLY
33G-24850-00-00
Unavailable
14
BRACKET, CARRIER 2
33G-24833-00-00
Unavailable
15
STAY, DOCUMENT BOX
49R-24884-00-00
Unavailable
16
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
17
NUT(650)
95380-06700-00
Unavailable
18
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
