1984 Yamaha XT600 CA (XT600LC) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1984 Yamaha XT600 CA (XT600LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

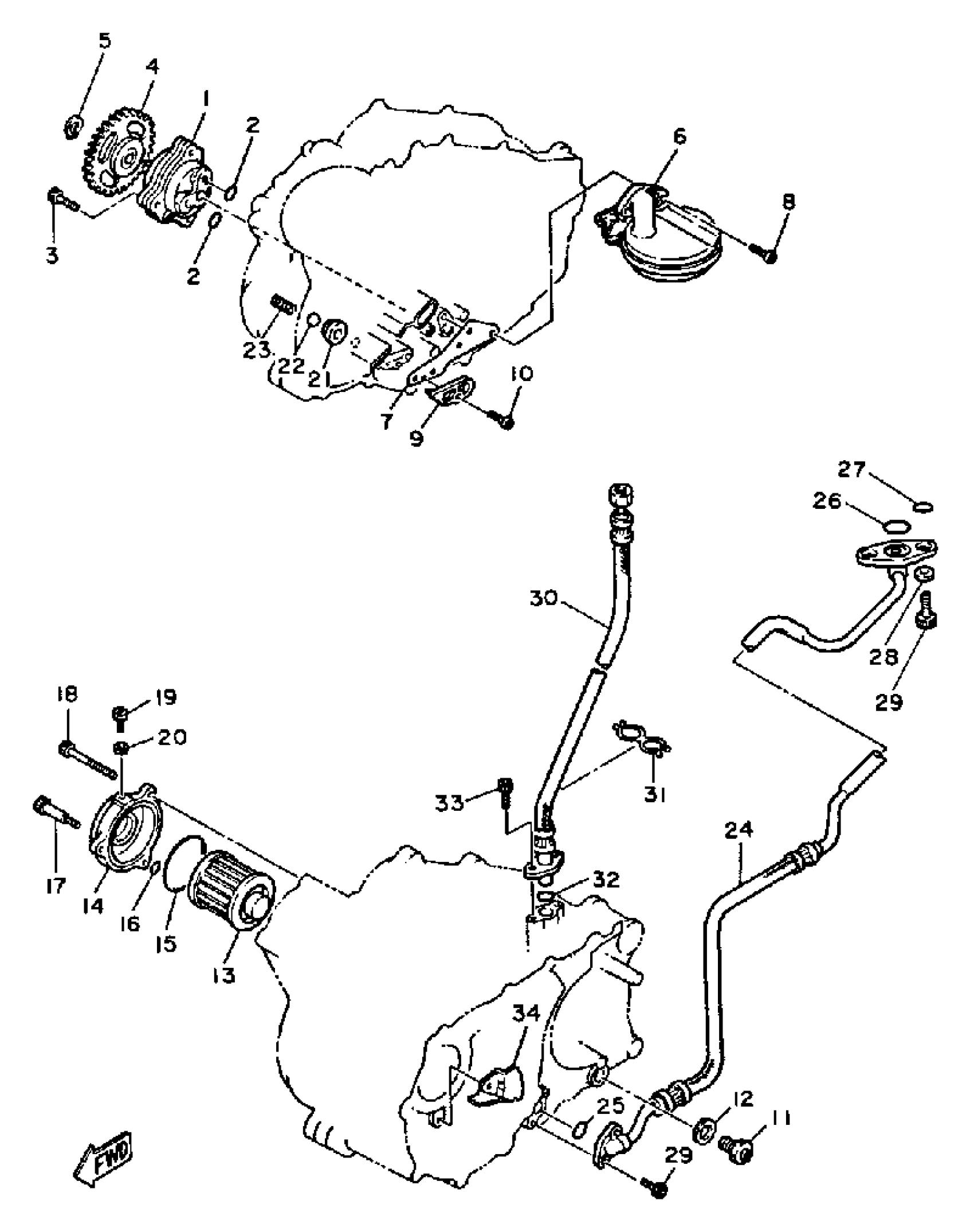

1984 Yamaha XT600 CA (XT600LC) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP KIT (3AJ)

99999-01858-00

1
Out of stock

2

O-RING (2H7)

93210-13361-00

1
Out of stock

3

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

4

OIL PUMP GEAR KIT

99999-01925-00

1
Out of stock

5

CIRCLIP(24H)

99009-11400-00

1

$6.17

In stock

6

STRAINER ASSY.

5Y1-Y134C-00-00

1
Out of stock

7

SEAL, OIL STRAINER

4DW-13415-00-00

—

$9.75

In stock

8

SCREW, PAN

98507-06014-00

1

$6.18

In stock

9

COVER, CAP 2

5Y1-15427-10-00

—
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

1

$2.65

In stock

12

GASKET

214-11198-01-00

1

$2.66

In stock

13

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

1

$12.82

In stock

14

COVER, OIL ELEMENT

583-13447-01-00

1

$24.32

In stock

15

O-RING (583 OIL CLEANER)

93210-64297-00

1
Out of stock

16

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

—
Out of stock

17

BOLT (583 OIL DRAIN)

90109-06419-00

—

$6.17

In stock

18

BOLT,SOCKET

91317-06080-00

—

$3.78

In stock

19

SCREW (583)

90149-05110-00

—

$6.88

In stock

20

GASKET

90430-05126-00

1
Out of stock

21

SEAT, CHECK BALL

583-13113-00-00

—
Out of stock

22

BALL

93503-08007-00

—

$2.35

In stock

23

SPRING (583 OIL CLEANER)

90501-05378-00

—
Out of stock

24

HOSE, OIL 1

2KF-13464-00-00

1
Out of stock

25

O-RING (371)

93210-10197-00

—
Out of stock

26

O-RING

93210-22298-00

—

$6.57

In stock

27

O-RING (1J7)

93210-09350-00

—

$5.82

In stock

28

GASKET (4V2)

90430-06166-00

—

$3.45

In stock

29

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

30

HOSE, OIL 2

43F-13465-00-00

1
Out of stock

31

CLAMP (34K)

90464-20064-00

—

$3.66

In stock

32

O-RING (341)

93210-15171-00

—
Out of stock

33

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

34

PLATE

5Y1-13371-00-00

1
Out of stock
