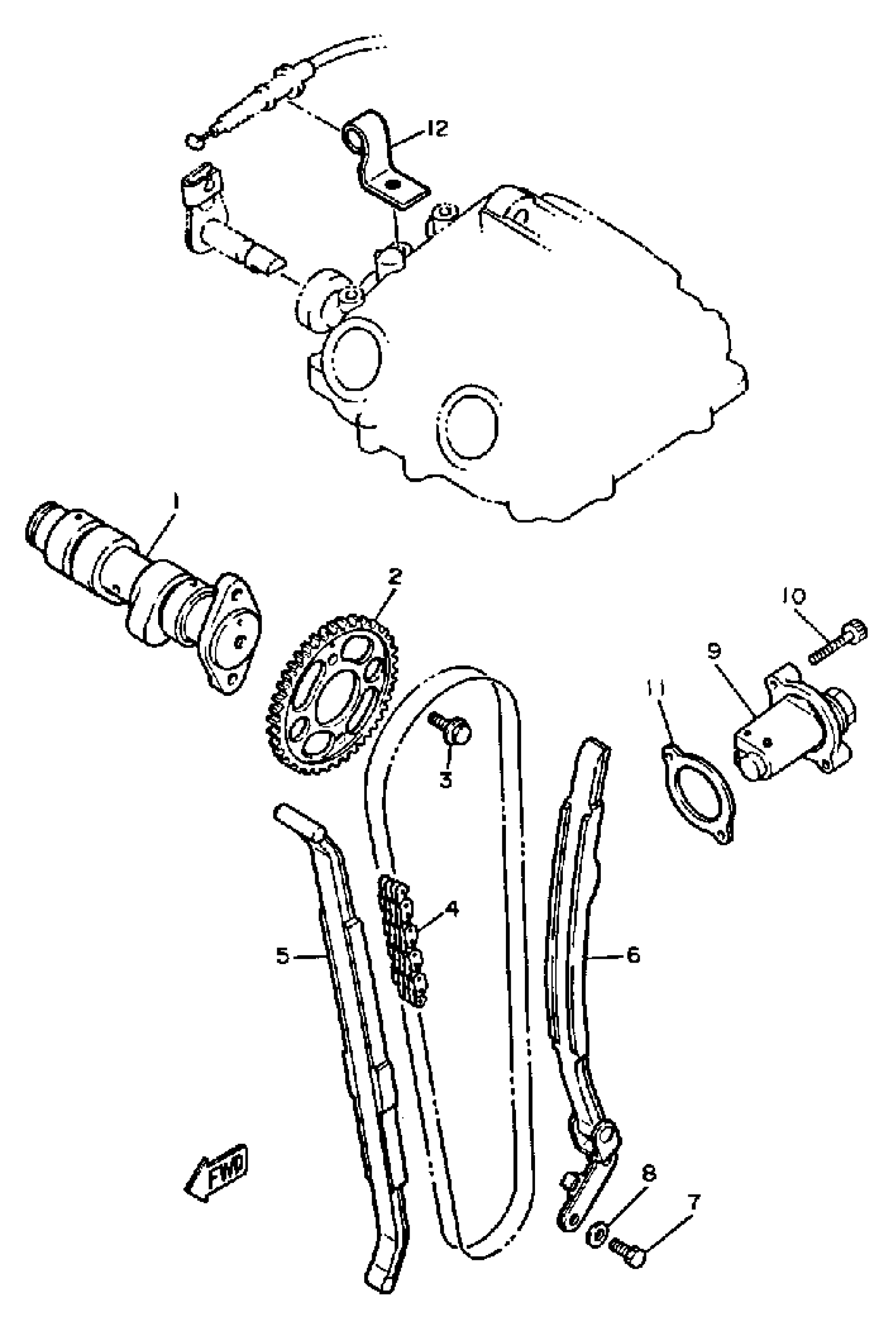

Yamaha XT600LC (XT600 CA) 1984 CAMSHAFT - CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSEMBLY 1

43F-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

34K-12176-00-00

Unavailable

3

BOLT, FLANGE

90105-07004-00

$4.66

4

CHAIN

94591-40126-00

$53.86

5

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

6

GUIDE, STOPPER 2

34K-12241-01-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

9

TENSNR ASSEMBLY, CAM CHN

34K-12210-00-00

Unavailable

10

BOLT,SOCKET

91317-06025-00

$1.91

11

GASKET, TENSIONER CASE

4DW-12213-00-00

$6.90

12

BRACKET, DCOMP (5Y1-12283-00)

1JK-12283-00-00

Unavailable
