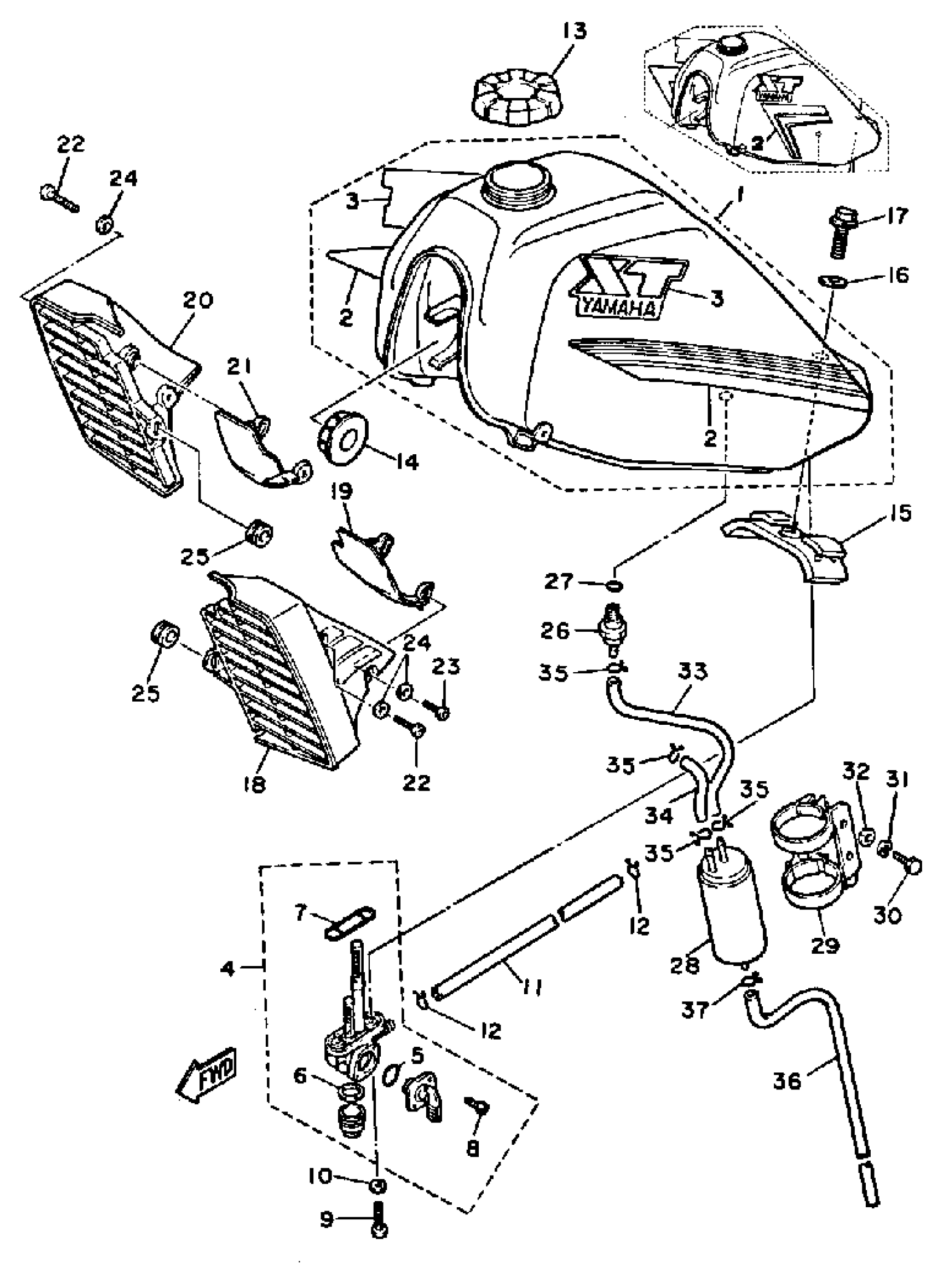

Yamaha XT600LC (XT600 CA) 1984 FUEL TANK XT600LC - NC Diagram

#

Description
Price

1

FUEL TANK

49R-24110-00-03

Unavailable

2

. GRAPHIC SET

49R-24240-00-00

Unavailable

2

. GRAPHIC SET

49R-24240-10-00

Unavailable

3

. EMBLEM 1

42U-24161-01-00

Unavailable

4

FUEL COCK ASSY 1

3FY-24500-01-00

$57.99

5

O-RING

4X8-24534-00-00

$13.49

6

GASKET

4X8-24565-10-00

$6.99

7

O-RING

4X8-24512-00-00

$8.99

8

SCREW

4X8-24535-00-00

$3.90

9

SCREW 256241430000

90149-06011-00

$5.60

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

HOSE (L200)

90445-10752-00

$4.99

12

CLIP

90467-090A2-00

$4.41

13

CAP ASSEMBLY

49R-24610-00-00

Unavailable

14

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

15

DAMPER, LOCATING 2

43F-24182-00-00

Unavailable

16

WASHER, SPEC''L SHAP

90209-07256-00

Unavailable

17

BOLT(3JP)

97017-06010-00

Unavailable

18

SCOOP, AIR 1

43F-2137W-00-00

Unavailable

19

GUIDE, AIR 1

43F-2137U-00-00

Unavailable

20

SCOOP, AIR 2

43F-2137X-00-00

Unavailable

21

GUIDE, AIR 2

43F-2137V-00-00

Unavailable

22

SCREW,SPEC'L SHAPE

90149-06315-00

Unavailable

23

SCREW(36F)

90149-06194-00

Unavailable

23

SCREW, SPEC''L SHAPE

90149-06200-00

Unavailable

24

WASHER, PLATE

90201-06380-00

Unavailable

25

GROMMET (1U6)

90480-08216-00

Unavailable

26

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

27

O-RING (4G0)

93210-11453-00

Unavailable

28

CANISTER ASSEMBLY

20K-24170-00-00

Unavailable

29

CANISTER HOLDER

(49R-24190-00-00)

Unavailable

30

BOLT, HEXAGON

97017-08016-00

Unavailable

31

WASHER(JN5)

92907-08100-00

Unavailable

32

WASHER(6TA)

92907-08600-00

Unavailable

33

HOSE (L590)

90445-10020-00

Unavailable

34

HOSE

90445-103A8-00

Unavailable

35

CLIP

90467-090A2-00

$4.41

36

PIPE, FUEL 1

(4A0-24311-00-00)

Unavailable

37

CLIP(1JH)

90467-11106-00

Unavailable
