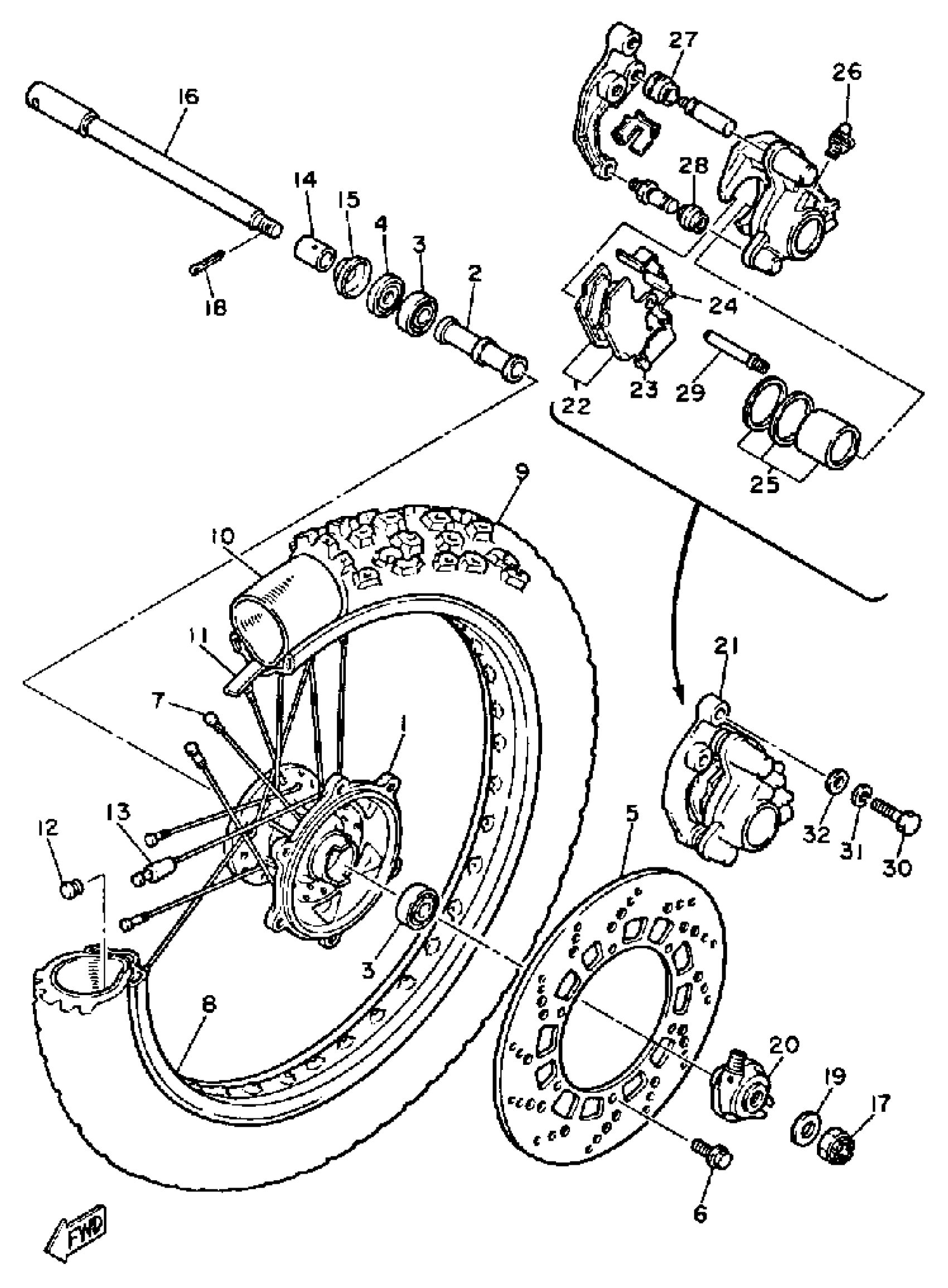

Yamaha XT600LC (XT600 CA) 1984 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

3TB-25111-00-98

Unavailable

2

SPACER (34L)

90560-15240-00

Unavailable

3

BEARING

93306-20205-00

$38.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

DISC, BRAKE RH

43F-25831-00-00

Unavailable

6

BOLT

90109-06757-00

Unavailable

7

RIM 1.60X21

94416-21396-00

Unavailable

8

SPOKE SET, FRONT

34L-25104-00-00

Unavailable

9

300-21 TW25 (TT)

94130-211N0-00

Unavailable

10

TUBE, FRONT (2A6)

94227-21123-00

$47.99

11

BAND, RIM (2A6)

94330-21084-00

$16.99

12

GROMMET (397)

90480-10068-00

$8.49

13

BALANCER, WHEEL

3HT-25398-00-00

$7.99

14

COLLAR (34L)

90387-152J3-00

$21.99

15

COVER, HUB DUST

322-25118-00-00

$17.49

16

. AXLE, WHEEL

43F-25181-00-00

Unavailable

17

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

18

PIN, COTTER

91490-30030-00

Unavailable

19

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

20

GEAR UNIT ASSY

34L-25190-01-00

Unavailable

21

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

22

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

23

. SHIM, CALIPER

11U-25827-10-00

Unavailable

24

. SUPPORT, PAD

34L-25919-00-00

Unavailable

25

PISTON ASSY, CALIPER

4X8-W0057-00-00

Unavailable

26

BLEED SCREW KIT

15B-W0048-00-00

Unavailable

27

BOOT

4X8-25917-00-00

Unavailable

28

BOOT 2

5R2-25937-00-00

Unavailable

29

PIN PAD

34L-25924-00-00

Unavailable

30

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

31

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

32

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable
